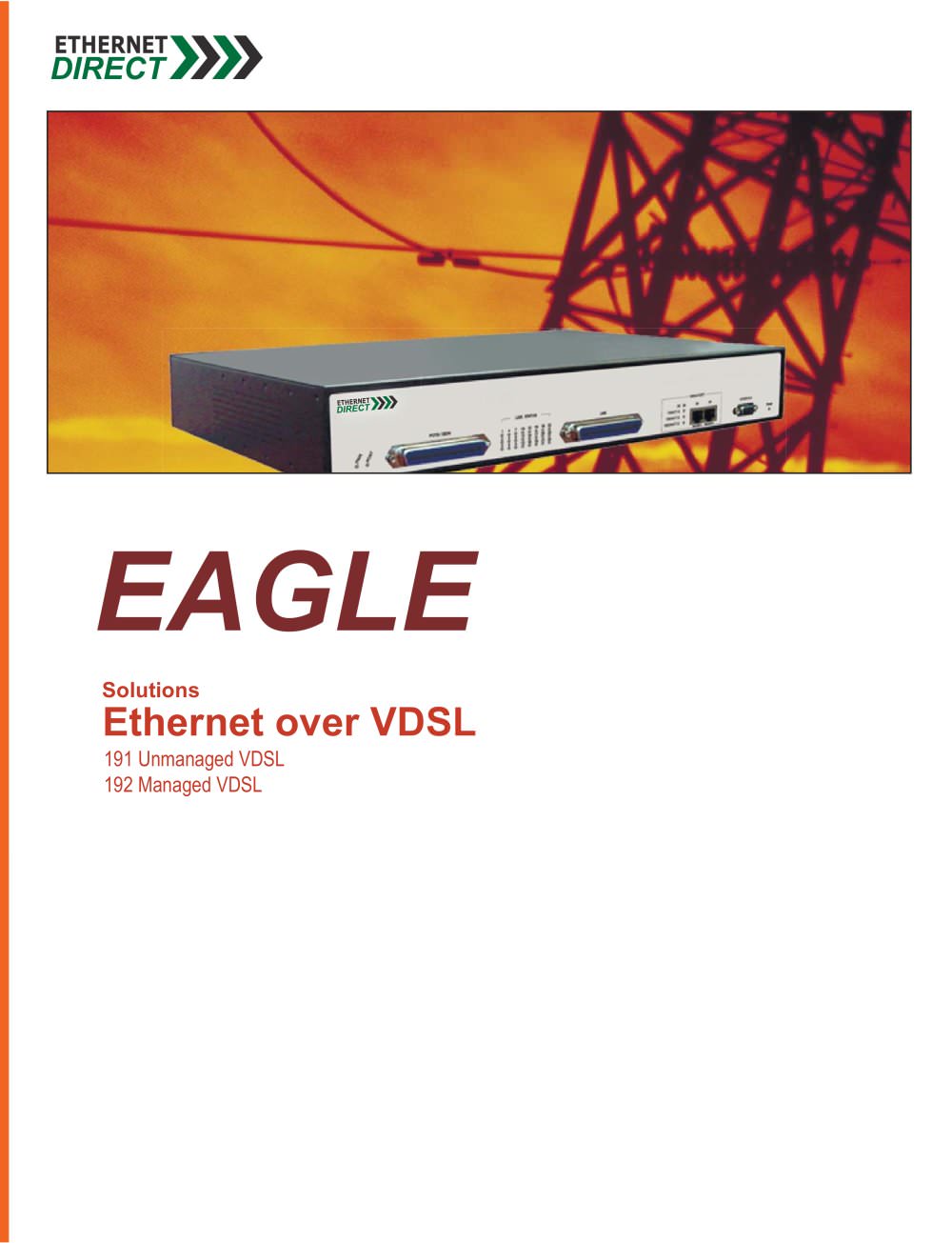

EAGLE Solutions Ethernet over VDSL 191 Unmanaged VDSL 192 Managed VDSL

Eagle Series Ethernet over VDSL Solutions VDSL is a DSL technology that provides faster data transmission over a single flat untwisted or twisted pair of copper wires. The fast speed of VDSL makes it possible to support high bandwidth applications such as HDTV, Voice over IP and general Internet access over just a single connection. VDSL is deployed over existing wiring used for POTS (Plain Old Telephone Service) and lower-speed DSL connections. Many industrial applications may require Ethernet Direct Eagle Series Ethernet over VDSL Solutions owing to the existing environment. These...

Open the catalog to page 2

LINK STATUS Etherenet over VDSL Solutions Ethernet over VDSL Device Dimensions GIGA PORT Managed 4Band VSDL IP DSLAM

Open the catalog to page 3

4 Band VDSL CO/CPE Modem Features ETSI, ITU, ANSI standards compliant Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 1 x 10/100Base-T(X) with RJ-45 connector Provides 1 x RJ-11 connector for VDSL Provides 1 x RJ-11 connector for telephone/PBX connection Auto speed and 25/15/5M fix mode selectable through DIP switch Long packet size up to 1536 bytes POTS/ISDN voice pass and 4wires phone set pass through Voice and Data run on the same telephone line Spectral compatibility with xDSL, ISDN (2B1Q/4B3T) Provides surge protection for VDSL ports Ethernet over VDSL Solutions EUE-111...

Open the catalog to page 4

VDSL2 CO/CPE Modem Features G993.2 VDSL2 standards compliant Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Provides 4 x 10/100Base-T(X) with RJ-45 connector Provides 1 x RJ-11 connector for VDSL2 Provides 1 x RJ-11 connector for POTS/ISDN device Auto speed for VDSL2 port Supports UPnP/PPPoE/NAT/DHCP/DMZ/Firewall Supports Router & Switch (Bridge) mode Supports loop back SNR indicator for checking phone wire quality Interleave delay for data error and against noise Provides surge protection for VDSL2 port Supports Web/Console (RS-232C) management Hardware Specifications Interface Total...

Open the catalog to page 5

4 Band VDSL 24-port Managed IP DSLAM with 2 Gigabit Ports Features Bandwidth management (speed rate control) from 100K to 5M/15M/25Mbps for VDSL port with long driver capable up to 1.7/1.1/0.6km (5666/3666/1999 feet) Complies with IEEE standards Provides 24 x VDSL connections with RJ-11 connector (EC-2124 cable needed) Provides 24 x POTS/ISDN connection with RJ-11 connector (EC-2124 cable needed) Provides 2 x 10/100/1000Base-T(X) with RJ-45 connector QoS/IGMP snooping/querier Port Trunking/STP/RSTP Port Mirroring/Access Control Supports web base and Telnet for remote management SNMP v1...

Open the catalog to page 6

4 Band VDSL 24-port Managed IP DSLAM with 2 Gigabit Ports Management Specifications Redundancy: STP Management: SNMP/Web/Telnet/CLI management MIB: SNMP MIB, MIBII, SNMP V2 MIB, Bridge MIB, VLAN MIB, Trap MIB, Ethernet like MIB, RMON1 MIB Port Trunk: IEEE802.3ad with LACP function VLAN: Port based VLAN and Tag VLAN (256 entries) VID: 1 to 4094 GVRP groups up to 256 Static VLAN groups up to 256 QoS: Port based and IEEE 802.1p QoS determined by port, per port 4 queues Tag and IPv4 ToS IGMP: IGMP v1 and v2 snooping IIGMP groups up to 256 Security: Remote Access Security: IEEE802.1X/RADIUS Port...

Open the catalog to page 7
