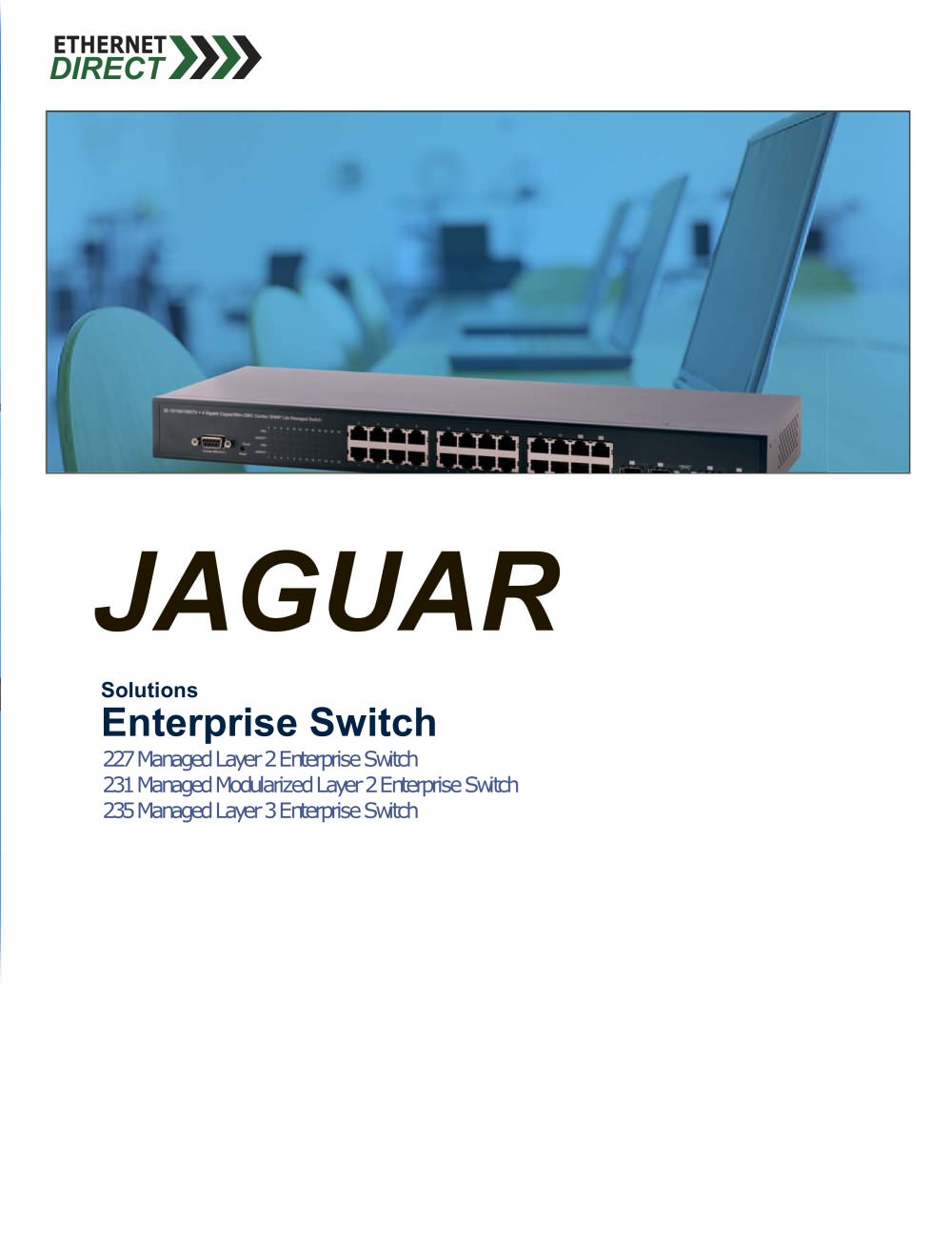

JAGUAR Enterprise Switch 227 Managed Layer 2 Enterprise Switch 231 Managed Modularized Layer 2 Enterprise Switch 235 Managed Layer 3 Enterprise Switch Solutions
Open the catalog to page 1![Enterprise Switch Solutions - 2](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_2m.jpg)
ED Enterprise Switch Solutions Jaguar Series Enterprise Switch Solutions Local-area network (LAN) switches are used as the core of all networks to provide high-speed connectivity & applications. The increasing number of Ethernet devices on the plant floor brings a greater amount of communication that consumes the available bandwidth. Data from the plant floor will feed up to SCADA and Enterprise systems, while application servers will provide distributed information down to coordinate automation systems. Multicast messages and peer to peer synchronization will generate additional traffic as...
Open the catalog to page 2![Enterprise Switch Solutions - 4](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_4m.jpg)
ED Enterprise Switch Solutions Layer 2 Web-managed Enterprise Switch Selection Guide Number of Ports 10/100Base-T(X) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Power Input VDC IP Protection Operating Temperature Software Regulatory Approvals STP/RSTP DHCP LLDP SNMP/RMON IGMP Port Trunking IEEE 802.1X User Authentication (Radius) VLAN/GVRP QoS CE/FCC UL/cUL 60950-1 UL 508 Class 1 Division 2 100-240VAC Server/Client JME-24F2 24 x 10/100Base-T(X)+ 2 combo ports Web-managed Enterprise Switch Model...
Open the catalog to page 4![Enterprise Switch Solutions - 5](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_5m.jpg)
ED 224 Layer 2 Modular Managed Enterprise Switch Selection Guide Enterprise Switch Solutions Number of Ports 10/100Base-T(X) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) Power Input VDC IP Protection Operating Temperature Software Regulatory Approvals STP/RSTP DHCP LLDP SNMP/RMON IGMP Port Trunking IEEE 802.1X User Authentication (Radius) VLAN/GVRP QoS CE/FCC UL/cUL 60950-1 UL 508 Class 1 Division 2 Model Hardware 10/100/1000Base-T(X) 100-240VAC Server/Client JME-2400M 24-port Modular Managed...
Open the catalog to page 5![Enterprise Switch Solutions - 6](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_6m.jpg)
ED Enterprise Switch Solutions Layer 3 Managed Enterprise Switch Selection Guide Number of Ports 10/100Base-T(X) Multi-mode 100Base-FX Single-mode 100Base-FX Multi-mode 1000Base-SX Single-mode 1000Base-LX SFP Module Combo Ports (1000TX or SFP module) 10G XFP slot Power Input VDC Stackable IP Protection Operating Temperature STP/RSTP DHCP LLDP SNMP/RMON IGMP Port Trunking IEEE 802.1X User Authentication (Radius) VLAN/GVRP QoS 100-240VAC by software Server/Client JMG-3628 24 x 10/100Base-T(X) + 2 x 10/100/1000Base-T(X) + 2 x Gigabit SFP Managed Layer 3 Enterprise Switch Model v1/v2c/v3 24 2 4...
Open the catalog to page 6![Enterprise Switch Solutions - 7](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_7m.jpg)
ED 226 Layer 3 Managed Enterprise Switch Selection Guide Enterprise Switch Solutions Layer 3 Function ARP RIPv1/RIPv2 OSPF DVMRP, PIM-DM, PIM-SM VRRP Policy based routing DHCP/BooP Relay IPv6 compatible CE/FCC VCCI CSA/NRTL(UL60950, CSA 22.2.No 60950-00) TUV/GS(EN60950) CB Model JMG-3628 Regulatory Approvals Multi-netting, Super-netting JMG-4626 JMG-4650 24 x 10/100Base-T(X) + 2 x 10/100/1000Base-T(X) + 2 x Gigabit SFP Managed Layer 3 Enterprise Switch 20 x 10/100/1000Base-T(X) + 4 x combo ports + 2 x 10G Uplink I/O Stackable Gigabit Managed Layer 3 Enterprise Switch 44 x...
Open the catalog to page 7![Enterprise Switch Solutions - 8](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_8m.jpg)
ED JMG-24F4 The Jaguar Series JMG-24F4 is a high performance Web-managed Enterprise Switch that offers a reliable connection to the network backbone and can interconnect a number of workgroup users in a typical network environment. It has twenty four 10/100/1000Base-T(X) RJ-45 ports and four small form pluggable (SFP) ports that support Gigabit SX or LC depending on your existing network structure. JMG-24F4 provides powerful features to leverage your existing investment and supports IEEE standards. It supports mission critical features such as RSTP, STP, QoS, VLAN, DHCP, Port Mirror, IP...
Open the catalog to page 8![Enterprise Switch Solutions - 9](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_9m.jpg)
ED 228 Enterprise Switch Solutions Ordering Information JMG-24F4 20 x 10/100/1000Base-T(X) and 4 Combo Ports (10/100/1000Base-T(X) or 1000Base SFP slot) Gigabit Web-managed Enterprise Switch, 0 to 50°C 24-port Gigabit Web-managed Enterprise Switch with Fiber Ports Redundancy: STP, RSTP Management: SNMP/Web/Telnet/CLI management TFTP backup/restore configurations MIB: SNMP MIB, MIBII, SNMP V2 MIB, Bridge MIB, VLAN MIB, Trap MIB, Ethernet like MIB, RSTP MIB SNMP Trap: 1 SNMP trap destination Port Trunk: IEEE802.3ad with LACP function Max. 12 trunk groups Max. 4 ports per group VLAN: Port...
Open the catalog to page 9![Enterprise Switch Solutions - 10](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_10m.jpg)
ED JME-24F2 The Jaguar Series JME-24F2 is a high performance Web-managed Enterprise Switch that offers a reliable connection to the network backbone and can interconnect a number of workgroup users in a typical network environment. It has twenty four 10/100Base-T(X) RJ-45 ports and two SFP/copper combo ports that support gigabit SX or LX depending on your existing network structure. JME-24F2 provides powerful features to leverage your existing investment and complies with IEEE specifications. It also supports advanced management features such as RSTP, STP, X-Ring*, VLAN, RMON, DHCP, Port...
Open the catalog to page 10![Enterprise Switch Solutions - 11](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_11m.jpg)
ED 230 Enterprise Switch Solutions Ordering Information JME-24F2 24 x 10/100Base-T(X) and 2 x Combo Ports (10/100/1000Base-T(X) or 100/1000Base SFP slot) Web-managed Enterprise Switch, 0 to 50°C 26-port Web-managed Enterprise Switch with Fiber Ports Redundancy: STP, RSTP, X-Ring* Management: SNMP/Web/Telnet/CLI management TFTP backup/restore configurations MIB: SNMP MIB, Bridge MIB, VLAN MIB, Trap MIB, Ethernet like MIB, RSTP MIB SNMP Trap: 1 SNMP trap destination Port Trunk: Max. 13 trunk groups Max. 4 ports per group (including 2 uplink ports) VLAN: Port based VLAN and Tag VLAN (256...
Open the catalog to page 11![Enterprise Switch Solutions - 12](https://img.directindustry.com/pdf/repository_di/39231/enterprise-switch-solutions-134859_12m.jpg)
ED JME-2400M The Jaguar Series JME-2400M is a new generation Modular Managed Enterprise Switch with an optimized platform which offers a flexible, cost-effective LAN solution with high quality and reliability in 10/100Base-T(X) scalable solutions that integrate easily into any network over twisted pair and fiber optic cables. JME-2400M comes with a hot swappable three-slot modular design for low cost of ownership. It allows different optional modules like 8-port 10/100Base-T(X) modules with RJ-45 connector, 8-port 100Mbps multi-mode fiber modules with SC connector, 8-port 100Mbps...
