Overview: The document details the Rhino Series Industrial Embedded Network Appliance Solutions, designed for industrial applications such as video, POS systems, kiosks, and embedded gaming. These appliances feature a robust, fan-less design and include both Windows-based and RISC-based models.

Specifications: The Rhino series offers various models with different processors (Intel® Pentium® M, Celeron® M, Core™ 2 Duo, AMD Geode™), memory capacities up to 4GB DDR2, and multiple I/O interfaces. They support Ethernet, USB ports, and expansion slots, with options for GPS and wireless connectivity.

Procedures and Standards: The appliances comply with industrial standards and certifications like CE/FCC and eMark for automotive applications. They are designed to operate in diverse temperature and humidity conditions, ensuring reliability in mission-critical applications.

Recommendations: Model selection should be based on application needs such as memory, I/O interfaces, and environmental conditions. The Rhino-220IL is recommended for control networks, while the Rhino 600 Series is suited for transportation due to enhanced vibration protection.

Key Features: Key features include a fan-less design, rugged aluminum chassis, ATX power supply support, and versatile connection options with multiple serial and Ethernet ports.

Data Summary: The document includes tables comparing models, highlighting CPU options, memory capacities, storage, and expansion capabilities for quick reference.

Model Details:

Rhino-120: AMD Geode LX800 processor, fan-less, up to 1GB DDR memory, suitable for embedded computing.
Rhino-150e: Intel Pentium M/Celeron M processors, up to 2GB DDR2 memory, designed for industrial reliability.
Rhino-200: AMD Geode LX800 CPU, flexible I/O options, robust for industrial applications.
Rhino-220: Intel Celeron M processor, enhanced memory and storage, high-reliability applications.
Rhino-220IL: Pre-installed IntraVUE Lite software, ideal for remote network management.
Rhino-200A: Intel Atom N270 processor, eMark certified, optimized for vehicular applications.

Common Features: All models are CE/FCC certified, come with a 3-year warranty, and are designed for easy maintenance and reliability in harsh environments.

Additional Models:

Rhino-600A: Intel Atom Z500 series CPU, PCI-104 expansion slots, wide temperature range.
Rhino-610A: Intel Atom N270 processor, optional IP-65 enclosure, robust performance.
Rhino-142: RISC-based, ARM9 CPU, Linux compatible, wide power input range.
Rhino-242: Similar to Rhino-142, with additional Ethernet and GPIO ports.

Certifications and Warranty: All models are CE/FCC certified with a 2 to 3-year warranty, ensuring compliance and reliability.

Catalog excerpts

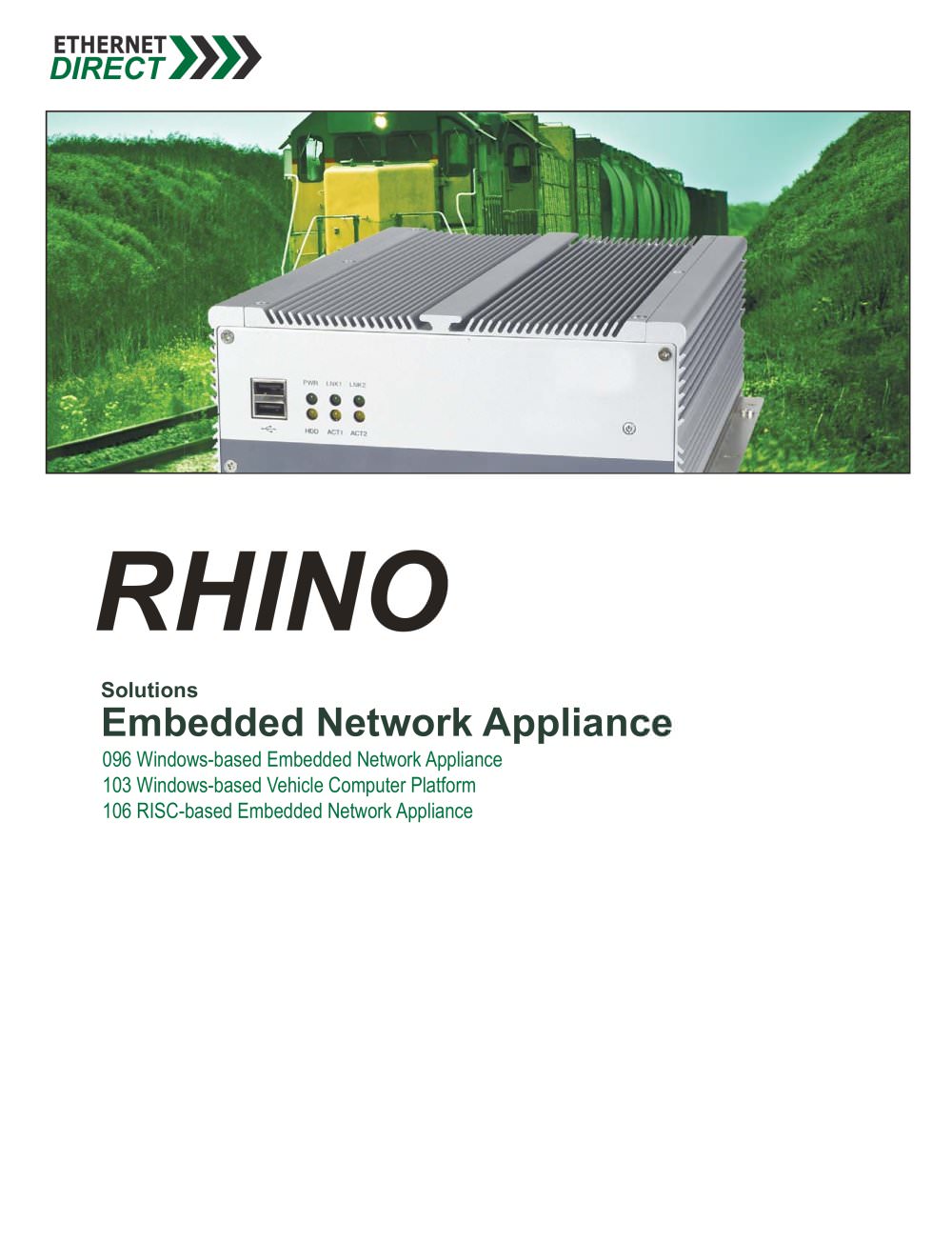

RHINO Solutions Embedded Network Appliance 096 Windows-based Embedded Network Appliance 103 Windows-based Vehicle Computer Platform 106 RISC-based Embedded Network Appliance

Open the catalog to page 1

Rhino Series Industrial Embedded Network Appliance Solutions Embedded system is a special-purpose computer designed to perform dedicated functions used in industrial applications. Ethernet applications in the industrial marketplace are continually evolving. Shifting from traditional IT-based high level communications to real-time applications in separate and isolated networks, Ethernet support by local resources is now becoming more important. Ethernet Direct Rhino Series Industrial Embedded Platform is designed for flexible deployment in any applications and come with robust fan-less design,...

Open the catalog to page 2

Windows-based Embedded Network Appliance Selection Guide Rhino-100e Industrial PC/Intel® Pentium® M/Celeron® M Fan-less System with PCI Expansion Slot Industrial PC/Intel® Core™ 2 Duo, Core Duo, Celeron® M Fan-less System with PCI Expansion Slot Industrial PC/AMD Geode™ LX800 Fan-less System with IEEE 1394, Mini-PCI and PCI104 Expansion Slot Industrial PC/Intel® Pentium® M/Celeron® M Fan-less System with DVD Combo and Parallel Port Intel® Pentium® M/Celeron® M Intel® Core 2 Duo, Core Duo, Celeron® M Intel® Pentium® M/Celeron® M Main Board CPU Chipset Max.Memory Storage & Expansion HDD CF Socket...

Open the catalog to page 3

Windows-based Embedded Network Appliance Selection Guide Industrial PC/AMD Geode™ LX800 Fan-less System with NVRAM and PCMCIA Industrial PC/Intel® Celeron® M Fan-less System with NVRAM and PCMCIA Fanless Industrial PC/Intel® Celeron® M Fan-less System with NVRAM/RS-422/485 Main Board Max.Memory Storage & Expansion ED Industrial Embedded Networking Appliance Solutions Expansion Upgrade Expansion Kit Parallel Port DVI Interface LVDS Interface TV-out IEEE 1394 Interface NVRAM LAN Ports Audio In/Out Support SIM Card Socket Other Functions GPIO GPS 3.5G Wireless Bluetooth Hardware Power Input Power...

Open the catalog to page 4

Windows-based Vehicle Computer Platform Selection Guide Industrial Vehicle PC/Intel® Atom™ N270 1.6GHz Processor with 1GB RAM & GPS (GPS module & antenna included) Industrial Vehicle PC/Intel® Atom™ Z500 Series Processor with 1GB RAM & GPS (GPS module & antenna included) Industrial Vehicle PC/Intel® Atom™ N270 1.6GHz Processor with 1GB RAM & GPS (GPS module & antenna included) Main Board CPU Chipset Max.Memory Storage & Expansion HDD CF Socket Upgrade Expansion Kit Interface VGA Interface LVDS Interface IEEE 1394 Interface USB Ports Industrial Embedded Networking Appliance Solutions Parallel...

Open the catalog to page 5

RISC-based Embedded Network Appliance Selection Guide RISC-based Embedded Linux Computer with 1 LAN, 4 TTY and 2 USB RISC-based Embedded Linux Computer with 2 LAN, 4 TTY, 2 USB and 21 pins GPIO RISC-based Embedded Linux Computer with 2 LAN, 8 TTY, 2 USB, 21 pins GPIO and Audio Out Serial Ports Power Consumption Operating Temperature Boot Loader File Systems IPv4, ICMP, ARP, DHCP, NTP, TCP, UDP, FTP, Telnet, HTTP, PPP, PPPoE, CHAP, PAP, SMTP, SNMP v1/v2, SSL, SSH 1.0/2.0 IPv4, ICMP, ARP, DHCP, NTP, TCP, UDP, FTP, Telnet, HTTP, PPP, PPPoE, CHAP, PAP, SMTP, SNMP v1/v2, SSL, SSH 1.0/2.0 IPv4, ICMP,...

Open the catalog to page 6

Industrial Network Appliance Features Supports Intel® Pentium® M or Celeron® M processors with 400MHz FSB Designed with Intel 910GMLE and ICH6-M chipset for reliability 2 x 10/100/1000Base-T(X) Ethernet with RJ-45 connectors 3 x RS-232 and 1 x RS-232/422/485 serial interfaces via DB44 connector Equipped with USB 2.0/VGA/DVI-D interfaces On board DC to DC power design supporting 16 to 30VDC Supports ATX power mode and PXE/WOL 1 x PCI expansion slot Hardware Specifications CPU & Memory Main Board: Intel® Pentium® M or Celeron® M Processors up to 1.8GHz Low Voltage and Ultra Low Voltage Intel® Pentium®...

Open the catalog to page 7

Industrial Network Appliance Features SupportsIntel® Core™ 2 Duo, Core Duo or Celeron® M family processors 533/667 MHz FSB CPU Designed with Intel 945GME and ICH7-M chipset for reliability 2 x 10/100/1000Base-T(X) Ethernet with RJ-45 connectors 3 x RS-232 and 1 x RS-232/422/485 serial interfaces via DB44 connector Equipped with USB 2.0/VGA/DVI interfaces On board DC to DC power design supporting 12 to 30VDC Supports ATX power mode and PXE/WOL 1 x PCI expansion slot Industrial Embedded Networking Appliance Solutions The Rhino Series Rhino-110 is an Industrial Network Appliance (embedded computer)...

Open the catalog to page 8

Industrial Network Appliance Features Supports AMD Geode™ LX800 400/500MHz with 128KB L2 cache 2 x 10/100Base-T(X) Ethernet with RJ-45 connectors Equipped with USB 2.0/VGA/IEEE 1394/Audio out interface 4 x RS-232 serial interfaces 1 x on-board Mini-PCI socket for Wireless LAN 1 x PCI104 expansion slot Hardware Specifications CPU & Memory Main Board: AMD Geode™ LX800 500MHz with 128KB L2 cache AMD Geode™ CS5536 companion chip Memory: 1 x 184-pin non-ECC non-registered DDR DIMM, Max up to 1GB 1 x IEEE 1394 connector 2 x 10/100Base-T(X) Ethernet with RJ-45 connectors 1 x VGA connector (DB15-female)...

Open the catalog to page 9

Industrial Network Appliance Features Supports Intel® Pentium® M or Celeron® M processors with 400MHz FSB Designed with Intel 910GMLE and ICH6-M chipset for reliability 2 x 10/100/1000Base-T(X) Ethernet with RJ-45 connectors 3 x RS-232 and 1 x RS-232/422/485 serial interfaces via DB44 connector Equipped with USB 2.0/VGA/DVI/Parallel interfaces 1 x Slim DVD combo On board DC to DC Power design supporting 16 to 30VDC Supports ATX power mode and PXE/WOL Industrial Embedded Networking Appliance Applications The Rhino Series Rhino-150e is an Industrial Network Appliance (embedded computer) featuring...

Open the catalog to page 10

Industrial Network Appliance Features Supports AMD Geode™ LX800 CPU 2 x 10/100Base-T(X) Ethernet with RJ-45 connectors Equipped with USB 2.0/VGA/Parallel interface 2 x RS-232 serial interfaces 2 x RS-422/485 interfaces supports automatic flow control and isolation 1 x Type I/II PCMCIA slot Optional expansion kit for PC/104(ISA), PCI104 (PCI) or PC/104 Plus module Hardware Specifications CPU & Memory Main Board: ETX Module with AMD LX800 Processor Memory: 1 x 200-pin SODIMM socket for up to 1GB non-ECC non-registered DDR SDRAM memory Storage & Expansion Storage: 1 x On-board internal compact flash...
