Overview of Accessories and Solutions

This document outlines the specifications and features of Small Form Pluggable (SFP) modules and DIN Rail Power Supplies, focusing on compliance with industry standards, technical specifications, and environmental conditions for optimal performance.

Small Form Pluggable (SFP) Modules

Compliance and Standards: SFP modules adhere to IEEE 802.3z Gigabit Ethernet and IEEE 802.3u Fast Ethernet standards, available in single-mode and multi-mode versions, and comply with Fiber Channel standards.
Features: These modules are hot-swappable, support data speeds up to 5 Gbps, and offer cost-effective maintenance and upgrades due to their modular nature.
Specifications: Models vary in wavelengths, power outputs, and temperature ranges, suitable for distances from 2 km to 110 km.

DIN Rail Power Supplies

General Features: These power supplies feature universal AC input, and protections against short circuit, overload, over voltage, and over temperature. They are designed for DIN-Rail TS-35/7.5 or 15 installation and come with a 3-year warranty.
Environmental Conditions: Operating temperatures range from -10°C to 70°C, with storage temperatures from -20°C to 85°C, suitable for non-condensing humidity levels of 20% to 90%.
Regulatory Approvals: They meet safety standards such as UL508 and TUV EN60950-1, and EMI standards like EN55011 and EN55022.
Models and Specifications: Various models like DR-45, DR-75, DR-120, DRP-240, DRP-480, and DRT-960 series are detailed, each with specific voltage, current, and power ratings, efficiency levels, and dimensions.

Key Takeaways

SFP modules provide flexibility and cost savings in network maintenance and upgrades.
DIN Rail Power Supplies offer robust protection features and comply with multiple safety and EMI standards, ensuring reliable performance in industrial environments.

Electrical Specifications for DIN-Rail Power Supplies

Voltage and Current: Models offer DC voltages from 5V to 48V with varying current capacities, e.g., MDR-2005 provides 5V at 3A, while MDR-4048 offers 48V at 0.83A.
Power and Efficiency: Power ratings range from 15W to 40.8W, with efficiency levels between 76% and 84% depending on the model.
Input Characteristics: Universal AC input with a voltage range of 85-264VAC and frequency range of 47-63Hz, including inrush and leakage current specifications.
Output Characteristics: Includes ripple and noise levels, voltage adjustment range, and load regulation details.

Hardware and Installation

Dimensions: Standard dimensions for installation on DIN rail TS35/7.5 or TS35/15.
Cooling: Cooled by free air convection.
Indicators: LED indicator for power on and DC OK relay contact.

Environmental Conditions

Operating Temperature: Ranges from -20 to 70°C.
Storage Temperature: Ranges from -40 to 85°C.
Humidity: Operating humidity is 20% to 90% RH, non-condensing.

Regulatory Approvals

Safety: Complies with UL508 and TUV EN60950-1 standards.
EMI and EMS: Meets standards such as EN55011, EN55022, EN61000-3-2, and EN61000-4 series.

Protection Features

Includes short circuit, overload, over voltage, and over temperature protections.

Additional Features

100% full load burn-in test.
No load power consumption is less than 0.75W.
3 years warranty.

Catalog excerpts

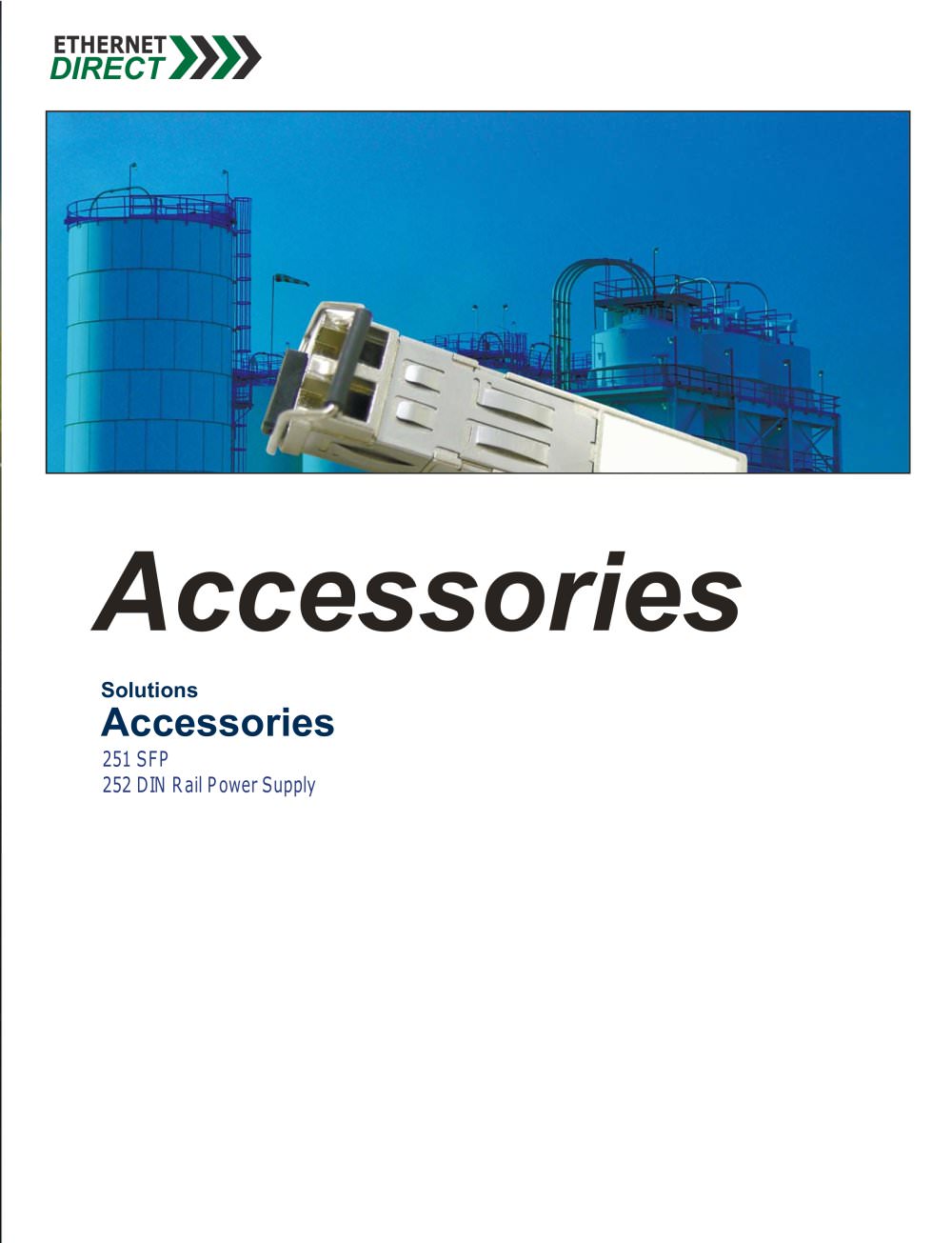

Accessories Solutions Accessories 251 SFP 252 DIN Rail Power Supply

Open the catalog to page 1

Small Form Pluggable Features Compliant with IEEE 802.3z Gigabit Ethernet Standard Complies with IEEE 802.3u 100Base-T(X) Fast Ethernet Single-mode LX versions are compliant with Fiber Channel 100-SM-LC-L standard Multi-mode SX versions are compliant with Fiber Channel 100-M5-SN-I and 100-M6-SN-I Industry standard small form pluggable (SFP) package Duplex LC connector Differential LVPECL inputs and outputs Single power supply 3.3V TTL signal detecting indicator Class 1 laser product complies with EN 60825-1 Small Form Pluggable (SFP) is a specification for a new generation of optical modular...

Open the catalog to page 2

DIN-Rail Power Supplies Features Universal AC input/Full range Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved LED indicator for power on 100% full load burn-in test Fix switching frequency at 100KHz 3 years warranty Terminal Pin No. Assignment Assignment DC OUTPUT+V LED +V ADJ. Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance Line Regulation Load Regulation Setup, Rise Time...

Open the catalog to page 3

DIN-Rail Power Supplies Features Universal AC input/Full range Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved LED indicator for power on. 100% full load burn-in test Fix switching frequency at 100KHz 3 years warranty Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance Line Regulation Load Regulation Setup, Rise Time Hold up Time 1000ms, 60ms/230VAC 1800ms, 60ms/115VAC at full...

Open the catalog to page 4

DIN-Rail Power Supplies Features AC input range selectable by switch Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved LED indicator for power on. 100% full load burn-in test Fix switching frequency at 100KHz 3 years warranty Assignment DC OUTPUT +V DC OUTPUT -V Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance Line Regulation Load Regulation Setup, Rise Time Hold up Time 500ms,...

Open the catalog to page 5

DIN-Rail Power Supplies Features Universal AC input/Full range Built in active PFC function Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved LED indicator for power on. 100% full load burn-in test Fix switching frequency at 100KHz 3 years warranty Terminal Pin Number Assignment (TB1) Terminal Pin Number Assignment (TB2) TB1 Assignment DC OUTPUT +V DC OUTPUT -V Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise...

Open the catalog to page 6

DIN-Rail Power Supplies Features Built in passive PFC function compliant to EN61000-3-2 High efficiency 89% and low dissipation Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Built in constant current limiting circuit Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved EN61000-6-2 (EN50082-2) industrial immunity level 100% full load burn-in test 3 years warranty Assignment AC/L(DC+) AC/N(DC-) FG Assignment DC OUTPUT +V DC OUTPUT -V Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate...

Open the catalog to page 7

DIN-Rail Power Supplies Features Three-Phase AC 340-550V wide range input High efficiency 91% and low dissipation Protections: Short circuit/Overload/Over voltage/Over temp. Optional parallel function (1+1) Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 UL 508 (industrial control equipment) approved EN61000-6-2 (EN50082-2) industrial immunity level 100% full load burn-in test 3 years warranty Assignment DC OUTPUT +V DC OUTPUT -V Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance...

Open the catalog to page 8

DIN-Rail Power Supplies Features Universal AC input/Full range Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 Built in DC OK active signal UL 508 (industrial control equipment) approved LED indicator for power on 100% full load burn-in test No load power consumption < 0.75W 3 years warranty Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance Line Regulation Load Regulation Setup, Rise Time Hold up Time 500ms, 30ms/230VAC...

Open the catalog to page 9

DIN-Rail Power Supplies Features Universal AC input/Full range Protections: Short circuit/Overload/Over voltage/Over temp. Cooling by free air convection Can be installed on DIN-Rail TS-35/7.5 or 15 DC OK relay contact LED indicator for power on 100% full load burn-in test No load power consumption < 0.75W 3 years warranty Hardware Specifications Output Model DC Voltage Rated Current Current Range Rate Power Ripple & Noise Voltage ADJ. Range Voltage Tolerance Line Regulation Load Regulation Setup, Rise Time Hold up Time 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load 50ms/230VAC 20ms/115VAC...

Open the catalog to page 10
