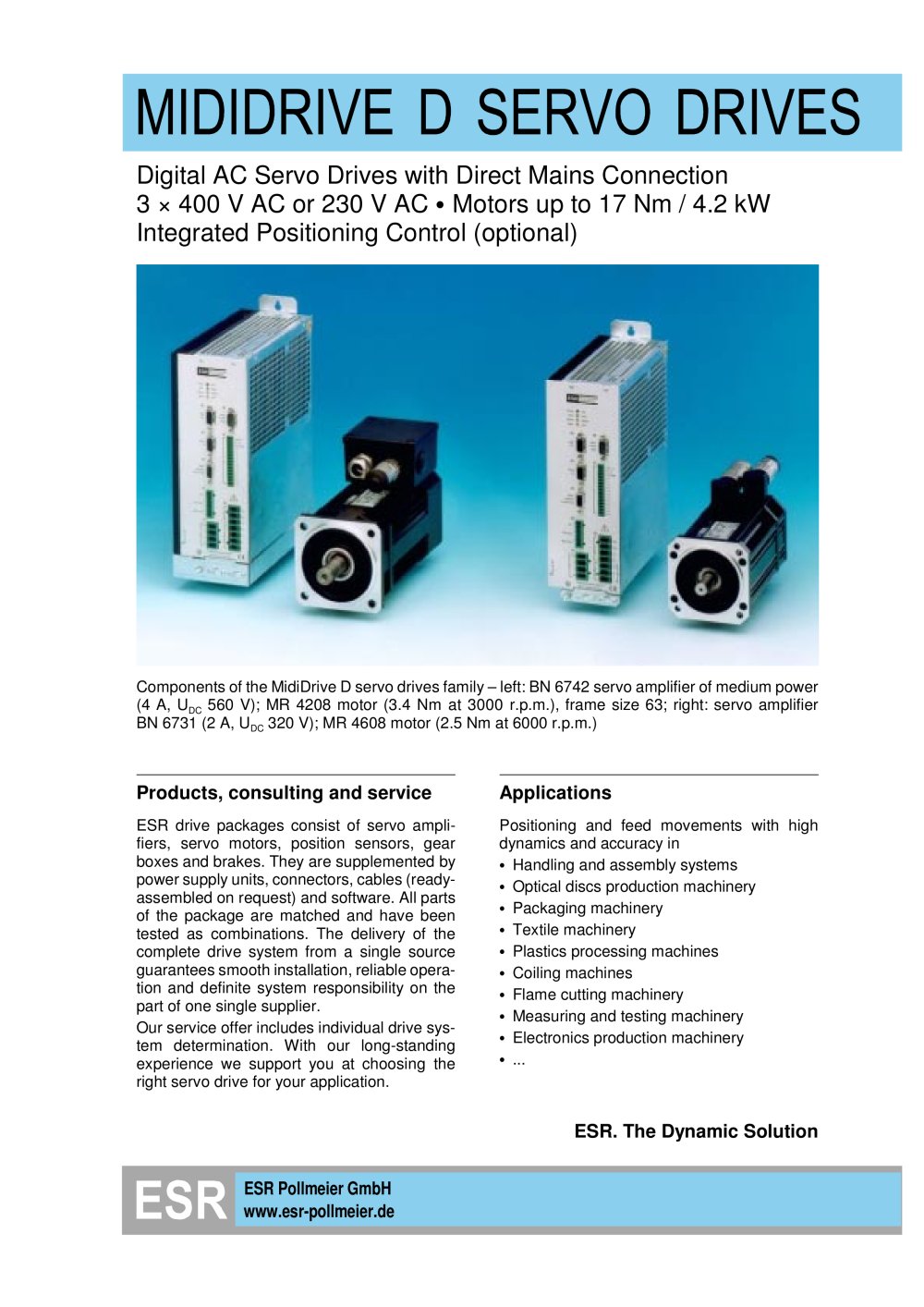

Components of the MidiDrive D servo drives family ז left: BN 6742 servo amplifier of medium power(4 A, U > DC 560 V); MR 4208 motor (3.4 Nm at 3000 r.p.m.), frame size 63; right: servo amplifierBN 6731 (2 A, U > DC 320 V); MR 4608 motor (2.5 Nm at 6000 r.p.m.) > ESR drive packages consist of servo ampli- fiers, servo motors, position sensors, gearboxes and brakes. They are supplemented by power supply units, connectors, cables (ready- assembled on request) and software. All parts of the package are matched and have beentested as combinations. The delivery of thecomplete drive system from a single sourceguarantees smooth installation, reliable opera- tion and definite system responsibility on thepart of one single supplier.Our service offer includes individual drive sys-tem determination. With our long-standingexperience we support you at choosing the right servo drive for your application. Positioning and feed movements with high dynamics and accuracy in Handling and assembly systems Optical discs production machinery Packaging machinery Textile machinery Plastics processing machines Coiling machines Flame cutting machinery Measuring and testing machinery Electronics production machinery ... >

Wide speed control range IP 65 protection Insulation according to insulation class F, DINVDE 0530, withstanding tropical conditions High power density through rotor with rare earthmagnets Ball bearings with grease filling for 20,000 operat-ing hours > 2MidiDrive DData sheet 6730.250, V 2.0 Integrated resolver for sinusoidal commutation,optional high-resolution incremental encoder ERN 1185 Thermal protection through integral PTC thermis-tor > Connection using connectors for position sensorand motor. MR 42 and up terminal box for motor Five power classes Self-cooling, on request cooling through...

Data sheet 6730.250, V 2.0MidiDrive D3 mains power supply motor metal parts have the best possible electrical contactto each other. 24 V control logic supply voltage protective earth PE (additionally also via a studbolt)According to the application, the Combicon connec-tors can also be used to connect: Power supply unit The power supply unit is built-in. The power sectionis fed directly from the 230 V AC or the 400 V three- phase mains. A control logic supply voltage of 24 V is fed to the control section. The power supply unit contains a RFI-filter and a shunt regulator whose shunt resistor absorbs...

4MidiDrive DData sheet 6730.250, V 2.0 Command mode archived and restored using the SPP Windows PCsoftware.A signal processor controls current and speed andis responsible for the PWM control of the power circuit. With a cycle time of only 62.5 sec the control algorithms ensure high dynamics and con- trol quality. A 16-bit microcontroller controls the position with a cycle time of 1 msec.In the standard configuration, a resolver is used asposition sensor in the motor. If particularly accurate positioning is required, a high-resolution incremen- tal encoder at the motor or an external position...

Data sheet 6730.250, V 2.0MidiDrive D5 part programs part program variablesThe parameters that change dynamically (controland status information, setpoint and actual values) are transmitted cyclically via the Interbus, CAN-open or Profibus-DP process data channel. Up to 18 bytes (Interbus) or 16 bytes (Profibus-DP) are available each for process data input and output. With CANopen 5 PDOs are predefined each forprocess data input and output. The remaining pa-rameters are transmitted via the parameter chan-nels of Interbus (PCP), CANopen (SDO) or Profi- bus-DP. feedforward M functions (set outputs)...

Mains connection and DC-bus voltage Continuous output current 3xmains connection 230 V 1-phase, corresponds to 320 V DC-bus voltage4xmains connection 400 V 3-phase, corresponds to 560 V DC-bus voltage(mains connection 480 V 3-phase on request) 31output current 2 A > rms 32output current 4 A > rms 41output current 2 A > rms 42output current 4 A > rms 43output current 8 A > rms Assembly code Company-internal coding, is given for various feature combinations. The assembly code need not be given if allother features (unequal zero) are given and the customer-specific fittings are described. BN 6731-B1-R1-A1"would...
