TSE-11 Thermal Shock PDF Catalog

Product catalog summary

Overview

The ESPEC compact thermal shock chamber is designed for high-performance temperature cycling tests on small and low-volume specimens. It features rapid temperature recovery, a compact footprint, and compliance with stringent test standards such as MIL-STD-883E.

Key Specifications and Performance

Temperature recovery time: Less than 5 minutes between +150°C and -65°C zones without auxiliary cooling.
Test area volume: 10.9 liters, accommodating larger specimens such as 210×297mm printed circuit boards horizontally.
Temperature uniformity: Within ±1.5°C for specimens during high and low temperature exposures, ensuring consistent stress application.
Vibration reduction: Soft-move mode minimizes shock to specimens during transfer between temperature zones.
Compliance: Meets MIL-STD-883E and other relevant test standards.

User Interface and Safety Features

Color LCD touch-screen panel for intuitive operation, displaying test patterns, temperatures, cycle counts, and trend graphs.
Specimen protection mechanisms include drive unit brakes and additional safeguards to prevent specimen dropping.
Automatic halt of test area drive and door locking during operation for user safety.
Cable port for easy wiring of specimens for power application or measurement during tests.

Environmental and Energy Considerations

Energy-saving features include electronic auto-expansion valve control and titanium interior materials.
Compact vertical design requires minimal installation space (26 inches footprint).
Use of HFC refrigerant compliant with the Montreal Protocol to protect the ozone layer.
Material labeling and design facilitate recycling of components.
Optional paperless recorder for digital temperature data logging on memory cards.

Test Standards and Compliance

The chamber supports a wide range of temperature cycling profiles compliant with TSE-11-A and MIL-STD-883E standards, covering temperature ranges from approximately -65°C to +150°C with precise control and repeatability.

Options and Accessories

Safety and control options: Leakage breakers, circuit breakers, overheat and overcool protectors, door switches, emergency stop switch, external alarm terminals.
Specimen handling: Stainless steel specimen baskets (5 mesh), cable port rubber plugs, specimen power supply control terminals.
Data recording: Digital temperature recorders (1 to 6 channels), paperless recorders with Compact Flash memory support.
Auxiliary cooling injectors using liquefied CO2 or nitrogen to reduce temperature recovery times.
Communication interfaces: GPIB, RS-232C, E-BUS, RS-485 for integration with external control and monitoring systems.
Additional accessories: Power cords, fixture for floor mounting, color customization of chamber exterior.

Safety Devices

The chamber incorporates multiple redundant safety features including automatic drive halt on door opening, overheat protection for both high and low temperature chambers, thermal relays, compressor protection switches, and motor inverter safeguards to ensure safe operation.

Summary

The ESPEC compact thermal shock chamber offers a high-performance, user-friendly, and environmentally conscious solution for thermal shock testing of small specimens. Its rapid temperature recovery, precise temperature uniformity, and compliance with rigorous standards make it suitable for demanding test environments. The extensive options and safety features enhance operational flexibility and user protection.

Catalog excerpts

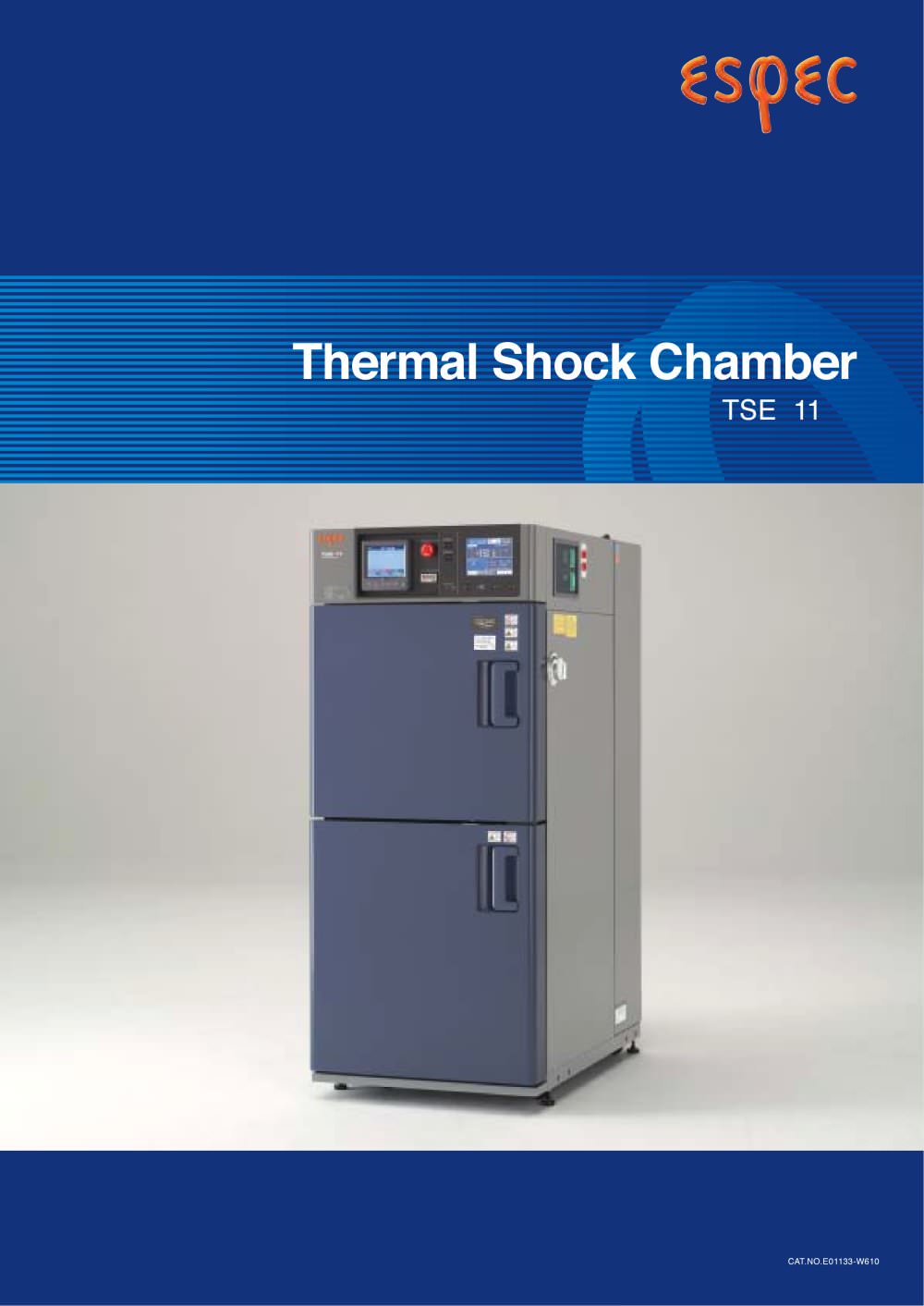

Primo+_E.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Microsoft Sans Serif", sans-serif; } CAT.NO.E01133-W610

Open the catalog to page 1

ESPEC offers a compact, but high performance thermal shock chamber ideal for the requirements of test standards of small and low-volume specimen. Equipped with superior temperature recovery performance capable of answering the requirements of severe test specifications, this thermal shock model offers a wide test area in a compact, slim design. ‚P ..

Open the catalog to page 2

A temperature recovery time of less than 5 minutes is achieved in 2 zones ({150Ž and |65Ž) without auxiliary cooling. By realizing a temperature recovery time of less than 5 minutes for the upstream air in the 2 zones ({150Ž and |65Ž), we have achieved performance equivalent to that of a large thermal shock chamber without having to use auxiliary cooling by means of liquid carbon dioxide, which was required in previous compact thermal shock chamber. Complies with MIL-STD-883E and other test standards. This compact thermal shock chamber satisfies the temperature cycle test requirements of MIL-STD-883E...

Open the catalog to page 3

Uses a color LCD interactive touch-screen system employed throughout the Thermal Shock Chamber Series. A color LCD panel design is employed that allows easy settings by just touching the screen in accordance with the display. The test pattern, test area temperature, number of temperature cycles, upstream/ downstream control, trend graph display are all displayed on the visible screen. Large 10.9-liter-capacity test area Features a 10.9-liter test area, twice that of our previous model. The volume that can be processed is greatly increased, and a 210×297mm printed circuit board can be tested in...

Open the catalog to page 4

Reduced power consumption Reduced power consumption is an important issue for our customers. This compact thermal shock chamber employs number of measures such as refrigeration capacity variable control by electronic auto-expansion valve and the use of a titanium interior material aimed specifically at energy savings. Small footprint Vertical design saves space. Required installation space is only 26 inch. Material indication for recycling Environmental protection measures have been taken such as indicating materials on plastic molded parts and employing a structure that makes it easy to remove...

Open the catalog to page 5

‚T TEST STANDARD (TSE-11-A compliant) { Ž { @@@@@ {Ž { @@@@@ |Ž @ @@@| |Ž @ @@@| {Ž { @@@@@ {Ž { @@@@@ {Ž { @@@@@ ! " { Ž ± { Ž ± {Ž ± {Ž ± {Ž ± {Ž ± {Ž ± { Ž ± { Ž ± { Ž ± { Ž ± { Ž ± { Ž ± { #Ž ± { #Ž ± {Ž ± | Ž ± |Ž ± |Ž ± |$Ž ± |Ž ± |Ž ± @Ž ± | Ž ± |Ž ± |Ž ± |Ž ± |Ž ± |Ž ± |Ž ± |$Ž ± |$Ž ± |Ž ± |$Ž %

Open the catalog to page 6

‚V OPTIONS œLeakage breaker (200, 220, 380, 400/ 415V AC) œCircuit breaker (400V AC) œElectric parts compartment door switch œTemperature switch for overheat protection of high-temperature chamber œTemperature switch for overheat protection of low-temperature chamber œOverheat protector for high-temp. chamber (Built-in controller) œOverheat/ overcool protectors for low temp. chamber. (Built-in controller) œTest area overheat and overcool protectors (Built-in controller) œTest area overheat / overcool protectors œRefrigerator high pressure switch œThermal relay for compressor œCompressor temperature...

Open the catalog to page 8

‚W Auxiliary cooling injector (LCO2) Used to reduce the temperature recovery time of low temperature exposure by injecting liquefied carbon dioxide at beginning of exposure. Auxiliary cooling injector (LN2) Used to reduce the temperature recovery time of low temperature exposure by injecting liquefied nitrogen at beginning of exposure. Cable port rubber plug Prevents air leakage from the cable port. Specimen basket Equivalent to standard accessory. EMaterial: stainless steel (5 mesh) Fixture for securing body Used to bolt the chamber to the floor. Power cord Used to connect to the primary power...

Open the catalog to page 9
