Primo+_E.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Microsoft Sans Serif", sans-serif; } CAT.NO.E05139

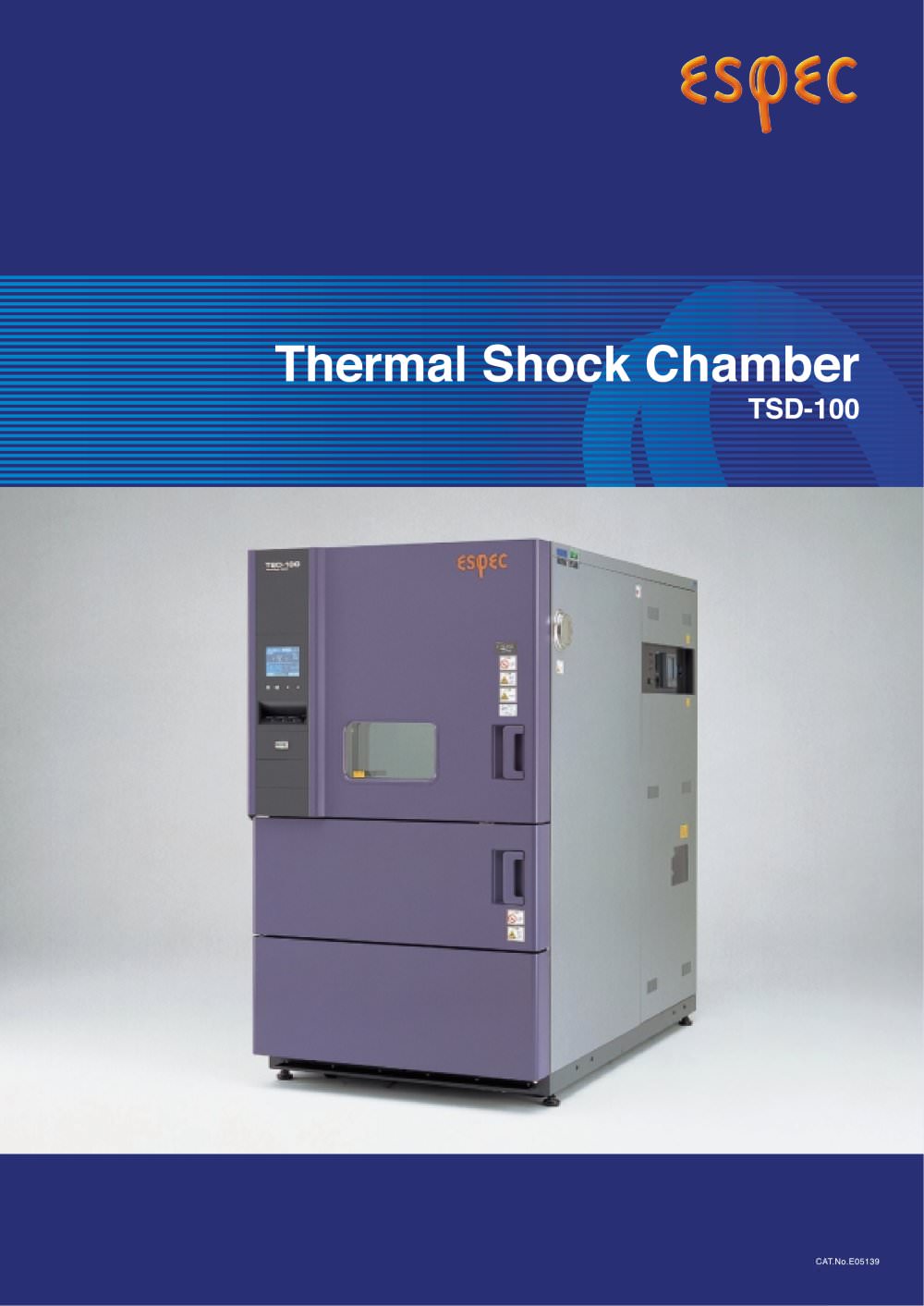

Large-capacity two-zone chamber capable of subjecting specimens to a uniform thermal stress. Two-zone thermal shock chamber ideally suited for MIL/IEC/JASO Japanese and international test standards. This new Thermal Shock Chamber from ESPEC is capable of subjecting specimens to uniform thermal stress with a 100 L test area and outstanding thermal distribution characteristics, making them ideally suited for use in a wide range of applications from research and development to inspection and production. ‚P

*The viewing window, paperless recorder and additional overheat protector are optional items. ‚Q

Two-zone system reduces specimen temperature recovery time Using 10 kg of plastic molded ICs with temperature settings of {150Ž and |65Ž, the specimen temperature recovers within less than 15 minutes. Compatible with MIL-STD-883 and other test standards The chamber is compatible with test standards such as MIL-STD-883, JIS C 0025, and JASO-D001. (see p.9, 10) Improved temperature distribution performance The chamber feature outstanding temperature distribution characteristics, 30% better than previous ESPEC products during temperature recovery, and include features to ensure uniform air...

‚S Utility Test area boasting a 100L capacity The test area has a capacity of 100L. This dramatically increases the processing capacity and even allows testing of A4-size printed circuit boards laid flat. Reduced vibration impact “Soft move mode” is automatically selected when stopping to minimize the vibration impact on specimens when the test area is moved between the hightemperature and low-temperature chambers. Test area anti-drop mechanism to protect specimens A braking system is fitted to the drive mechanism, which engages when the drive is stopped inside the chambers. This prevents...

Instrumentation ‚T Control operation Color LCD interactive touch-screen system The color LCD touch-screen instrumentation simplifies operation and setting, allowing users to touch the screen as indicated by the on-screen instructions. The screen allows at-a-glance confirmation of test patterns, test area temperatures, temperature cycles, upstream/ downstream control, and trend graph displays. Door-mounted instrumentation Instrumentation including the touchscreen controller is incorporated into the door. This reduces the overall footprint and frees up both sides of the chamber for easy...

Control operation ‚U Test detail monitor This screen displays the test details while the test is in progress. INSTRUMENTATION PANEL Product sensor settings This screen is used to enable or disable the specimen temperature sensor used for the STT function. It is also used to enable or disable additional optional specimen temperature sensors. Pattern editing This screen is used to set the test conditions. Alarm If a problem occurs, "ALARM" flashes on the screen and a buzzer sounds. Service guide When an inspection item is selected, a description of the required maintenance steps is displayed....

‚V Reduced power consumption From the customer's viewpoint, reducing power consumption is a major issue. The TSD-100 incorporates a number of features, including variable refrigeration capacity control using electronic expansion valves, to reduce overall power consumption by approximately 30% (compared with previous ESPEC products). Recyclable material labeling Environmental features include material labeling on plastic molded components to facilitate recycling when the system is disposed of in the future, and a design that enables recyclable components to be removed easily. Use of HFCs...

‚P‚O TEST STANDARD (TSD-100 COMPATIBILITY) Test standard Recovery time Soak time Number of cycles Temperature setting High temp. (Ž) Low temp. (Ž) IPC-TM-650 2.6.6 SAE J1879 JASO-D001 A {125 ({3,|0) |65 ({0,|5) {85 ({3,|0) |55 ({0,|5) {150 |55 Specimen less than 15 min. 10 min. or longer after transition start 0.2kg and below: 1 hour ({15 min.) 0.2 to 0.8kg: 2 hours ({15 min.) 0.8 to 1.5kg: 3 hours ({15 min.) More than 1.5kg: 4 hours ({15 min.) 1000 EIAJ ED-4701 Max. storage temp. Min. storage temp. Air 5 min. or 10“ of soak time, whichever is longer Air 5 min. or 10“ of soak time,...

SPECIFICATIONS Model System TSD-100 2-zone switching by vertical transfer of specimens Operating temperature {5 to {40Ž ({41 to {104 B F) {60 to {200Ž ({140 to {392 B F) |65 to 0Ž (|85 to {32 B F) ±0.5Ž (±0.9 B F) {205Ž ({401 B F) Ambient temp. to {200Ž ({392 B F) within 90 min. |77Ž (|106.6 B F) Ambient temp. to |77Ž (|106.6 B F) within 90 min. Painted steel 18-8 Cr-Ni stainless steel plate Glass wool, expanded polyurethane 710×345×410mm (27.95×13.58×16.14inch) 1100×1885×1965mm (43.31×74.21×77.36inch) Approx. 1100kg Utility requirement Construction Performance *1 Test area High temp....

‚P‚Q SAFETY DEVICES ACCESSORIES œ Leakage breaker (200, 220, 380V AC) œ Circuit breaker (208, 400/415V AC) œ Distribution compartment door switch œ Temperature switch for overheat protection of high temperature chamber œ Temperature switch for overheat protection of low temperature chamber œ Overheat protector for high-temp. chamber (Built-in controller) œ Overheat and overcool protector for low-temp. chamber (Built-in controller) œ Test area overheat and overcool protector (Built-in controller) œ Test area overheat and overcool protector œ Wiring circuit breaker œ Refrigerator high and low...

‚P‚R Total cycle counter Indicates cycle counts. EDisplay range: 1-99999999 (with resetting function) Total cycle counter STT 3-point Expansion Adds three specimen temperature inputs used for STT function. (Two-input expansion provided as standard.) Specimen temperature measuring thermocouple Attached to specimens to measure specimen temperature. EThermocouple type T without ball (Copper/ Copper-Nickel) *Same as accessory items OPTIONS Temperature recorder (digital) |100 to {220Ž /100 mm ERK-61: 1 pen ERK-63: 3 pens ERK-64: 6 dots Temperature recorder for future installation Preparation of...
