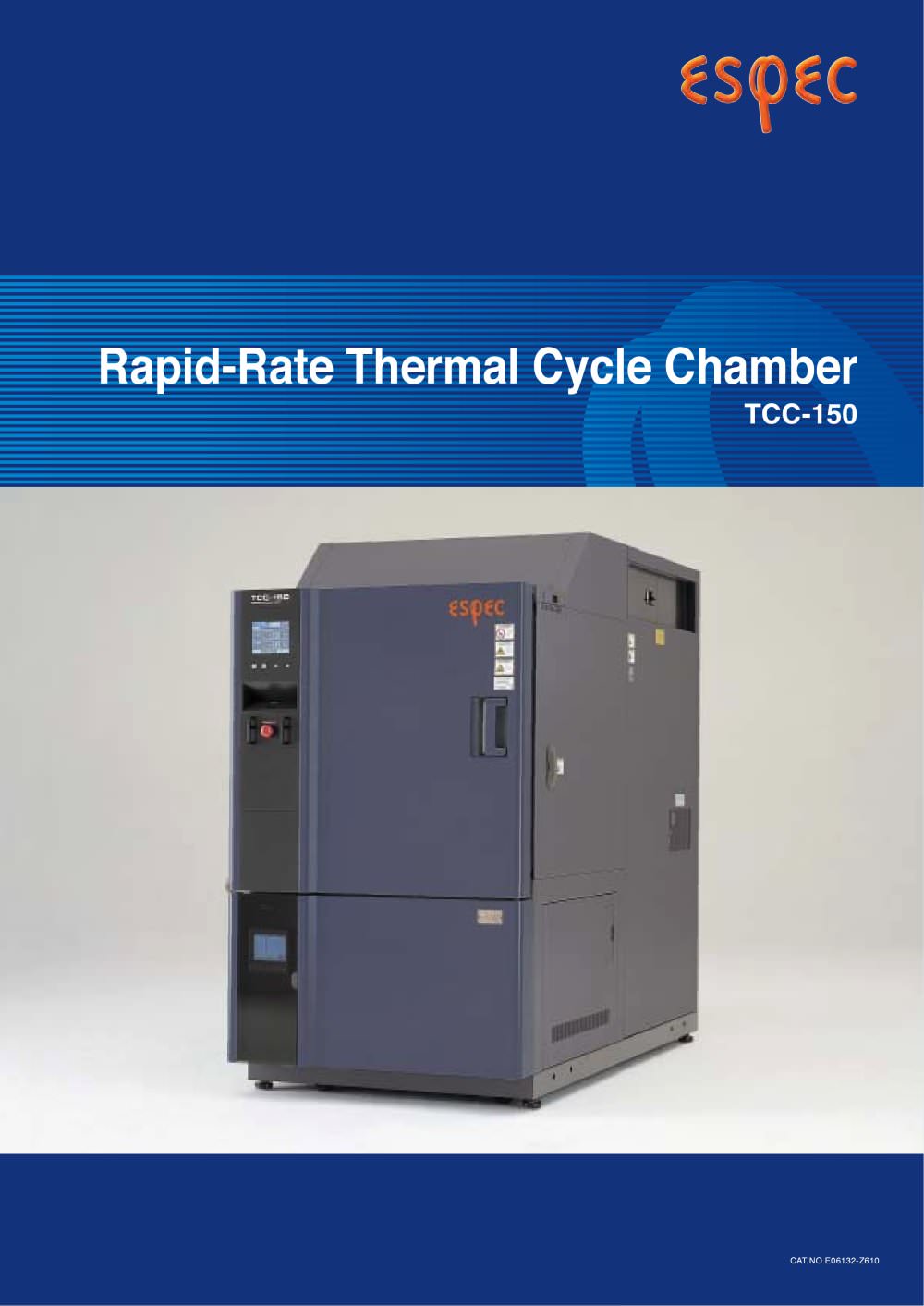

Layout 1 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Microsoft Sans Serif", sans-serif; } CAT.NO.E06132-Z610

‚P Uniform and highly-repeatable temperature change rate. TCC-150 enables specimen temperature ramp control. Advent of the Rapid-Rate Thermal Cycle Chamber just suited for quick changes in specimen temperature, covering various applications from JEDEC standard tests to screening. The Rapid-Rate Thermal Cycle Chamber incorporates new technologies, such as a specimen temperature control that maintains linear specimen temperature change rates, during rapid thermal cycling, and temperature ramp control. ESPEC offers a new chamber that sets the industrial standard for the new era of thermal cycling....

Performance TCC-150 provides uniform temperature load, and highlyrepeatable temperature change rate. Through simulation of wind volume and wind speed, TCC-150 can minimize specimen temperature variations, enabling more accurate quick temperature change testing. For specimen temperature, the ramp rate is 15Ž/min. For air temperature, the ramp rate is 23Ž /min (temperature heat-up average). Conformity to JEDEC JESD22-A104-B standard test The Rapid-Rate Thermal Cycle Chamber meets the requirements of the JESD22- A104-B standard for semiconductor package evaluation and solder joint evaluation, enabling...

‚S Performance New temperature ramp control functions To maintain a constant temperature change rate for test specimens, the TCC- 150 uses a sensor (positioned by the user) for specimen temperature measurement, and a newly-developed high-speed controller that enables highly precise specimen temperature control. This controller enables measurement and control processing at a higher speed than conventional controllers. Furthermore, the TCC-150 uses a new technologies for specimen temperature ramp control, for example: ¥Technology to increase refrigeration capacity at low temperatures; ¥Conditioning...

‚T Large-volume test area The test area can contain up to sixty substrates(257W×182H mm), when set vertically. Easy wiring access The chamber features clear cabinet sides, allowing easy access for specimen measurement or voltage-application wiring. Cable ports are provided on the right as well as left sides of the chamber. Door hinge with self-closing prevention The chamber door uses hinges that prevents self-closing. When the door is opened or closed, it temporarily stops at 60 degrees and 120 degrees to ensure greater safety. Safety measures The TCC-150 provides various safety devices and functions:...

‚U Instrumentation Control operation Color LCD interactive touch-screen system The color LCD touch-screen instrumentation simplifies operation and setting, allowing users to touch the screen as indicated by the displayed instructions. The screen allows at-a-glance confirmation of test patterns, test area temperatures, temperature cycles, upstream/ downstream control, and trend graph displays. Three operation modes The TCC-150 features three operation modes: Program Operation, Constant Operation, and Cycle Operation, allowing easy operation of various test patterns. Door-mounted instrumentation...

‚V TEST STANDARD (TCC-150 COMPATIBILTY) .. ..

SPECIFICATIONS TEMPERATURE CHANGE GRAPH .. Ž .. .. | {Ž | {Ž { |Ž { |Ž .. !" # $%% &% '(

‚P‚P OPTIONS Paperless recorder Paperless recorder Temperature recorder (digital) |100 to {220Ž /100 mm ERK-63: 3 pens ERK-64: 6 dots Temperature recorder for future installation Preparation of a power cable, temperature sensor, and a grounding wire for additional installation in the future. Temperature recorder Records temperature of each section such as the temperature inside the chamber. ENumber of inputs: 2 (4 more channels can be turned ON) EData saving cycle: 5 seconds ETemperature range: |100 to {200Ž EExternal memory media: CF memory card (32 MB) ELanguage support: ENG/ JPN • Flat cable...

Temperature attainment output ‚P‚Q OPTIONS Fixture for securing body Used to bolt the chamber to the floor. Caster Used to move the chamber. ECasters: 4 pcs EAdjustable feet: 4 pcs Chamber dew tray Prevents water leaks from the chamber onto the floor. * The use of casters is recommended to facilitate operation. Communication cable ERS-485: 5, 10 m EGPIB: 2, 4 m ERS-232C: 1.5, 3, 5 m (For extension: 1.5, 3, 5 m) Communication function Enables continuous control of the chamber in conjunction with a PC. EGPIB ERS-232C * Select one, in place of standard RS-485. Power cord Used to connect the chamber...
