ESPEC NORTH AMERICA
Platinous PDF Brochure

Platinous PDF Brochure

Product catalog summary

Overview: The document provides detailed information about the ESPEC Platinous Series Temperature and Humidity Chambers, highlighting their features, specifications, and options available for customization. These chambers are designed for high-quality environmental testing with user-friendly features.

Key Features:

Advanced design solutions include proportional refrigeration, custom-molded thermal breaks, stainless steel exteriors, fully-heated windows, and a full-color touch screen controller.
Standard features include a cable access port, adjustable shelves, top-quality casters, wheel-type blowers, and multiple levels of overheat protection.
The humidity bath system is efficient and easy to maintain, providing rapid response to changes.

SCP-220 Controller:

The SCP-220 controller offers programmable instrumentation with a user-friendly touch screen interface.
Pre-programmed with 10 standard tests, with the capacity to add 20 more, including complex programs with pauses and loops.
Features include an RS-232 computer interface, optional product temperature control, and real-time graph plotting.

Performance Specifications:

Temperature range from -70 to 180°C with fluctuations and gradients specified for different models.
Humidity range from 10 to 98% RH with specified fluctuations and gradients.
Various models offer different workspace volumes and dimensions to suit specific testing needs.

Site Requirements:

Electrical supply options include 208V or 230V with specific disconnect breaker requirements.
Condensate drain requires a 1/2" hose connection.

Options and Accessories:

Additional shelves, cable ports, viewing windows, and inner glass doors are available.
Instrumentation options include computer interfaces, refrigeration gauges, and various recorders.
Operational options include water cooling, LN2 cooling boost, dry air purge, and emergency-stop button.

Safety Notice: The chambers are not suitable for use with explosive or flammable specimens, as this could lead to hazardous situations.

Catalog excerpts

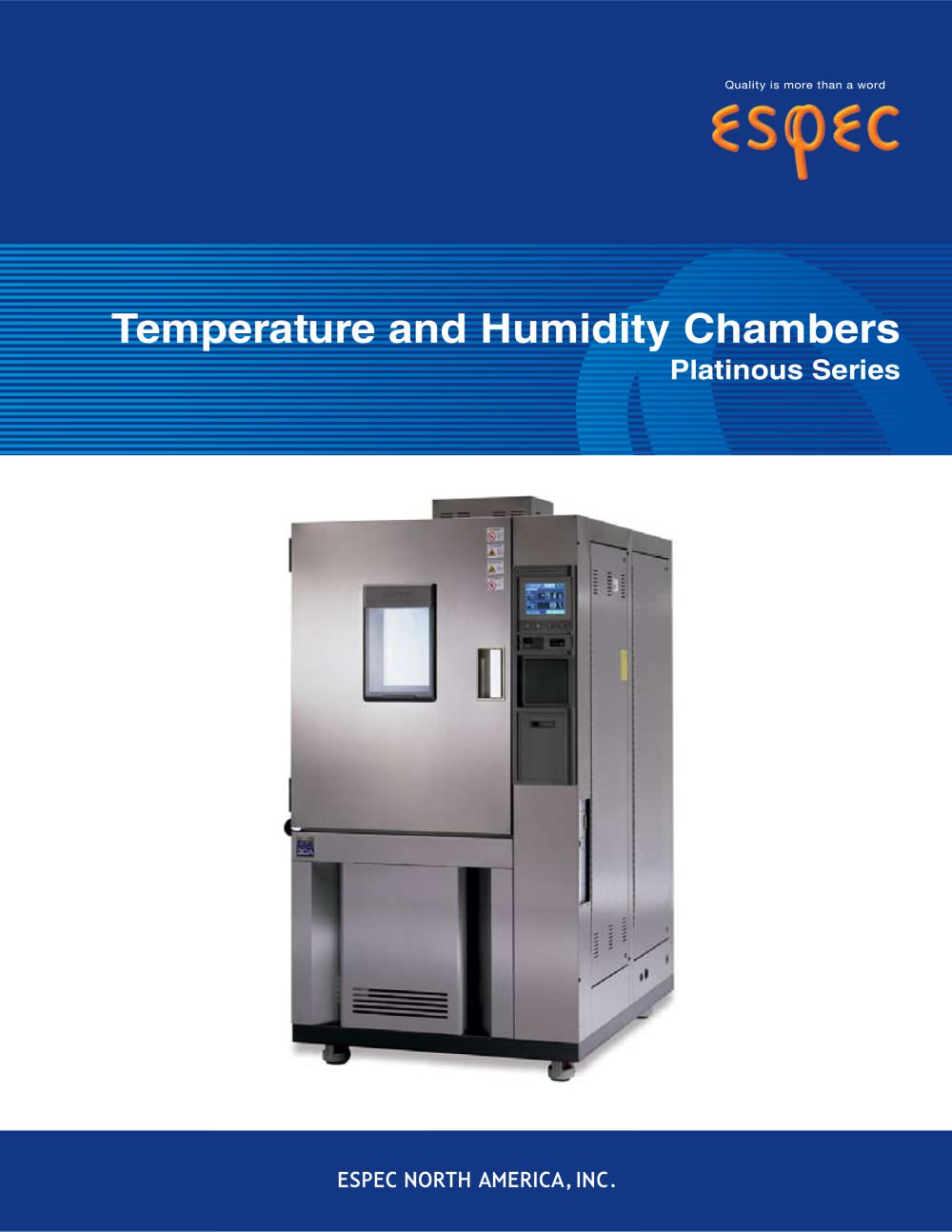

Temperature and Humidity Chambers Platinous Series

Open the catalog to page 1

3 High Quality Test Chambers ... Built with the Busy User in Mind As ESPEC North America's flagship product line for twenty years, the Platinous series has continually impressed test engineers with consistent quality and user-friendliness.

Open the catalog to page 3

4 Platinous Features ESPEC Platinous series have advanced features for quality and reliability Test Area Blower Heaters Cooling Coil Humidity Bath Refrigeration Built with the busy user in mind If you have ever used an environmental chamber before, you’ll be quick to appreciate the unique design and friendly features of the ESPEC Platinous series chambers. First time users will enjoy the ease of use, low maintenance requirements, and high reliability of these chambers. The Platinous series has been improved over the last forty years to meet the expectations and test requirements of our many varied...

Open the catalog to page 4

DMC-1400_DS_0810.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:18.00pt "Arial Black", sans-serif; } .font4 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:7.00pt "Times New Roman", serif; } .font6 { font:10.00pt "Times New Roman", serif; } .font7 { font:13.00pt "Trebuchet MS", sans-serif; } SCP-220 Controller Programmable instrumentation Imagine walking up to your test chamber and immediately being able to get your test running....

Open the catalog to page 5

6 Temp/Humidity ESX-2CA ESX-3CA ESX-4CA Temp-only ESZ-2CA ESZ-3CA ESZ-4CA Performance Temperature Range: -70 to 180°C (-94 to 356°F) Temperature Fluctuation: ±0.3°C (up to 100°C) ±0.5°C (up to 100°C) Temperature Gradient: ±0.5°C (up to 100°C) ±1.0°C (up to 100°C) Heating Rate†: 6.1°C/m. 5.5°C/m. 6.6°C/m. Cooling Rate†: 4.1°C/m. 2.7°C/m. 1.8°C/m. Humidity Range: 10 to 98% RH (see chart, ESX models only) Humidity Fluctuation: ±2.5% ±3% Humidity Gradient: ±3% ±5% Airflow 400 CFM 800 CFM Dimensions Workspace volume: 225 L (8 cu. ft.) 408 L (14 cu. ft.) 900 L (32 cu. ft.) Workspace dimensions (WxDxH):...

Open the catalog to page 6

7 Cabinet Options • Additional adjustable shelves (or heavy duty 100 lbs.) • Additional cable ports (2", 4", or 6" diameter available, or custom) • Viewing window 8 & 14 cu. ft.: 7"x10" window 32 cu. ft.: 17"x9.5" window • Inner glass door Includes glove ports to manipulate samples (not shown) Instrumentation Options • Computer interface IEEE-488 (GPIB) with LabView drivers, in place of standard RS-232. • Refrigeration gauges • Product temperature control • Alarm relay output • Additional relay contacts • Solid state humidity sensor • Additional six time signals for SCP- 220 • Overcool protector...

Open the catalog to page 7

DMC-1400_DS_0810.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:34.00pt "Georgia", serif; } ESPEC NORTH AMERICA, INC. http://www.espec.com/ 4141 Central Parkway, Hudsonville, MI 49426, U.S.A. Tel : 1-616-896-6100 Fax :1 -616-896-6150 ESPEC EUROPE GmbH Dachauer Strasse 11, D-80335, Munchen, Germany Tel :49-89-1893-9630 Fax :49-89-1893-96379 ESPEC ENVIRONMENTAL EQUIPMENT (SHANGHAI) CO.,LTD. F5,ShenHua Financial Building,NO 1 NingBo Road, Huangpu...

Open the catalog to page 8
