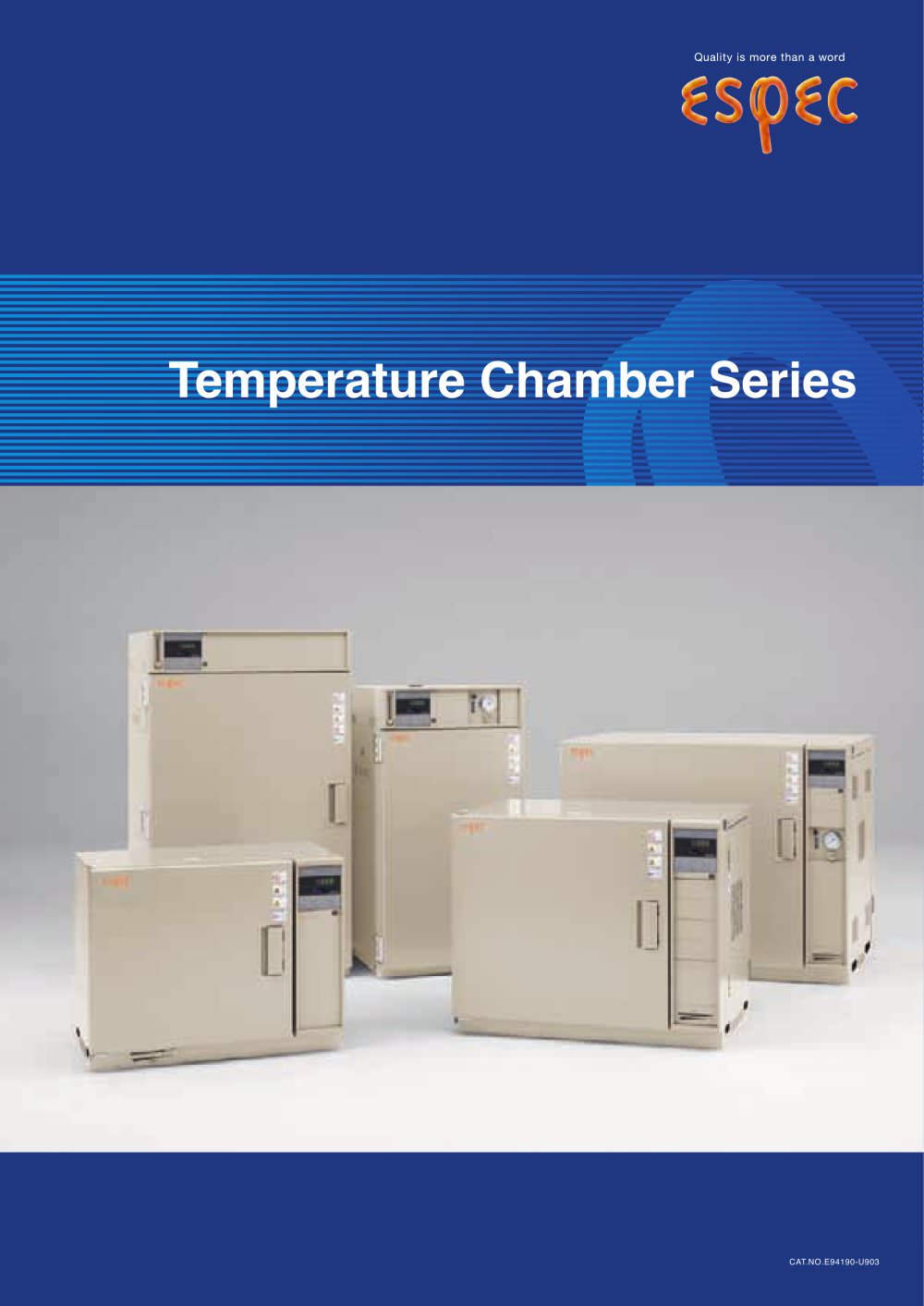

Temperature Chamber Series CAT.NO.E94190-U903

Ideal for numerous applications ranging from high-temperature tests to drying and heat processing. The "Perfect Oven" epitomizes the features and performance of the ideal oven. It performs a wide range of roles, from high-temperature tests and drying to heat treatment in production lines with unsurpassed reliability and performance. The 56 models offered by ESPEC precisely answers the various needs of our customers. 1

VARIATION OF CHAMBERS 3 {200Ž 933 to 1m×102Pan i 700 to 1 Torrj LC CONVECTION OVEN {200Ž/{250Ž 90L/165L/360L LCV VACUUM OVEN {200Ž 0 to -101kPa iGaugej ST(H) DESK-TOP TYPE HIGH-TEMP CHAMBER {200Ž/{300Ž 15L/28L/39L Temperature Chamber (Vertical type) PV(H) { 200Ž^{ 300Ž i{ 392°F^{ 572°Fj Temperature Chamber (Horizontal type) Ultra-High Temperature Chamber Ultra-High Temperature Chamber PH(H) { 200Ž^{ 300Ž i{ 392°F^{ 572°Fj STPH { 500Ž i{ 932°Fj SSPH { 700Ž i{1292°Fj VAC VACUUM OVEN OVEN SERIES FOR VARIOUS APPLICATIONS

4 {200Ž/{300Ž 2250L/4050L {300Ž 43.4L Class 5 PV(H)C CLEAN OVEN {200Ž/{300Ž/{350Ž 178L/380L/678L Class 5 Temperature Chamber with Explosion Vent Temperature Chamber with Rotating Specimen Rack Anaerobic Temperature Chamber SPH(H) { 200Ž^{ 300Ž i{ 392°F^{ 572°Fj GPH(H) { 200Ž^{ 300Ž i{ 392°F^{ 572°Fj IPH(H) { 200Ž^{ 300Ž i{ 392°F^{ 572°Fj STC DESK-TOP TYPE CLEAN OVEN (H)LKS LARGE VOLUME TEMPERATURE CHAMBER

Control operation 5 User-friendly Standard Instrumentation Standard Inst rumentation features programmed operation with operational settings such as constant mode and automatic start/stop. Suitable for heat treatment, drying, and similar productionline applications. M-Instrumentation features programs with up to 20 steps Suitable for a range of applications from temperature-characteristics testing to heat treatment and drying. Programmed operation now allows storing ten patterns, each up to twenty steps. Provides a wide range of functions, including temperature ramp settings and a maximum...

Examples of Programmed Operation (M-Instrumentation) Step program* Temp. Time Ramp program* Automatic start* End of program (selection) Temp. Time Temp. 1.HOLD 2.CONST 3.OFF Temp. Temp. Temp. END END END Time Time Time Temperature at the final step is maintained. Operation at preset constant temperature. Oven is turned OFF * The number of repetitions of a program can be preset between 1 and 999. Operation status upon completion of a program can be set to HOLD, CONST or OFF. Stepwise damper setting is possible using an optional automatic damper. Guarantee soak function, whereby the timer is...

TEMPERATURE CHAMBER (Vertical type) PV(H) { 200Ž^{ 300Ž Chamber interior A space-saving upright chamber Components are incorporated into the top portion of the vertical chamber, reducing installation space by 20~60% (comparison with conventional model). Increases productivity on the production line, and saves laboratory space. Inner side of door is seamless The seamless molding inside of door prevents heat loss from loose joint. Large processing capacity Since the floor and shelves of the chamber have been greatly reinforced, a large amount of specimens can be loaded and processed at the...

SPECIFICATION SAFETY DEVICES ACCESSORIES œ Leakage breaker œ Electrical compartment cover switch œ Door switch œ Thermal fuse œ Air circulator thermal switch œ Heater wiring breaker œ Upper and lower temperature limit alarm function (built inside temperature controller) œ Overheat protector œ Cartridge fuse œ Specimen power supply control terminal œ Shelf (stainless steel wire) 2 (stainless steel plate for type 332) œ Shelf bracket (stainless steel plate) 2 sets (4) œ Cartridge fuse 2 œ User's manual 1 set 8 Shelf pitch, number of shelves and shelf load capacity Model PV-212 PV-222 PV-232...

Chamber interior High performance chamber A temperature-indication controller with an advanced PID operation, and an originally developed chamber configuration provide unmatched oven performance. Temperature uniformity, temperature constancy, temperature heat-up rate, and temperature recovery time are performed with the upmost reliability. Safety measures Triple safety mechanisms are employed especially for excessive overheating. Various models to choose from We provide a total of 16 ovens with combination of temperature range, capacity, and instrumentation. TEMPERATURE CHAMBER (Horizontal...

SPECIFICATION œ Shelf (stainless steel wire for type102¥202) 2 (stainless steel punched plate for type 302¥402) 2 œ Shelf bracket (stainless steel plate) 2 sets (4) œ Cartridge fuse 2 œ User's manual 1 set œ Leakage breaker œ Electrical compartment cover switch œ Door switch (type 402 only) œ Thermal fuse œ Air circulator thermal switch (except type 402) œ Air circulator overload relay (type 402 only) œ Heater wiring breaker œ Reverse-prevention relay œ Upper and lower temperature limit alarm function (built inside temperature controller) œ Overheat protector œ Cartridge fuse œ Specimen...

Temperature control of { 500Ž Effective temperature range of (ambient temp { 20)Ž to { 500Ž . The chamber can be used for a variety of applications, including tests of viability under high-temperatures and temperature resistance. Door equipped with a single-action lever The door can be firmly locked by an easy-to-use single-action lever. It prevents accidents from unlocked doors. ULTRA-HIGH TEMPERATURE CHAMBER STPH { 500Ž SPECIFICATION ACCESSORIES œ Shelf (stainless steel wire) 2 œ Shelf bracket (stainless steel plate) 2 sets (4) œ Cartridge fuse 2 œ User's manual 1 set œ Leakage breaker œ...

The Insulation configuration saves energy Ceramic fiber and aluminium foil are used as insulation materials. It increases effective insulation and prevents heat loss, thus saving energy. Also, this configuration has made the chamber compact in size. A Double seal gasket configuration A gasket made of stainless steel fiber and a leaf spring are used to form a double seal between the door and the chamber. Prevents heat radiation on door. Door equipped with a single-action lever The door can be firmly locked by an easy-to-use single-action lever. It prevents accidents from unlocked doors. œ...
