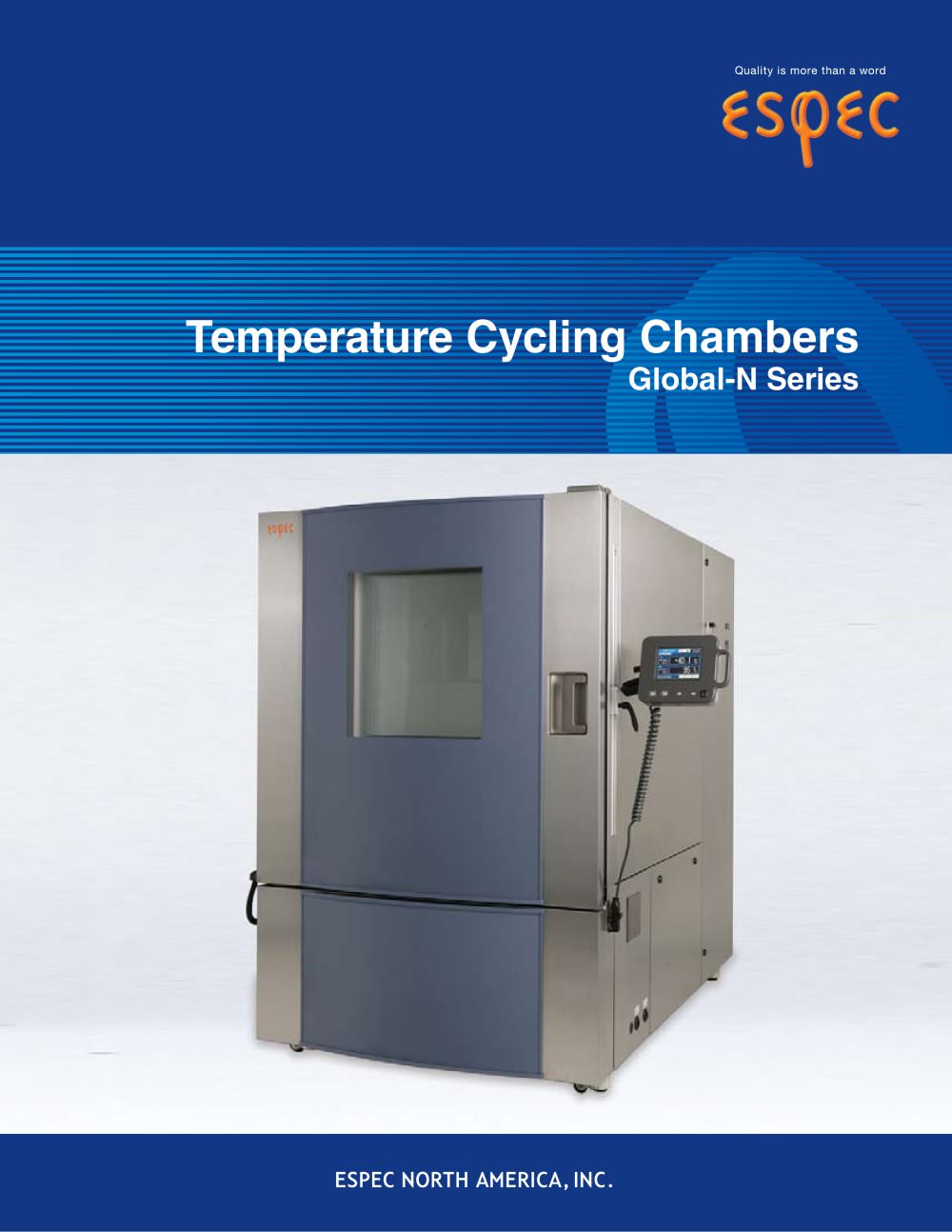

Temperature Cycling Chambers Global-N Series

Faster chambers for production and qualification level testing – Change rates up to 20°C per minute The Global-N series chambers from ESPEC provide the temperature and humidity test capabilities you need to validate quality and reliability for increasingly-sophisticated electronics and other products. 2

3 Global Features The 380-liter model is just 0.8 meters wide (32 inches), plus the instrument pod. The 800-liter model fits on a space 1.2m wide by 2m deep (47 by 77 in.), except -15CW models. Fast Temperature Cycling The Global-N series comes in two interior volumes, 380 and 800 liters (12 and 28 cubic feet) and require the least amount of floor space for this level of performance. Models are available with temperature changes as fast as 20°C per minute. Controlled humidity is also an available feature. These chambers feature the classic ESPEC look of stainless steel with a new, modern style....

4 Performance Model choices by performance The variety of models allows you to choose the size and performance best suited for your test applications. Temperature cycling rates from 5 to 20°C/min. are possible. Global-N chambers are capable of meeting the performance requirements of JEDEC, IEC, MIL-STD, and other international test performance standards. Performance evaluation to help select model For better assurance of performance for your application, ESPEC can provide a guaranteed performance calculation based on your submitted requirements. Please use the chart at right as a guide to document...

5 Advanced Control Adjustable height controller Global-N chambers come with a new, fullyadjustable controller pod that will please users of different heights. The pod’s height and viewing angle are infinitely adjustable to fit any operator’s preference, even when seated. The pod is also removable for shipping. Touch-screen Operation At the heart of the pod is ESPEC’s SCP-220 touch-screen programmable controller that makes it a breeze to set up, run, and monitor the chamber, even for infrequent users. Visit our website, www.espec.com/scp for details and an online demo. Optional Product Temperature...

DMC-1400_DS_0810.indd tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial Black", sans-serif; } SPECIFICATION - 380 RANGE -70 TO 180°C EGNX12-4CWL EGNX12-4CAL EGNX12-6CWL EGNX12-6CAL EGNX12-7.5CWL EGNZ12-4CWL EGNZ12-4CAL EGNZ12-6CWL EGNZ12-6CAL EGNZ12-7.5CWL Temprature Range -70 to 180°C (-94 to 354°F) Cooling Capacity 2.5 kW at -50°C 4 kW at -50°C 4.5 kW at -50°C Rfrig驩ration System Cascade...

SPECIFICATION - 800 L / 28 cu. ft. MODELS 7 Temp/Humidity EGNX28-6CWL EGNX28-6CAL EGNX28-12CWL EGNX28-15CW Temp Only EGNZ28-6CWL EGNZ28-6CAL EGNZ28-12CWL EGNZ28-15CW Temperature Range -70 to 180°C (-94 to 354°F) Cooling Capacity 4 kW at -50°C 9 kW at -50°C 11 kW at -50°C Refrigeration System Cascade 6 hp Scroll Cascade 12 hp Scroll Cascade 15 hp Discus Heating System 10 kW 15 kW 20 kW Humidity Range 10 to 95% RH per chart (EGNX models only) Measured Airflow 1,350 cubic meters per hour (800 CFM) Performance Example (-70 to 180°C, per IEC 60068 3-5, at supply air) Heating Rate 10°C/m average 15°C/m...
