Criterion Series PDF Brochure

Product catalog summary

Overview: The document provides detailed information about the ESPEC Criterion Series Benchtop Test Chambers, highlighting their features, specifications, and operational options. These chambers are designed for temperature testing in laboratory environments.

Criterion Features: The Criterion Series offers a larger workspace with a narrower exterior, making it suitable for cramped labs. It features a 42-liter interior that is wider than traditional models, with a 20% narrower exterior. The vertical configuration and right-to-left airflow ensure uniform exposure and space efficiency.

Temperature Performance: The chambers can cycle temperatures between -70 to 180°C. The BTZ-175 model offers a change rate of 5°C per minute, while the BTZ-133 model offers 3.5°C per minute. These rates are measured according to the IEC 60068 3-5 standard.

Standard Features: The chambers include a stainless steel exterior and interior, a durable plastic door, a thermal break around the doorframe, a cable port, and overheat protection. They also come with a detachable power cord and easy lift-off service panels.

Specifications: The document lists detailed specifications for models BTZ-133, BTZ-175, and BTZ-175E, including temperature range, change rate, temperature fluctuation, interior and exterior dimensions, power requirements, weight, and sound level.

Operational and Instrumentation Options: Options include a roll-around cart, additional cable ports, adjustable shelving, liquid nitrogen injection for faster cooling, emergency stop button, and various recording and connectivity options such as RS-485 interface and Ethernet connectivity.

Safety Warning: The chambers are not suitable for use with explosive or flammable specimens, as this could lead to hazardous situations.

Catalog excerpts

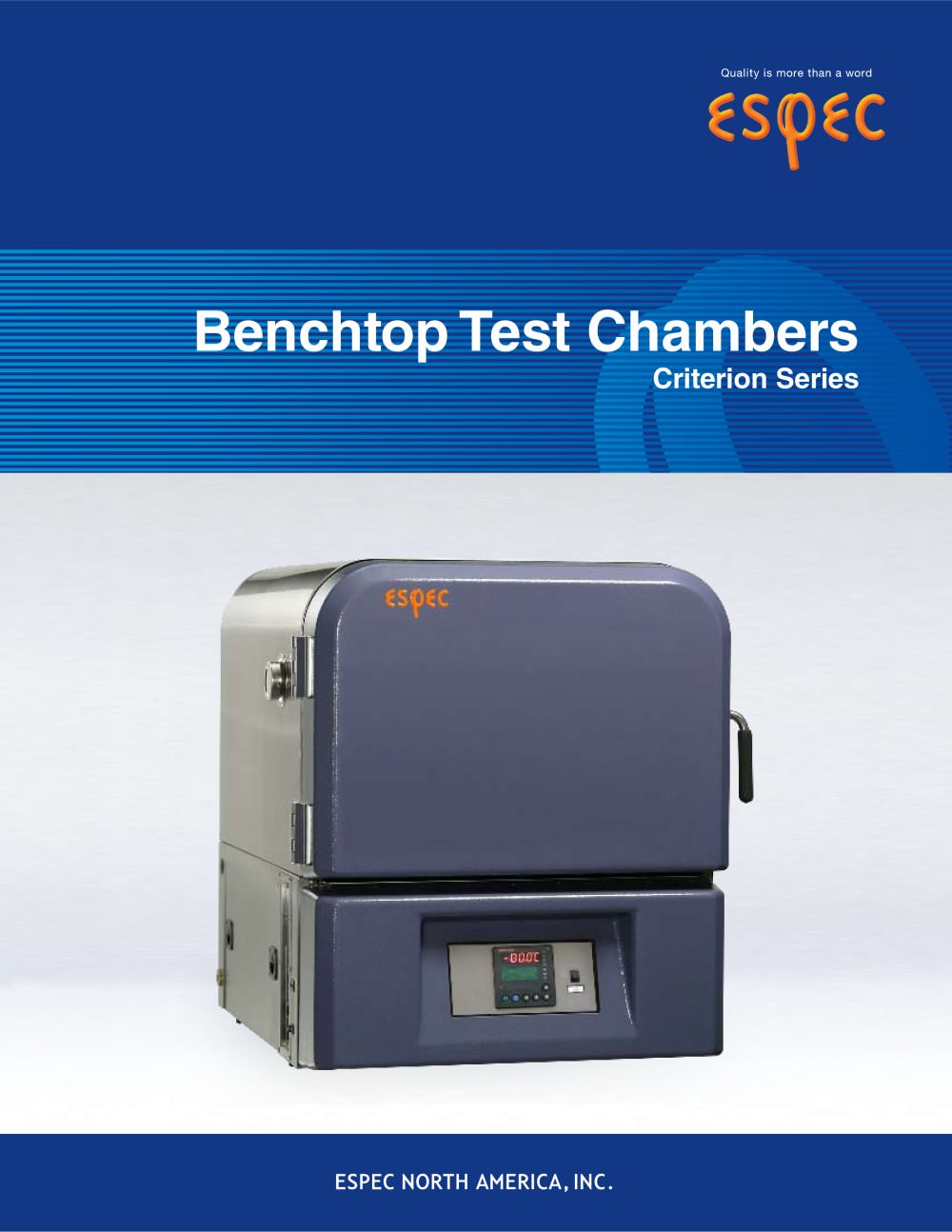

Benchtop Test Chambers Criterion Series

Open the catalog to page 1

2 Criterion Features Larger workspace, narrower exterior ESPEC has reinvented the benchtop chamber with a narrower footprint and increased performance, providing an economical and space-saving solution for cramped labs needing to do a variety of temperature testing. The Criterion models’ 42 liter (1.5 cu. ft.) interior is 85mm (3.5") wider than traditional benchtops, yet the exterior is 20% narrower. Right-to-left airflow provides uniform exposure of test samples. The vertical configuration saves bench space, plus the refrigeration system ventilation allows installation against a wall for even...

Open the catalog to page 2

3 Specifications watlow f4 Controller Popular, easy to use, PID controller for test chambers, stores 40 different profiles (total 256 steps). Includes RS-232C interface with free software. watlow Ethernet gateway option Watlow's EM Gateway provides remote access via Ethernet and a web browser, supporting key control operations such as monitoring, set point changes, and managing alarms, including email notifications. Model BTZ-133 BTZ-175 BTZ-175E Temperature Range -70 to 180°C (-100 to 354°F) Change Rate 3.5°C/m 5°C/m per IEC 60068 3-5 Temperature Fluctuation ± 0.5°C per IEC 60068 3-5 Temperature...

Open the catalog to page 3

http://www.espec.com/ 4141 Central Parkway, Hudsonville, MI 49426, U.S.A. Tel :1-616-896- 6100 Fax :1-616 -896- 6150 ESPEC EUROPE GmbH Dachauer Strasse 11, D-80335, Munchen, Germany Tel :49 -89-1893- 9630 Fax :49 -89-1893-96379 ESPEC ENVIRONMENTAL EQUIPMENT (SHANGHAI) CO.,LTD. F5,ShenHua Financial Building,NO 1 NingBo Road, Huangpu District Shanghai,200002,P.R.China Tel :86 - 21- 51036677 Fax :86 - 21-63372237 ESPEC (MALAYSIA) SDN. BHD. No.10 -1, Jalan Dagang SB 4/2, Taman Sungai Besi Indah Off Jalan Sungai Besi, 43300 Seri Kembangan Selangor Darul Ehsan Malaysia Tel :60-3-8945-1377 Fax :60-3-8945-1287...

Open the catalog to page 4
