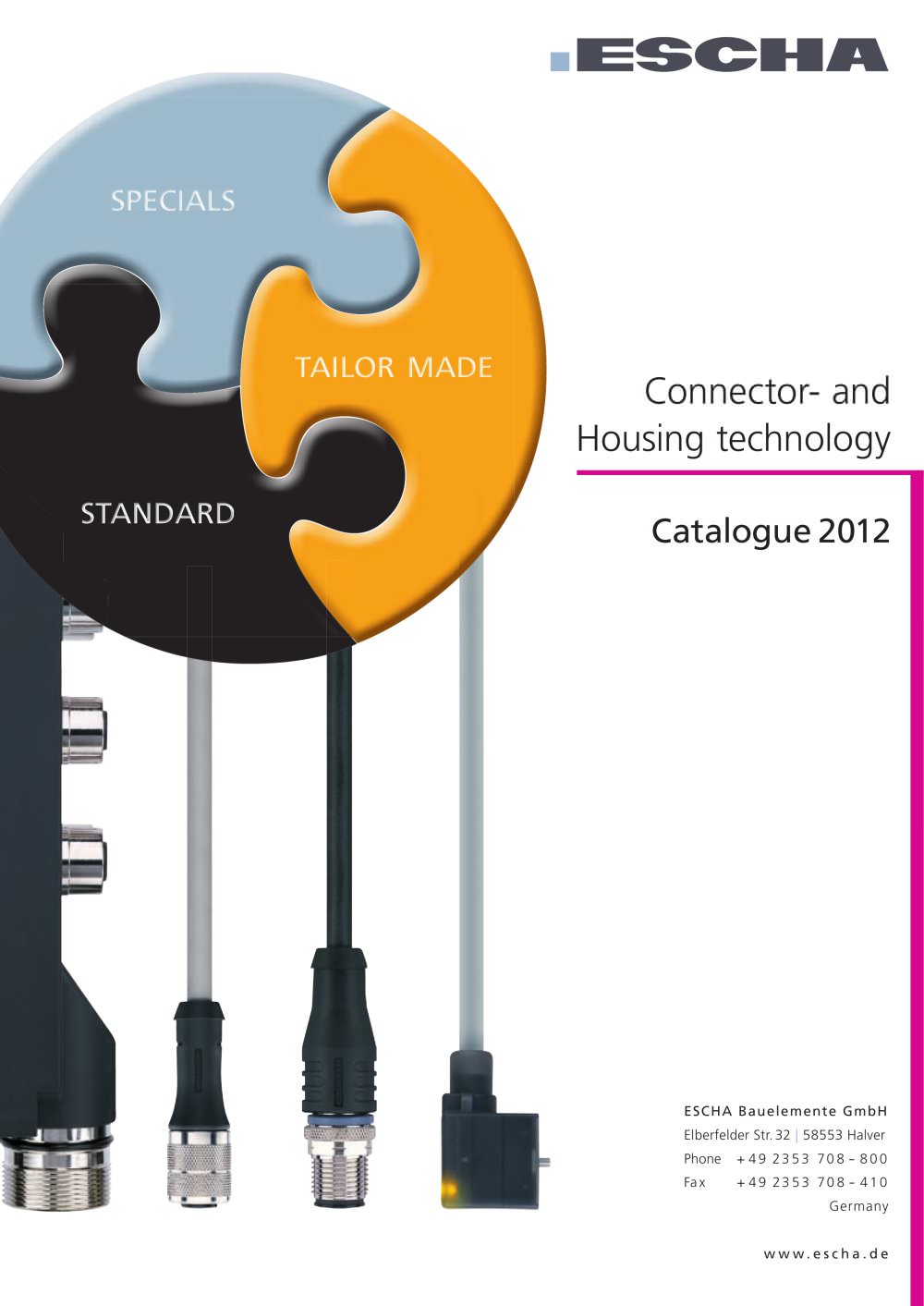

ESCHA General catalogue
82Pages

ESCHAAbout us ESCHA has stood for quality and highest competence in the field of connectivity and enclosure technology for more than 25years.Our production site with more than 400 employees is located in Germany, in Halver in the picturesque Sauerland. Our strengths lie in custom-made products and in a highly in-depth development and production. As the innovation leader we periodically realise product novelties, which bring dynamics to the automation- components market.We permanently continue to develop our standard product range in order to be able to provide you with the appropriate components for your application. Our research and development result in products of highly technical standard. Our strength is the wide variety Based on familiar standard products, we modify the components according to your requirements to meet the conditions of your application with low costs. Tailor-made automation components according to protection class IP67, IP68 and IP69K are our daily business.We provide you with your individual connectivity from one source and in short lead time through professional project management.For your application, you can rely on components which guarantee you more than the safe transmission of signals and performance.We look forward to supporting you. 1.1 >

ESCHA products are worldwide available at our partner and representations. Argentinia | Australia | Austria | Bahrain Barbados | Belarus | Belgium | Bosnia and Herzegowina | Brazil | Bulgaria | Canada Chile | China | Colombia | Costa Rica | Cro- atia | Cyprus | Czech Republic | Denmark Dominican Republic | Ecuador | El Salvador Estonia | Finland | France | Great Britain Greece | Guatemala | Guyana | Honduras Hong Kong | Hungary | Iceland | India | In- donesia | Iran | Ireland | Israel | Italy | Japan Latvia | Lebanon | Lithuania | Macedonia Malaysia | Moldova Republic | Montenegro...

Phone: +49 2353 708 - 800Fax: +49 2353 708 - 410 > The contact details of all our sales partners are available at www.escha.de 1.3 size="-1">

Train By journey with train we advise Hagen as des tination station. This station is integrated into the ICE route system. When will you visit us? Car via A1 Our adress Airplane 58553 Halver | Elberfelder Strae 32 The airports D߼sseldorf/Rhein-Ruhr, Dort- mund and Kln-Bonn remote each with nearly one hours drive from Halver. Concer- ning the tranfer from the station or airport we would like to ask you to contact our employees. Car via A45 From expressway A45, direction L撼denscheid follow highway B229 in direction Halver, Ha- gen, Remscheid. In Halver turn to ones right at the t-cross-way...

Technical information General user information 1.6 1.7Protection class 1.8 ֖ 1.9 Overview PG-thread to metrical thread 1.10Coding of M12x1 Round Connectors 1.10Declaration colour of conductor 1.10 Shielding 1.11 Material information 1.12 1.13 Chemical constancy of applied plastics and elastomers 1.14Standard cable qualities, branches and application areas 1.15 ֖ 1.16Material of cables 1.17 Chemical constancy of outer-jacket 1.18 1.19Conversion American Wire Gauge [AWG] in mmֲ 1.20Conductor build-upAmpacity 1.21Advice for running Declaration 1.22 1.5 >

Comprehensive Information on Connectors Special user information The respective requirements of machinery specifications are binding for the user with connector applications. All ESCHA-connectors are designed and made according to DINVDE0627 (new EN61984). The relevant standards and specifications according to which our products are made and tested are explained in the following. DINVDE0627; June 1986, Connectors and Connecting Devices This standard has been under revision for a long time and will soon be internationally valid. The standard is valid for connectors and connecting devices...

Supplementary information to the technical data stated in the catalogue Characteristic Standard > 1) Note Protection degree housing IEC60529 Data in plugged condition. For more information on IP-degrees of protection page 1.8 1.9 Mechanical service life IEC60512-5/9a Test is done without electrical load Rated voltage IEC60664-1 The stated value is defined in connection with degree of pollution and overvoltage category Degree of pollution IEC60664-1 Current load IEC60512-3/5b Contact resistance IEC60512-2/2a Contact resistance contact-pin/contact-bush in plugged condition throughout adefined...

Degrees of Protection For reasons of safety, connectors must be protected against environmental influences, e.g. dust, foreign bo- dies, touch, humidity and water. In case of industrial connectors, this protection must be provided for by the housing and its locking as well as the insulation on cable outlet. The degrees of protection are indicated by an abbreviation consisting of two constant characteristic letters IP (International Protection) and two following digits for the protection degree. The first digit indicates the pro- tection degree against touch and foreign bodies. The second...

Digit 2 0 Unprotected 1 Protected against dripping water 2 Protected against dripping water when housing is inclined up to 15 3 Protected against spraying water 4 Protected against sprinkling water 5 Protected against water-jet 6 Protected against a strong water-jet 7 Protected against effects due to temporary immersion in water. 8 Protected against effects due to permanent immersion in water. 9K Protected against water by high-pressure steam-jet cleaning Water being vertically sprayed at 60а from both sides must have no damaging effects. Water being sprinkled against the housing from each...

Overview PG-thread vs. Metric thread The interim period for DIN46320 screwing for cables and conducting lines with PG-threadĔ expired on 31.12.1999. Since then, screwing for cables and conducting lines had to comply with the national standard 46319 before this was replaced by EN50262 on 01.03.2001. Comparison PG-thread vs. Metric thread Wrench width for cable screwing according to EN50262 PG Metric thread max.Wrench width [mm] max.Corner length [mm] PG7 M10x1.5 | M12x1.5 16 18 PG9 | PG11 M16x1.5 21 23 PG13.5 M20x1.5 25 28 A | B Coding of M12x1 Connectors To guarantee protection against...
