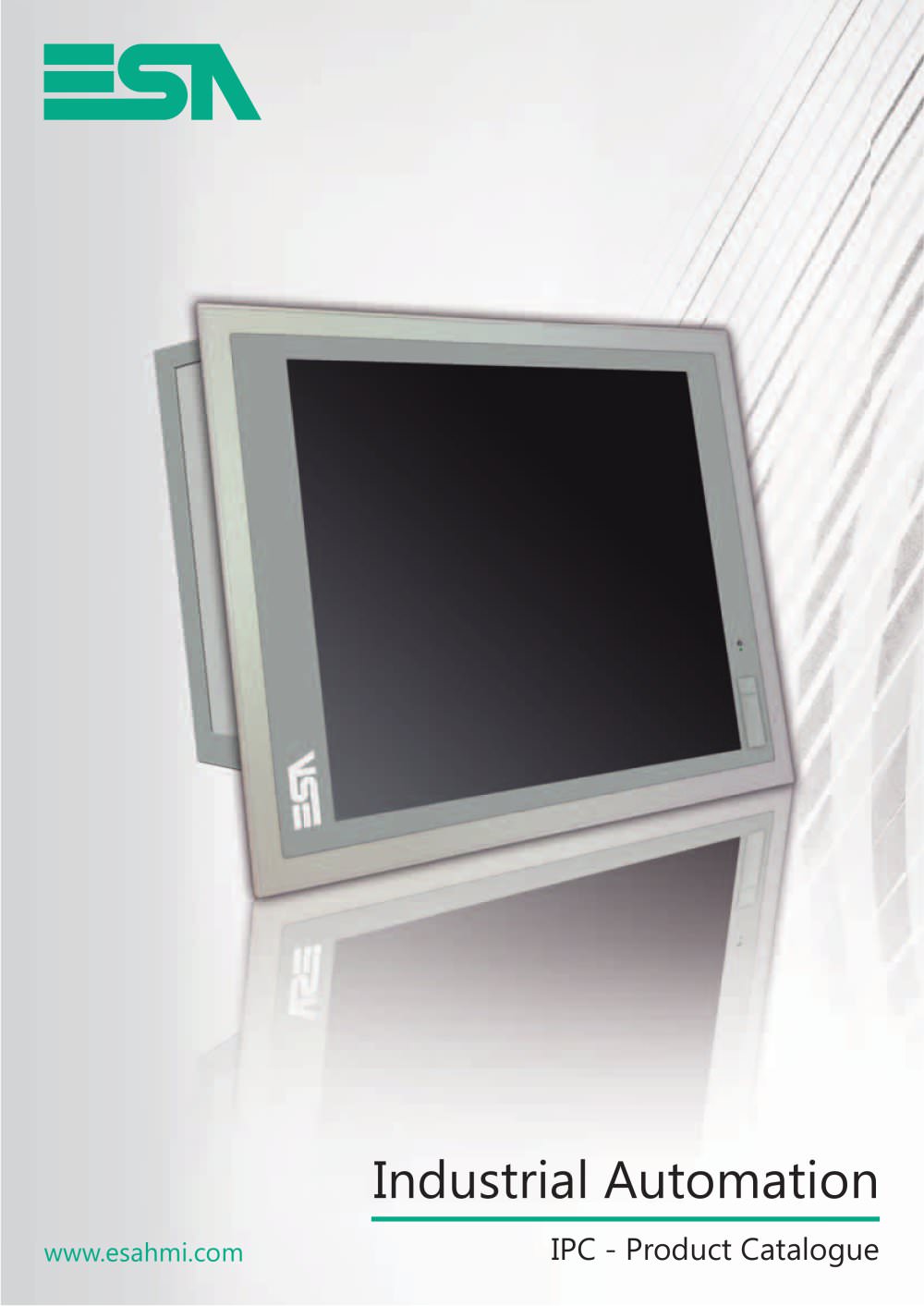

ESA Industrial Automation - Flyer IPC
28Pages

Industrial Automation www.esahmi.com

your hands Making industrial processes simpler, safer and more productive Established in 1975 in Italy, ESA elettronica is now a multinational company with 36 years’ experience in the eld of Industrial Automation. It has foreign branches strategically located in important countries around the world and agents in over 40 nations, offering friendly, attentive customer service and impeccable post-sales assistance. We aim to always to provide the very best solutions for controlling industrial processes in as straightforward, secure and productive a manner as possible. We design all of our...

ESA solution In a world where communication boundaries are constantly evolving, people need to analyse and process a large amount of information before making important decisions in an increasingly shorter amount of time. Our aim is to meet this requirement by offering a “truly successful solution”, not only through state of the art hardware and software products, but also through expertise support by means of our professional, timely and friendly aftersales service. Touch-screen operator terminals and terminals with keypads permitting unrivalled connectivity (in industrial environments and...

Specialist A history characterised by the entrepreneurial spirit and dedicated to offering only the best: 1975 The company was established with the name Tecno System by 4 partners. Year after year, it constantly grew in the electrical equipment manufacturing sector. ESA elettronica was founded and supported Tecno System in the development of electronic equipment, in both custom and made-to-order, for industrial machinery ESA elettronica launched its rst range of HMI products (human-machine interfaces) moving away from made-to-order production and focusing on solutions fully meeting all...

ESA Software & Automation India Pvt. Ltd. Bosnia Herzegovina Czech Republic Costa Rica South Korea United Kingdom Saudi Arabia South Africa United Arab Emirates Asia, India and Australia Africa and Middle East For an updated list of the available countries and distributors please visit www.esahmi.com

ESA’s IPC family offers a complete range of Industrial PC and Monitor, PANEL BOX and VESA version, that can meet any automation requirement. Accurate design, use of high quality components, extreme mechanical sturdiness, together with conguration exibility make the ESA solution perfectly suited to difcult environments, such as those with high concentrations of dust, intense vibrations or particular temperatures. Machines and automatic plants Automatic machines for food and Pharma processing Energy management, utilities, building and security

Polymath Programming Software

HD/SSD extractable drawer Frontal USB with IP66 protection Inox V2A version Touch screen True-Flat Avoid dust accumulation

XS7 Industrial Panel PC range 7” wide Intel® ATOM 1,6 GHz N270 Fanless Intel® ATOM 1,66 GHz Core Duo D510 Dynamic Intel® Celeron Core Duo 1,9 GHz T3100 Intel® Core 2 Duo 2,26 GHz P8400

XS7W7 Display Size Technology Colours Backlight Lamp life (min at 25°C) Resolution Touch screen Touch technology Optional kit INOX version True-at Touch RAID feature 2xHDD Extractable HDD/SSD drawer DVD-RW Sata Fixing brackets Software Operating System 1xVGA + 1x DVI-I * MIC IN + Line IN + Line OUT Clock Back-up with battery Technical specications Power supply Power consumption ** W Protection degree Operating temperature Storage temperature Humidity Weight (Kg) Certications IP 66 front 0...+50 °C -20...+65 °C 90% 2,5 3,0 5,0 CE, cULus (in progress), Atex (Group II – cat.3 G D) /...

Analog resistive (5 wires) Intel® ATOM 1,6 GHz N270 945GSE + ICH7M 533 MHz no a 2 GB DDR2 DIMM 240pin min. 160 GB SATA 2,5” / SSD 8GB IP 66 frontal 0...+50 °C -20...+65 °C 90% 6,5 9,0 11,0 CE, cULus (in progress), Atex (Group II – cat.3 G D) / Environmental EN 60068-2-6/27/30 / Immunity EN 61000-6-2 / Emission EN 61000-6-4 YES - No LED/USB front YES YES internal mounting YES Win7 - Win® XP Pro SP3 MUI - Xpe - CE

Operative system Win7 - Win® XP Pro SP3 MUI - Xpe - CE ** A 24 Vcc - basic config - NO PCI CARDS * digital signal single-link

Analog resistive (5 wires) 1x 1x 1x 1x 1x 4x 1x 1x 1x 1x 1x PCI / USB / PCIe 1x 1xVGA + 1x DVI-I * MIC IN + Line IN + Line OUT 2 x Ethernet 10/100/1000 Mbit 366 x 256 x 81 (mm) 322 x 240 (mm) 6,5 9,0 CE, cULus (in progress), Atex (Group II – cat.3 G D) / Environmental EN 60068-2-6/27/30 / Immunity EN 61000-6-2 / Emission EN 61000-6-4 external optional internal optional

XB300 Industrial Box PC Wide range of powerful FANLESS CPU solutions Modular design allowing 1, 2 or 3 PCI cards Extractable drawer Wide range of interfaces: VGA, DVI, RS232/485, USB, PS2 RAID

XB300 Industrial Box PC range 0 slot PCI Intel® Celeron 1,9 GHz T3100 Intel® Core 2 Duo 2,26 GHz P8400 Intel® Celeron 1,9 GHz T3100 Intel® Core 2 Duo 2,26 GHz P8400

Operative system Win® XP Pro SP3 MUI-Xpe-Win® 7-CE ** A 24 Vcc - basic config - NO PCI CARDS * digital signal only single-link

Intel® Celeron Core Duo 1,9GHz T3100

Frontal USB with IP66 protection OSD Keys for monitor settings Wide range of interfaces: DVI-I *, VGA, USB , RS232

XM7 Industrial Monitors range XM7W7 Display Dimensions Technology Backlight Brightness cd/m2 Contrast Viewing angle H-V Lamp life (min a 25°C) Resolution INOX version - True-at Touch External power supply 220/24VDC Display Dimensions Technology Backlight Brightness cd/m2 Contrast Viewing angle H-V Resolution Video interface VGA/DVI-I */S-Video/Video composite Technical specications Power supply Power consumption W Protection degree Operating temperature Storage temperature Humidity Weight (Kg) Certications Analog resistive (4 wires) Interfaces USB frontal IP66 / USB rear (2.0) Green Led...

XS7 range congurator X LCD 7W7: 7” wide 708: 8,4" 712: 12,1” 715: 15” 717: 17” 719: 19” Front nishing X: INOX w/o frontal USB/LED S: Standard with frontal USB/LED U: Standard w/o frontal USB/LED FANLESS F: Fanless P: No fanless CPUs 1: Atom N270 1,60GHz 2: Atom D510 Core Duo 1,66GHz 3: Celeron core2 T3100 1,9GHz 4: Core2duo P8400 2,26GHz RAM 1: 1 GB 2: 2 GB 3: 4 GB 4: 8 GB Internal Drives 0: No HDD 1: Hard Disk 160 GB SATA 2,5” 2: Hard Disk 250 GB SATA 2,5” 3: 2 x Hard Disk 160 GB SATA 2,5” A: Solid State Disk 8 GB SATA 2,5” B: Solid State Disk 16 GB SATA 2,5” C: Solid State Disk 32 GB SATA...
