How to Choose & Use Vibratory Screen Separators
16Pages

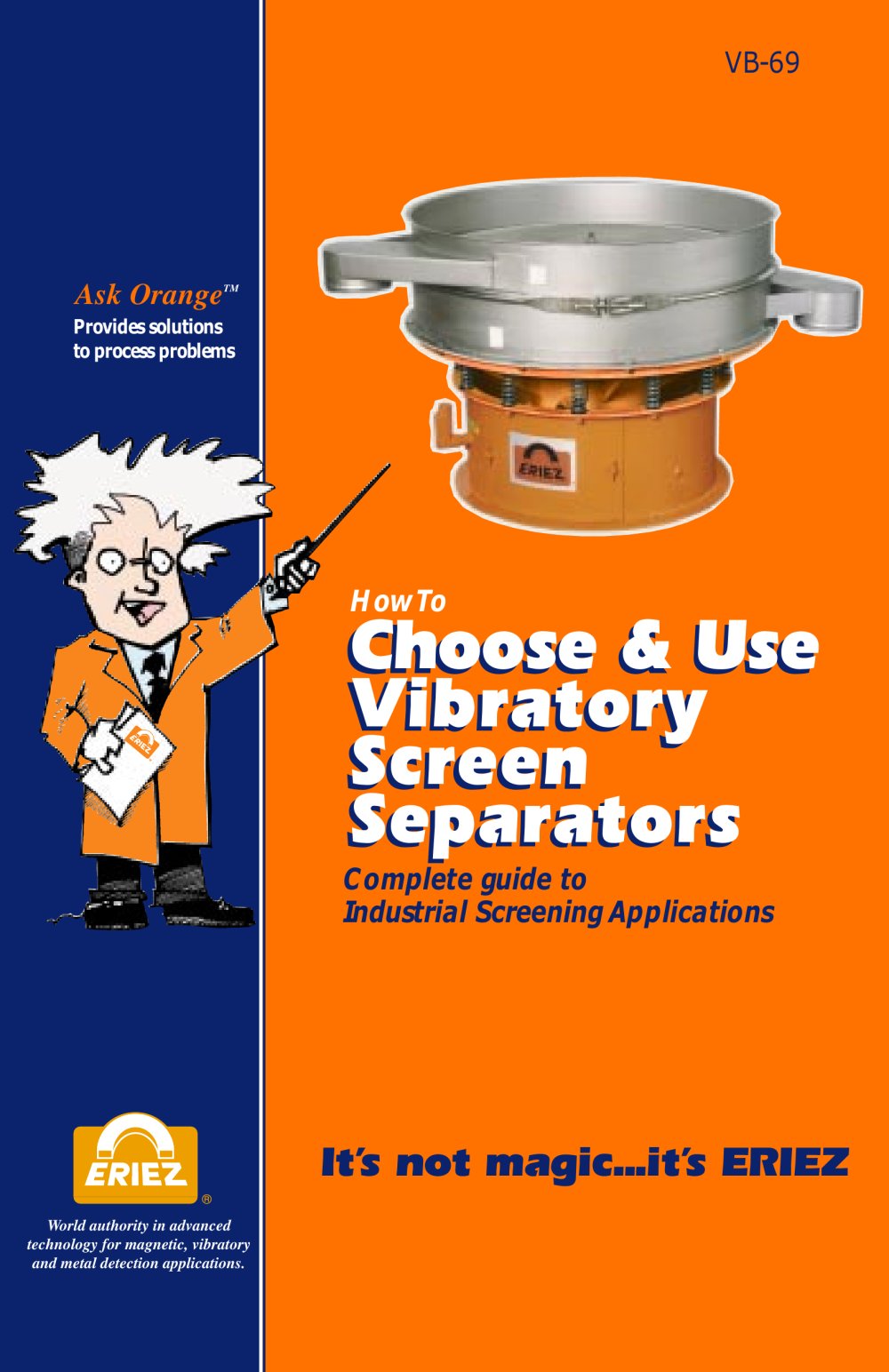

VB-69 Ask Orange > TM Provides solutionsto process problems How ToComplete guide toIndustrial Screening Applications > World authority in advancedtechnology for magnetic, vibratoryand metal detection applications. size="-3">

HOW TO CHOOSE AND USE VIBRATORY SCREEN SEPARATORS PageIntroduction 3 Defining Equipment Terms 3 Circular Vibratory Screeners 4 Syncro-Sizer 4 Syncro-Sieve 5 Material & Process Considerations 5 Decks & Screens for Circular Vibratory Screeners 6 Screen Selection Guide 8 Rectangular Vibratory Screeners 10 Mechanical Screeners 12 Custom Equipment & Applications 14 Contact Eriez 15 The ΓProfessor icon has been developed to help customers identify AskOrange Ask Orange > TM is a collection of process solutioncase studies and how-to reference manualsdesigned to improve understanding and...

HOW TO CHOOSE AND USE VIBRATORY SCREEN SEPARATORS Screen separators are used to remove foreign or other unwanted material from productflows. They can classify dry bulk solids ranging from chunks to fine powders. Screen separators are used to separate solids and liquids in a variety of applications. Eriez provides a broad range of screeners for both wet and dry product separation. This book, How to Choose and Use Vibratory Screen SeparatorsӔ as written, is intended to help users select the correct vibratory screener for their particular process. Rectangular Vibratory Screeners Mechanical...

CIRCULAR VIBRATORY SCREENERS CIRCULAR VIBRATORY SCREENERS Eriez offers two types of circular vibratory screeners...Syncro-Sizer and Syncro-Sieveή. These high capacity gyratory screeners are designed for high viscosity liquid/ solid separation, and wet or dry classification. The separators are easy to use when tuning for specific feed rate, product and separation requirements. Both models are used with circular screens mounted in decks which can be used singularly or in multiples. Syncro-Sizer EriezΒ Syncro-Sizer is a gyratory screen separator designed for high capacity separation by size of...

CIRCULAR VIBRATORY SCREENERS Syncro-Sieve Eriez Syncro-Sieve is an economical, quality fixed- rate separator. Powered by an ғoff-the-shelf rotary motor with an adjustable weight system that can be varied to increase or decrease product retention time, the Syncro-Sieve is ideal for processing slurries, wastewater, minerals, chemicals and other dry or dewatering applications.Under normal use, the Syncro-Sieve will provideyears of trouble-free operation.Typical Flow Patterns...depending on how theeccentric weights are positioned in your Syncro- Sieve, the flow pattern on the screen deck(s) may...

DECKS AND SCREENS FOR CIRCULAR VIBRATORY SCREENERS Circular Screeners - Components Deck Interchangeability There is complete interchangeabilitybetween decks. You can use straight frame or collector frame decks as needed to suit your particular application. Anti-blinding Ball Deck Circular screeners are available in sixdifferent sizes to meet process applications from a trickle of material or tons per hour. Multiple Decks If ball decks are needed to prevent screenblinding, they are available. Slider discs are also available. Perforated Screen Decks Single or simultaneous multiple...

DECKS AND SCREENS FOR CIRCULAR VIBRATORY SCREENERS Choice of Table Frames Distribution Pan When your material needs to be channeledback to the center of the next screen down, a distribution pan is attached to the bottom of the exisiting overhead frame. Wet Feed Distribution Table Frames ChoiceStandard dishedbottom table frames are available for all size separators. Slant bottom and double- diverter frames are available for 36 inch through 60-inch units at no extra cost. Maximum Screen Usage Center Disc Screens The special ZӔ ring used on separatorscreens normally eliminates the center...

Eriez has standard and heavy-duty modelsfor most screening applications. Special units can be ordered with multiple drives for greater capacities. A wide variety of standard and special trays are also available. Grizzlies and Special Trays Vibratory screeners with grizzly trays are used in scalping or coarse screening operations. Screened trays provide greater control than grizzly trays. Screened trays separate material by size, dedusting or dewatering. Either tray choice coupled with Eriez AC drives retains the advantages offer gentle material handling and accurate control of feed rates....

RECTANGULAR (LINEAR) VIBRATORY SCREEN SEPARATORS > A twodeck screening feeder discharges oversizeand undersize products to one side while the desired material flows off the end. Model 65B Two֖deck Screener forseparating clumps and fines from plastic pellets. Model 52A with a stepped screenmounted on a portable cart. Model 70B Vibratory Sand Classifier used inconjunction with woodfired boiler, to reclaimunburned wood for recirculation through boiler.Screens are used to sift out ash and sand. 11 >

MECHANICAL SCREENERS Features Eriez Model HVS Mechanical Screenersare simple, rugged vibrating machines designed to handle a variety of high volume bulk materials screening.The screener is a turned two-mass vibratingsystem excited by a motor-driven eccentric weighted shaft. Corrosion resistant rubber springs transmit the exciting force and can ғfine tune the motion of the trough to optimize the flow rate for a specific application. ? Adjustable-angle rubber springs ? Low profile - minimum headroom ? Flow rates to 100 ft./min. (30 mpm) ? Simple, stable variable controller ? Separately...

Model EMS2 with 36 x 134 tray toscreen sand from scrap aluminum at 1100 F. This Model TMS 30 x 60 screensoversize clumps of ore.Model EMS2 with 24 x 60 tray to screencontamination from coffee. Model HVS 42 x 96 forscreening glass cullet. Model HVS 36 x 96 with overhead drive forscreening chopped fiberglass. Model HVS 18 x 48 forsizing rock salt. Eriez and Syncro-Sizer are registered trademarks of Eriez Manufacturing Co. >

Tube MagnetsEddy Current Separators Magnetic Rails Magnetic Rolls Sheet FannersLifting MagnetsHolding Magnets Coolant Cleaners Magnetic Conveyors Vibrating Conveyors Mechanical Conveyors Vibratory Feeders Volumatic Feeders Bin Vibrators Precipitator Vibrators Screen Separators 14 CUSTOM EQUIPMENT & APPLICATIONS Eriez operates the largest Test and Research facility of its kind for developing customequipment to meet the most demanding applications. Contact a product manager to design the perfect vibratory solution for your specific needs. NOTES: FOR MORE INFORMATION on circular, rectangular...
