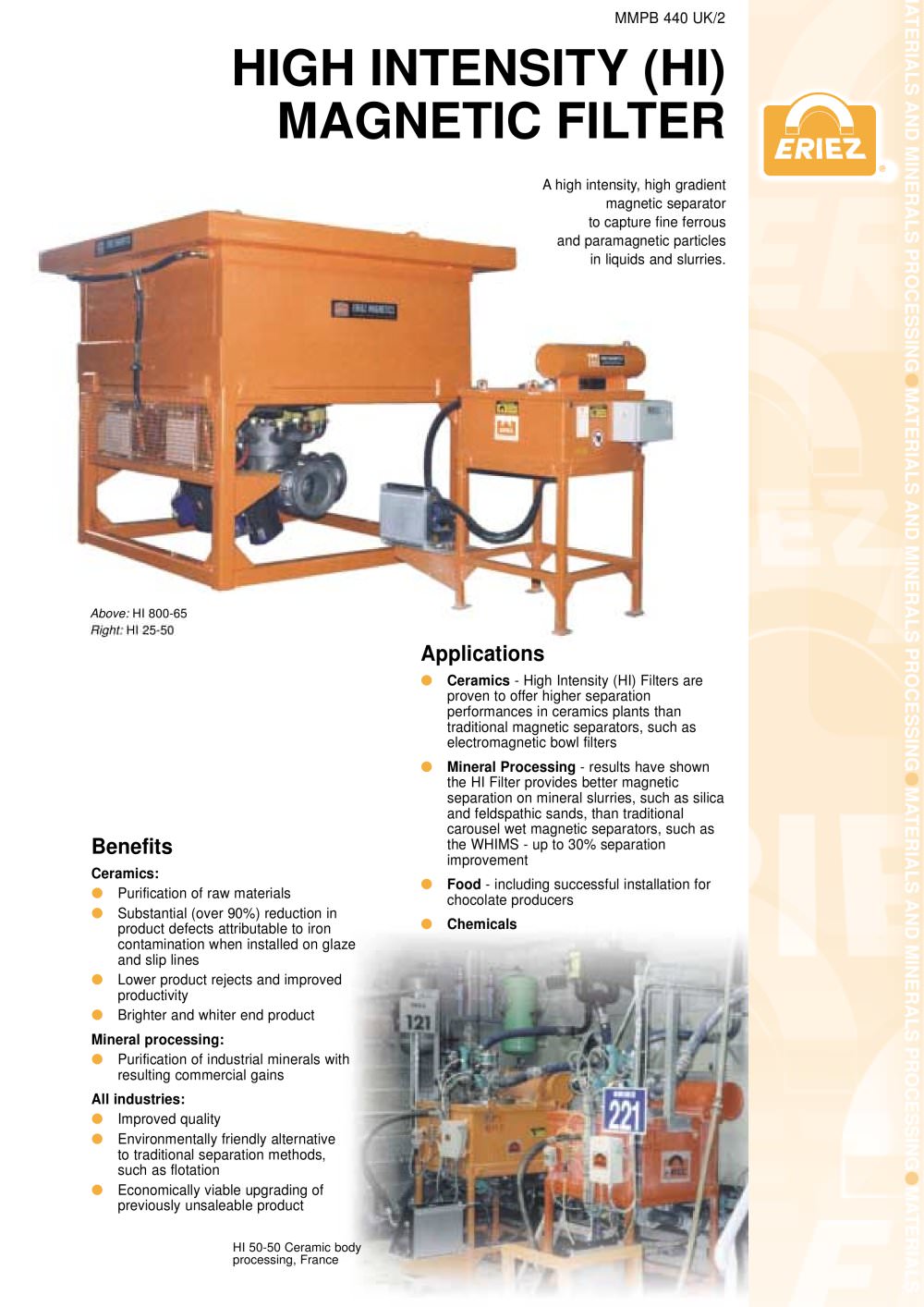

Applications Ceramics - High Intensity (HI) Filters are proven to offer higher separation performances in ceramics plants than traditional magnetic separators, such as electromagnetic bowl filters Mineral Processing - results have shown the HI Filter provides better magnetic separation on mineral slurries, such as silica and feldspathic sands, than traditional carousel wet magnetic separators, such as the WHIMS - up to 30% separation improvement Food - including successful installation for chocolate producers Chemicals MMPB 440 UK/2 A high intensity, high gradient magnetic separator to capture fine ferrous and paramagnetic particles in liquids and slurries. HIGH INTENSITY (HI) MAGNETIC FILTER Above: HI 800-65 Right: HI 25-50 HI 50-50 Ceramic body processing, France Benefits Ceramics: Purification of raw materials Substantial (over 90%) reduction in product defects attributable to iron contamination when installed on glaze and slip lines Lower product rejects and improved productivity Brighter and whiter end product Mineral processing: Purification of industrial minerals with resulting commercial gains All industries: Improved quality Environmentally friendly alternative to traditional separation methods, such as flotation Economically viable upgrading of previously unsaleable product MATERIALS AND MINERALS PROCESSINGMATERIALS AND MINERALS PROCESSINGMATERIALS AND MINERALS PROCESSINGMATERIALS

Open the catalog to page 1

1 Oil level sight glass (hot) 2 Oil exansion tank 3 Oil fill (hot) 4 Pressure release valve 5 Butterfly valve 6 Pneumatic actuator 7 Product/wash distributor 8 Top plate and valve assembly lift eyelets 9 Lift lugs for complete assembly Features A unique, technologically advanced electromagnetic coil design Background fields of 2500, 5000 and 10,000 Gauss Direction of magnetic field into a central core to induce a special, magnetically susceptible matrix which amplifies background fields Controlled feed velocity ensuring maximum residence time in magnetic zone Direction of feed ensures no...

Open the catalog to page 2

Model Capabilities 2500 Gauss For the separation of fine ferromagnetic iron of abrasion or scale. Suited to low viscosity materials. 5000 Gauss For very fine ferromagnetic iron of abrasion or scale, or paramagnetic contaminants such as iron bearing minerals, stainless steel or nickel and cobalt compounds. Ceramic glaze and other materials with higher viscosities also require the use of this model. 10,000 Gauss For ultra fine paramagnetic contaminants. Used to increase product brightness or where product specifications call for extremely high purity. Note: Gauss figures relate to background...

Open the catalog to page 3

HI Filter Dimensions and Weights Eriez Magnetics Europe Limited European Manufacturing, Design and Laboratory Headquarters Bedwas House Industrial Estate, Bedwas, Caerphilly CF83 8YG, UK Telephone: 029 2086 8501 Fax: 029 2085 1314 Int Tel: +44 29 2086 8501 Int Fax: +44 29 2085 1314 E-mail: eriez@eriezeurope.co.uk www.eriez.com MANUFACTURING AFFILIATES IN: AUSTRALIA BRAZIL CANADA CHINA INDIA JAPAN MEXICO SOUTH AFRICA USA Bath Design Centre Ltd 02/03 HIGH INTENSITY (HI) MAGNETIC FILTER Model Background Height Height with Maximum Diameter Weight Watts Field (m) Valves Width for Pipework (kg)...
