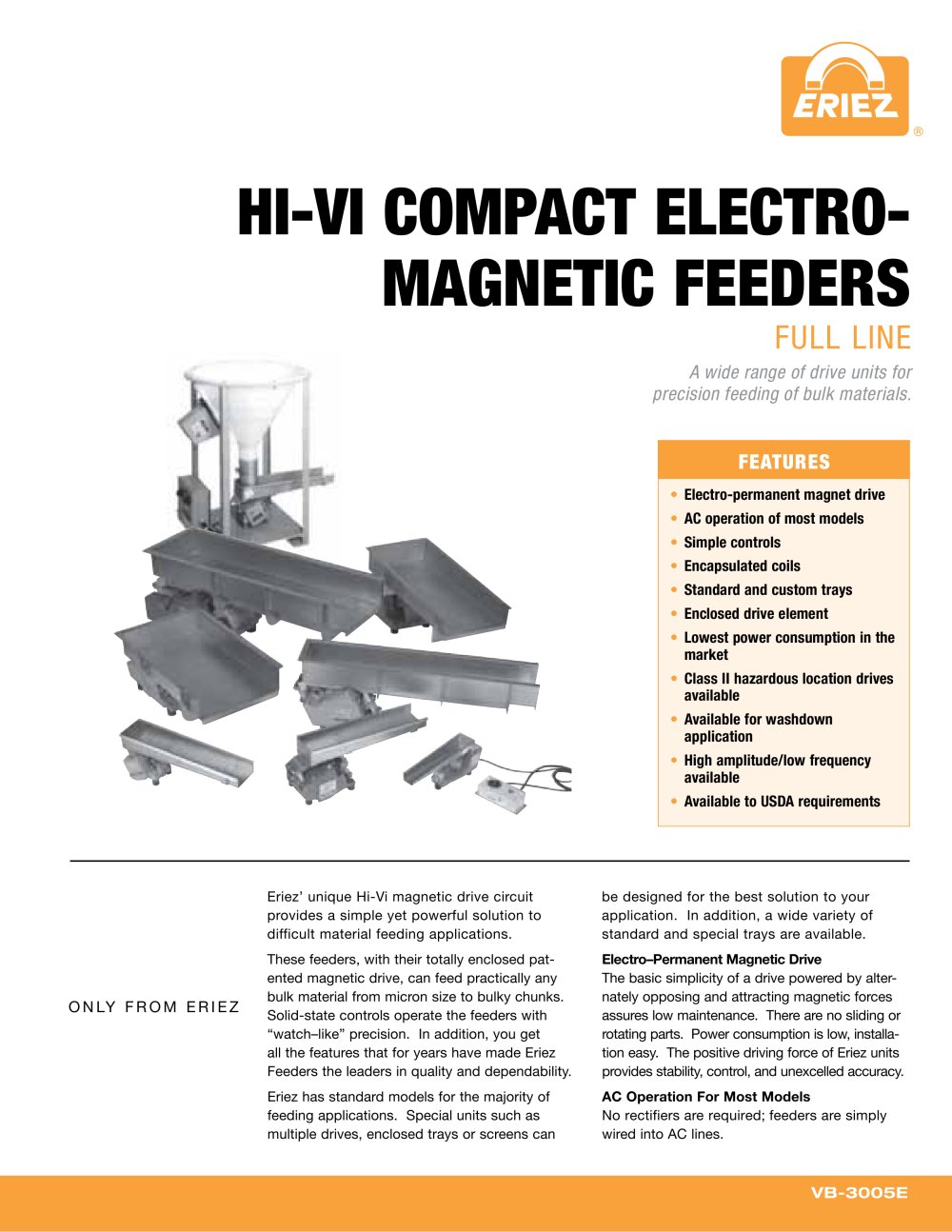

Eriez’ unique Hi-Vi magnetic drive circuit provides a simple yet powerful solution to difficult material feeding applications. These feeders, with their totally enclosed patented magnetic drive, can feed practically any bulk material from micron size to bulky chunks. Solid-state controls operate the feeders with “watch–like” precision. In addition, you get all the features that for years have made Eriez Feeders the leaders in quality and dependability. Eriez has standard models for the majority of feeding applications. Special units such as multiple drives, enclosed trays or screens can be designed for the best solution to your application. In addition, a wide variety of standard and special trays are available. Electro–Permanent Magnetic Drive The basic simplicity of a drive powered by alternately opposing and attracting magnetic forces assures low maintenance. There are no sliding or rotating parts. Power consumption is low, installation easy. The positive driving force of Eriez units provides stability, control, and unexcelled accuracy. AC Operation For Most Models No rectifiers are required; feeders are simply wired into AC lines. VB-3005E • Electro-permanent magnet drive • AC operation of most models • Simple controls • Encapsulated coils • Standard and custom trays • Enclosed drive element • Lowest power consumption in the market • Class II hazardous location drives available • Available for washdown application • High amplitude/low frequency available • Available to USDA requirements ONLY FROM ERIEZ FEATURES HI-VI COMPACT ELECTROMAGNETIC FEEDERS FULL LINE A wide range of drive units for precision feeding of bulk materials.

2 HI-VI ELECTROMAGNETIC Simple Controls Eriez electromagnetic feeder controls are reliable, state-of-the-art, solid-state units that deliver superior feed rate control. By varying the voltage to the feeder, coupled with Eriez AC circuit, excellent linearity is acheived. Standard controls come in NEMA 12 (IP54) enclosures. Special enclosures are also available. Controls can be provided with manual or automatic (analog signal) adjustment to address many applications. Special design controls are also available to address your unique requirements. Encapsulation The coil and magnet in Eriez’ drive...

3 SPECIFICATIONS MODEL 6C FOR FEEDING UP TO 1,600 POUNDS (727 kg) PER HOUR Light capacity feeder ideal for applications demanding top performance at budget prices. Common applications include metering small quantities of dry materials or conveying small parts. Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 15 Watts Full Load Power Input 0.5 Amp at 115V Control Model FT Net Feeder Weight 25 lb. (11 kg) MODEL 15A FOR FEEDING UP TO 2 TONS (1.8 MT) PER HOUR The smallest AC feeder in the line, this economical model will give precise feeding of the most minute amounts of materials....

4 SPECIFICATIONS MODEL 36C FOR FEEDING UP TO 7 TONS (6.3 MT) PER HOUR All of these models are completely enclosed so the drive element is protected against damage or decreased efficiency due to contamination by moisture and foreign materials. Special construction is also available for installation in those areas where Class II, Group F, G equipment would normally be used. Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 38 Watts Full Load Power Input 2.9 Amp at 115V Control Model N12-UN-6A Net Feeder Weight 70 lb. (32 kg) INCHES (MILLIMETERS) C B 23-7/16 [595] E F 5 [127]...

5 SPECIFICATIONS MODEL 48A FOR FEEDING UP TO 12 TONS (10.9 MT) PER HOUR No rectifiers are needed with this Hi-Vi feeder. Merely wire into any AC line. A full feed range is provided by potentiometer or variable auto-transformer type controls. Varying the applied line voltage from zero to 100% allows precise feeding from a few ounces to 12 tons per hour. Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 38 Watts Full Load Power Input 2.0 Amp at 115V Control Model FT Net feeder Weight 100 lb. (45 kg) MODEL 48A TRAY D E F TYPE in mm in mm in mm Narrow Flat 7-1/2 191 - - - - Narrow...

6 SPECIFICATIONS MODEL 56C MODEL 66C Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 75 Watts Full Load Power Input 6.6 Amp at 115V Control Model N12-UN-15A Net Feeder Weight 192 lb. (87 kg) 7 [178] 9-1/2 [241] 3/8-16 x 3/8 [10] DEEP (4) MOUNTING HOLES A C F 23-13/16 [605] E 10-5/16 [262] 5-7/16 [138] 27-7/16 [696] B INCHES (MILLIMETERS) G MODEL 56C FOR FEEDING UP TO 20 TONS (18.1 MT) PER HOUR Using Eriez’ unique energy efficient AC drive, the Model 56C Vibratory Feeder has been computer designed to meet the most rigorous of international standards to keep pace with the...

7 INCHES MILLIMETERS B 15 381 F 4 1/2 114 4 1/2 114 12 305 D 6 E 152 5 127 6.. E C A 7 178 SPECIFICATIONS MODEL 52A MODEL 52A FOR FEEDING UP TO 25 TONS (22.7 MT) PER HOUR This compact but heavy duty unit is ideal for handling abrasives, slag, coal, grain, or wherever precisely controlled feeding of large volumes of dry bulk materials is required. The patented Eriez permanent magnet/electromagnet AC drive results in greatly reduced power consumption compared to competitor’s units which require a rectifier power source. The simplicity of the drive virtually eliminates maintenance. Power Supply...

9 SPECIFICATIONS MODEL HS-36 MODEL HS-42 MODEL HS-36 FOR FEEDING UP TO 200 CU FT/HR (5.7 M3) PER HOUR Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 75 Watts Full Load Power Input 2.2 Amp at 115V Control Model N12-UN-6A Net Feeder Weight 70 lb. (32 kg) G 1/4-20x3/8 [10] DEEP (4) MOUNTING HOLES A C 23-3/8 [594] E F 5-5/16 [135] B 6-5/16 [160] 7-1/8 [181] 5 [127] INCHES (MILLIMETERS) Available for Class II, Division I, Group F, G Environments. TRAY D E F TYPE in mm in mm in mm Narrow Flat 12-15/16 328 30-1/16 963 - - Medium Flat 12-15/16 328 35 887 - - Wide Flat 12-15/16...

11 MODEL HS-66 FOR FEEDING UP TO 600 CU FT (17 M3) PER HOUR Power Supply 115V, 60 Cycle, Single Phase Full Load Power Consumption 104 Watts Full Load Power Input 3.2 Amp at 115V Control Model N12-UN-6A Net Feeder Weight 290 lb. (132 kg) INCHES (MILLIMETERS) G A C F 24-3/8 [619] E 13 [330] 4-15/16 [125] 1/2-13x3/8 [10] DEEP (4) MOUNTING HOLES B 10-1/4 [260] 12-1/4 [311] SPECIFICATIONS MODEL HS-66 A B TRAY Tray Length Tray Width C TYPE in mm in mm in mm Narrow Flat 42 1067 12 305 4 102 Medium Flat 36 914 14 356 4 102 Wide Flat 30 762 16 406 4 102 TRAY D E F G TYPE in mm in mm in mm in mm Narrow...
