Hand-Held Metal Detectors

Hand-Held Metal Detectors

Product catalog summary

Overview: The HandyTec® Metal Detector PT102UK5 is a precise tool designed to identify the exact position of small metal pieces, including ferrous, non-ferrous, and stainless steel. It is an essential companion for in-line metal detection processes.

Features:

Detects metal spheres as small as 1mm (1.2mm Fe at 11mm).
Capable of detecting all metal types.
Robust and easy-to-hold design.
Equipped with visual and audio alarms for metal detection.
Automatic reset functionality.

Benefits:

User-friendly with a simple 'plug in and go' setup, requiring no adjustments.

Specifications:

Housing made of Polyamide.
Weight: 720g.
Color: Yellow.
Features a 'Power on' LED indication.
Audio and visual detection alarms.
Detection performance for 1mm ferrous or non-ferrous metals.
Switch mode power supply with a voltage range of 100 to 230V, 50 or 60Hz.
Compatible with plug types from the UK, Europe, USA, and Japan.

Important Note: A metal-free area is required around the product being checked.

Additional Options: Single-sider and aperture type detectors are available upon request.

Applications: Suitable for use in industries such as plastics, paper, textiles, food, and packaging.

Contact Information: Eriez Magnetics Europe Limited, Bedwas House Industrial Estate, Greenway, Bedwas, Caerphilly, CF83 8YG, UK. Phone: +44 (0)29 2086 8501, Fax: +44 (0)29 2085 1314, Email: [email protected], Website: www.eriez.com

Manufacturing Affiliates: Located in Australia, Brazil, China, India, Japan, Mexico, South Africa, and the USA.

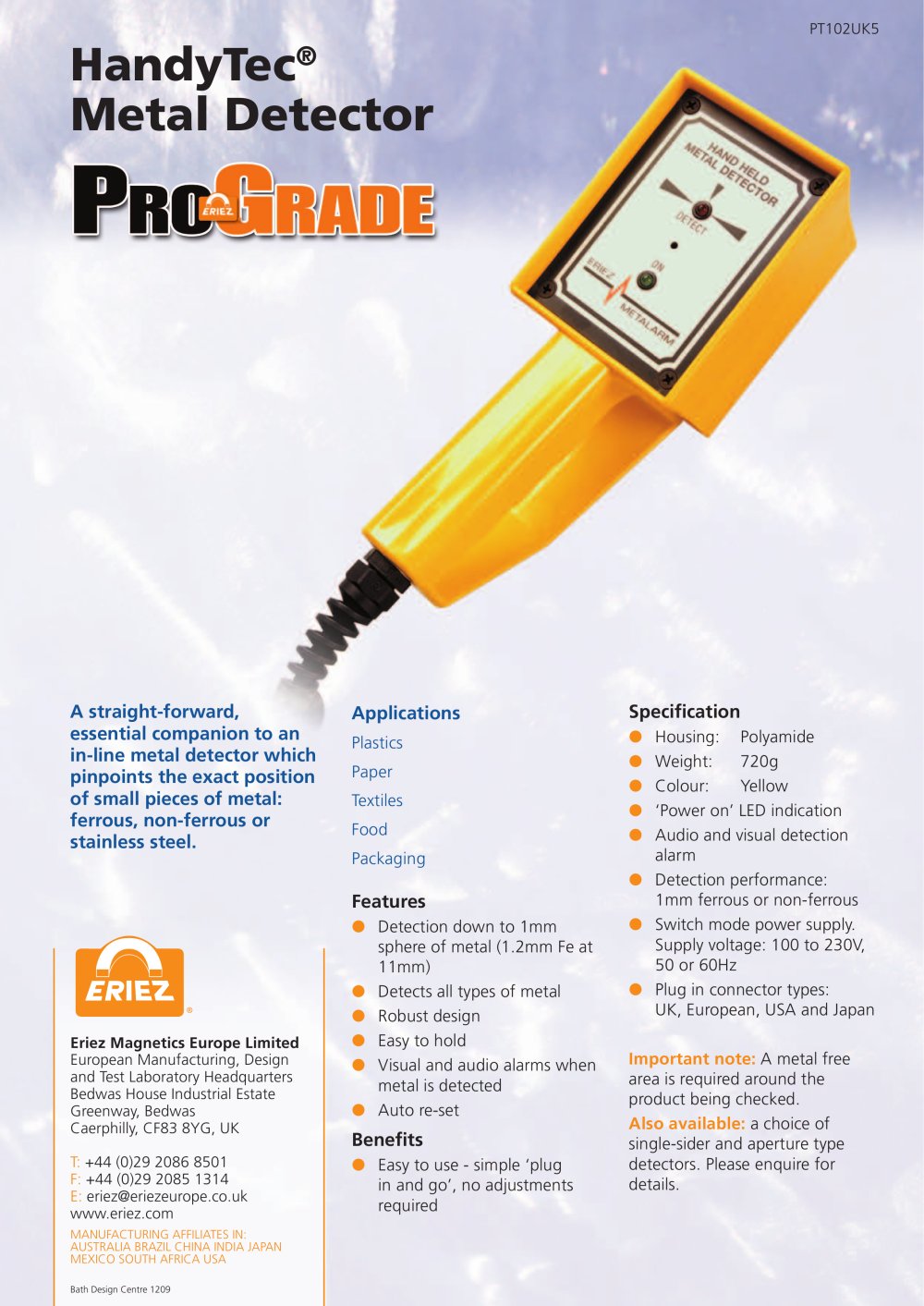

Catalog excerpts

Metal Detector in-line metal detector which pinpoints the exact position of small pieces of metal: stainless steel. Eriez Magnetics Europe Limited European Manufacturing, Design and Test Laboratory Headquarters Bedwas House Industrial Estate Greenway, Bedwas AUSTRALIA BRAZIL CHINA INDIA JAPAN MEXICO SOUTH AFRICA USA Bath Design Centre 1209 • Detects all types of metal • Robust design • Visual and audio alarms when • Auto re-set • Easy to use - simple 'plug • Housing: Polyamide • Colour: Yellow • 'Power on'LED indication • Audio and visual detection • Detection performance: • Switch mode power supply. • Plug in connector types: Important note: A metal free area is required around the product being checked. Also available: a choice of single-sider and aperture type detectors. Please enquire for

Open the catalog to page 1

Eriez and Eriez Magnetics are registered trademarks of Eriez Manufacturing Co. ©2002 ERIEZ MAGNETICS ALL RIGHTS RESERVED ® World Authority in Advanced Technology for Magnetic, Vibratory and Metal Detection Applications HEADQUARTERS: 2200 ASBURY ROAD, P.O. BOX 10608, ERIE, PA 16514-0608 U.S.A. Telephone 814/835-6000 • 800/345-4946 • Fax 814/838-4960 • International Fax 814/833-3348 Web Site: http://www.eriez.com e-mail: [email protected] MANUFACTURING FACILITIES IN: AUSTRALIA • BRAZIL • CANADA • INDIA • JAPAN • MEXICO • SOUTH AFRICA • UNITED KINGDOM • UNITED STATES 202-3.5M-CC-GP FEATURES • Electronics...

Open the catalog to page 2
