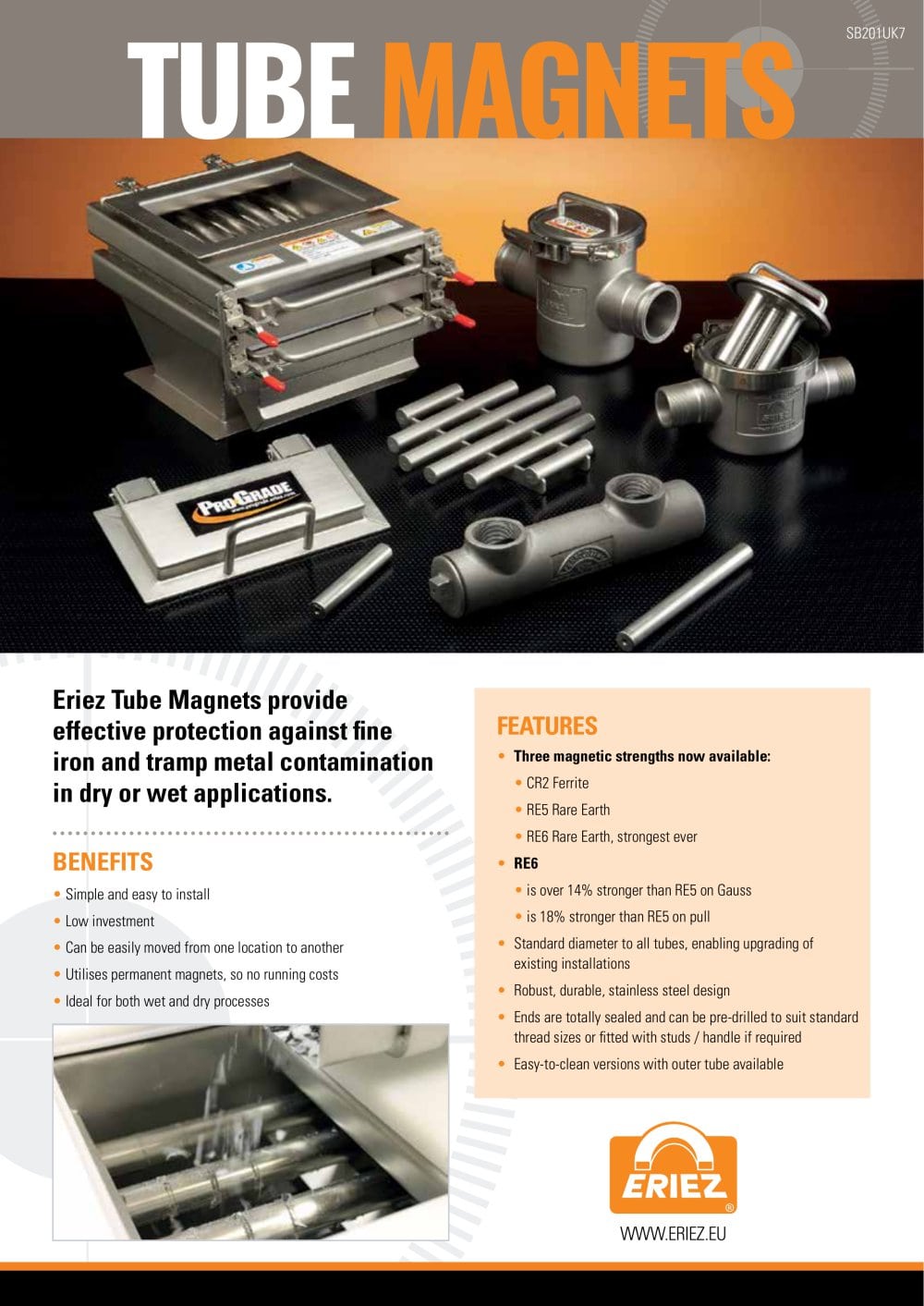

TUBE MAGNETS Eriez Tube Magnets provide effective protection against fine iron and tramp metal contamination in dry or wet applications. FEATURES • hree magnetic strengths now available: T • CR2 Ferrite • RE5 Rare Earth • RE6 Rare Earth, strongest ever • Simple and easy to install • is over 14% stronger than RE5 on Gauss • is 18% stronger than RE5 on pull • Can be easily moved from one location to another • Standard diameter to all tubes, enabling upgrading of existing installations • Utilises permanent magnets, so no running costs • Ideal for both wet and dry processes • Robust, durable, stainless steel design • Ends are totally sealed and can be pre-drilled to suit standard thread sizes or fitted with studs / handle if required • Easy-to-clean versions with outer

Open the catalog to page 1

TUBE MAGNET PULL ANALYSIS 3000 RE6 Rare Earth 2500 RE5 Rare Earth 3 Distance (mm) from tube TUBE MAGNET MODELS AND APPLICATIONS Model CR2 Ferrite Application Removal of coarse and strongly magnetic particles Removal of very fine iron, such as iron of abrasion, which is difficult to attract and hold owing to its small mass Improved strength and performance 18% more pulling power than RE5 Rare Earth for removal of weakly magnetic contaminants *Mechanical shock can cause degradation to field strength as can excessive temperatures. All magnetic materials have a maximum operational temperature....
