Shred 1 Ballistic Separator

Shred 1 Ballistic Separator

Shred 1 Ballistic Separator

Product catalog summary
Introduction to Ballistic Separator: The Shred1 Ballistic Separator by Eriez is designed to efficiently separate iron-rich ferrous materials from mixed metals and waste in the post drum magnet flow. It produces three distinct fractions: a premium low-copper ferrous product, a traditional mixed metal shred, and a heavy/light/waste mix.
Ballistics Science: Ballistics involves the mechanics of projectiles, focusing on their flight, behavior, and effects. This technology is applied to achieve desired separation performance in recycling processes.
Product Features: The Shred1 automatically produces a premium low-copper shred, addressing the increasing demand for high-grade ferrous products in the steel industry. This is particularly important as the availability of pure industrial scrap declines, leading to more consumer waste processing.
Fraction Details:
  • Fraction 1: Produces highly magnetic metals, comprising 70-80% of the flow with less than 0.2% copper content. This high-value product is in growing demand.
  • Fraction 2: Contains lightly magnetic metals, making up 10-20% of the flow. It includes mixed metals like copper and aluminum with steel components, suitable for hand sorting.
  • Fraction 3: Consists of heavy and light materials, 5-7% of the flow, including heavy steel objects and light materials like fluff and rubber, which can be sorted manually.
Contact Information: Eriez Magnetics Europe Limited, located in Caerphilly, UK, provides manufacturing and design services with affiliates worldwide.
See more

Catalog excerpts

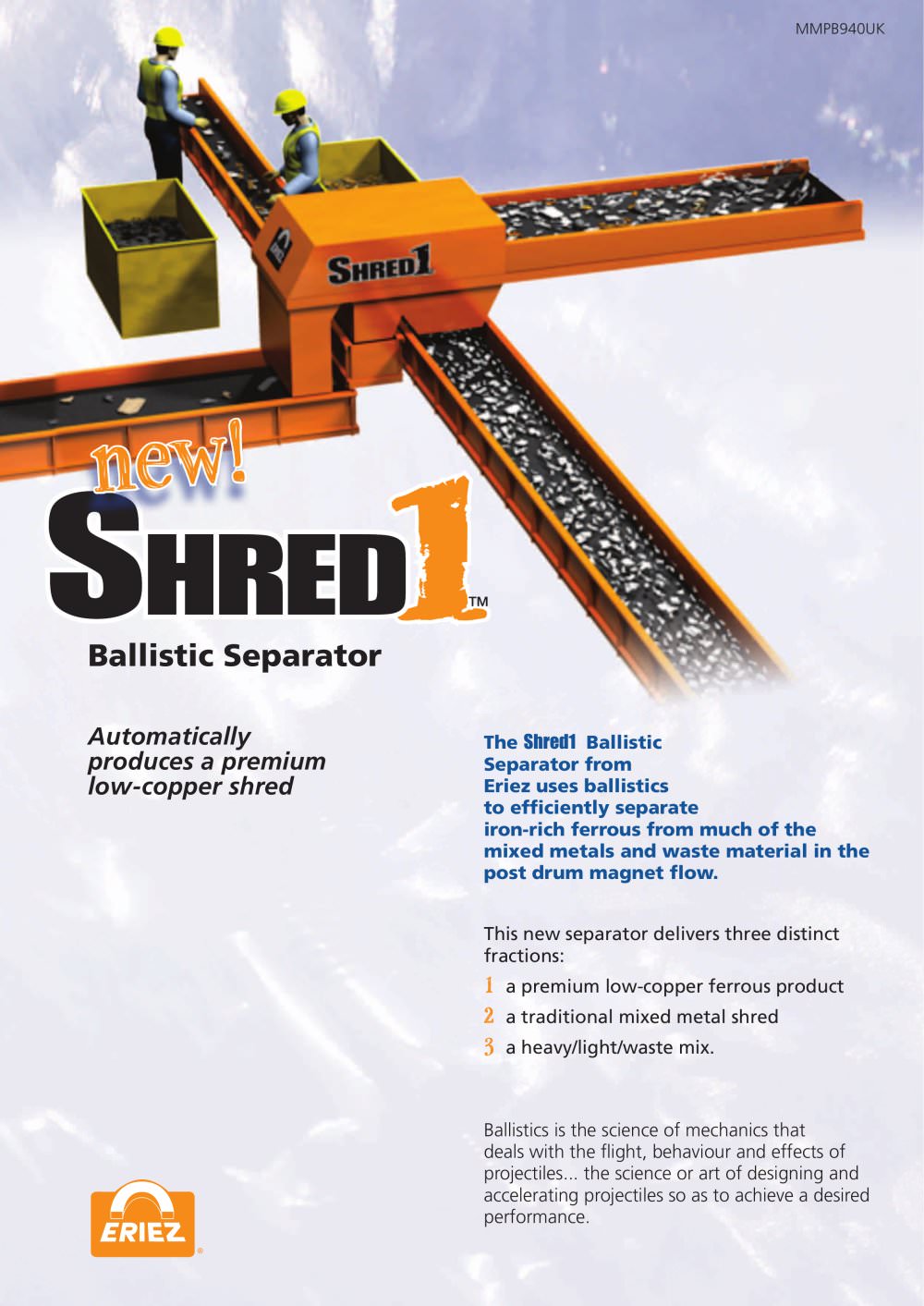

Shred 1 Ballistic Separator-1

MMPB940UK Ballistic Separator Automatically produces a premium low-copper shred The Shredl Ballistic Separator from Eriez uses ballistics to efficiently separate iron-rich ferrous from much of the mixed metals and waste material in the post drum magnet flow. This new separator delivers three distinct fractions: 1 a premium low-copper ferrous product 2 a traditional mixed metal shred 3 a heavy/light/waste mix. Ballistics is the science of mechanics that deals with the flight, behaviour and effects of projectiles... the science or art of designing and accelerating projectiles so as to achieve a desired performance.

 Open the catalog to page 1
Shred 1 Ballistic Separator-2

The value of a premium ferrous project Clearly, worldwide demand for steel is on the rise. Scrap processors able to supply steel mills with a very high grade ferrous product are positioned well for the future. However, with decline in availability of pure, high quality industrial scrap, processors are shredding more consumer waste than ever before. Post consumer waste items like vehicles and appliances contain lots of motors, condensers and wire harnesses as well as cast aluminium pieces, all of which have steel housing, shafts or cores. This presents a big problem for most yards using current...

 Open the catalog to page 2
