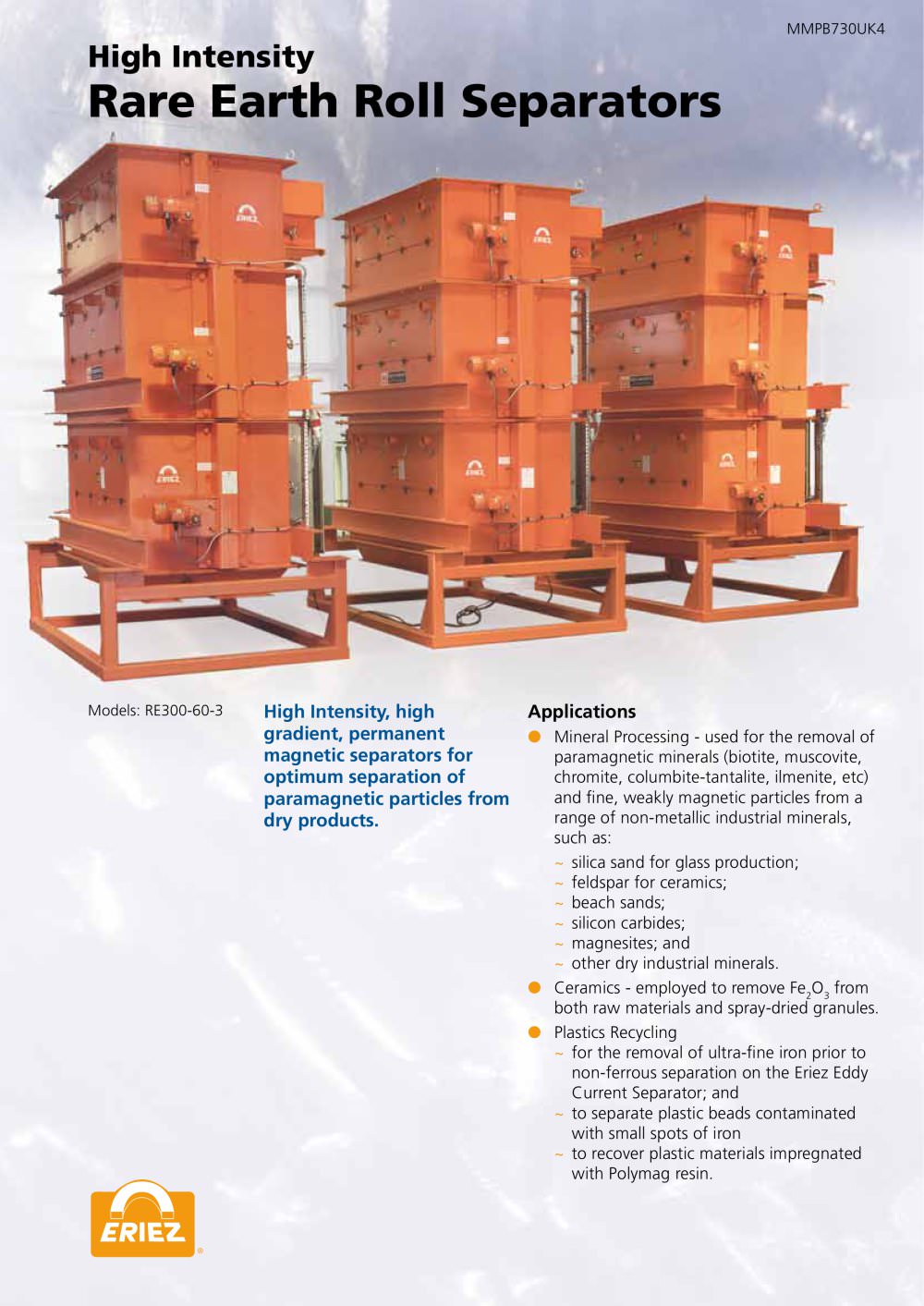

High Intensity Rare Earth Roll Separators High Intensity, high Applications gradient, permanent l Mineral Processing - used for the removal of magnetic separators for paramagnetic minerals (biotite, muscovite, chromite, columbite-tantalite, ilmenite, etc) optimum separation of and fine, weakly magnetic particles from a paramagnetic particles from range of non-metallic industrial minerals, dry products. such as: ~ silica sand for glass production; ~ feldspar for ceramics; ~ beach sands; ~ silicon carbides; ~ magnesites; and ~ other dry industrial minerals. l Ceramics - employed to remove Fe2O3 from both raw materials and spray-dried granules. l Plastics Recycling ~ for the removal of ultra-fine iron prior to non-ferrous separation on the Eriez Eddy Current Separator; and ~ to separate plastic beads contaminated with small spots of iron ~ to recover plastic materials impregnated with Polymag resin.

Technically advanced, high magnetic intensity, dry magnetic separator Improved separation performance, giving: ~ lower Fe2O3 contamination ~ lower rejects ~ higher product quality and value ~ increased productivity from finite mineral reserves by recovering material previously unsaleable owing to high contamination levels ~ overall increase in market value and share Reliable and consistent separation over a long period Highest grade, high stability Rare Earth magnet material used of time Adjustable feed rates, roll speeds and splitter position ~ Variable grade and recovery to suit current market...

Principle of Operation Hopper Feed Material Head Pulley Splitter Magnetic Fraction Non-magnetic Fraction l Simple pulley and belt system within an outer framework. l Material is fed onto the belt by a chute or vibratory feeder. l Belt carries material into the magnetic field of the head pulley. l Rotating magnet attracts weakly magnetic particles. l Trajectory of attracted particles changes, enabling their separation from non-magnetic material by careful positioning of a partition (splitter). Top: 4 off Model RE-300-40-3 Left: Lab RE-75 in action Above and right: RE-75 Roll Cantilever style with...

Dimensions and weights Model Overall unit length (mm) Overall unit width (mm) Overall unit height (mm) Above: RE-100 Roll recycling plastics Right: 3 Pass RE-300-40-3 Eriez Magnetics Europe Limited European Manufacturing, Design and Test Laboratory Headquarters Bedwas House Industrial Estate Greenway, Bedwas Caerphilly, CF83 8YG, UK T: +44 (0)29 2086 8501 F: +44 (0)29 2085 1314 E: [email protected] www.eriez.com MANUFACTURING AFFILIATES IN: AUSTRALIA BRAZIL CHINA INDIA JAPAN MEXICO SOUTH AFRICA SPAIN USA Bath Design Centre 0312 Notes: Dimensions and weights are for single stage only and...
