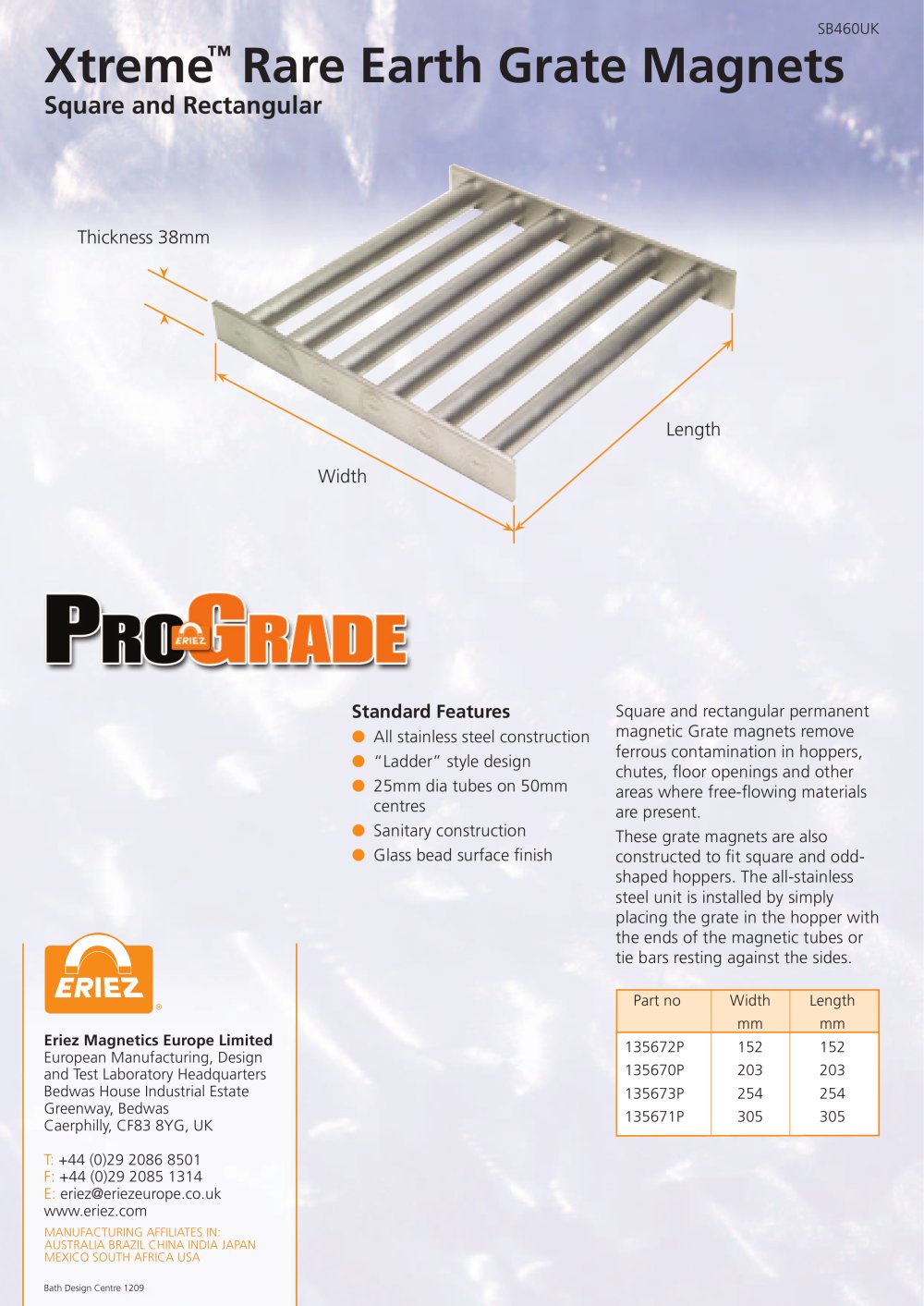

SB460UK Xtreme Rare Earth Grate Magnets Square and Rectangular Thickness 38mm Standard Features ٕ All stainless steel construction "Ladder" style design Օ 25mm dia tubes on 50mm centres Sanitary construction > Glass bead surface finish Square and rectangular permanent magnetic Grate magnets remove ferrous contamination in hoppers, chutes, floor openings and other areas where free-flowing materials are present. These grate magnets are also constructed to fit square and odd-shaped hoppers. The all-stainless steel unit is installed by simply placing the grate in the hopper with the ends of the magnetic tubes or tie bars resting against the sides. Part no Width Length mm mm 135672P 152 152 135670P 203 203 135673P 254 254 135671P 305 305 Eriez Magnetics Europe Limited European Manufacturing, Design and Test Laboratory Headquarters Bedwas House Industrial Estate Greenway, Bedwas Caerphilly, CF83 8YG, UK T: +44 (0)29 2086 8501 F: +44 (0)29 2085 1314 E: eriez@eriezeurope.co.uk www.eriez.com MANUFACTURING AFFILIATES IN: AUSTRALIA BRAZIL CHINA INDIA JAPAN MEXICO SOUTH AFRICA USA Bath Design Centre 1209
