ProGrade Round Grate

Product catalog summary

Company Overview: Eriez Magnetics Europe Limited is headquartered in Caerphilly, UK, with manufacturing affiliates in several countries including Australia, Brazil, China, India, Japan, Mexico, South Africa, and the USA.

Product Description: The document describes round permanent magnetic grate magnets designed to remove ferrous contamination from hoppers, chutes, and other areas with free-flowing materials. These magnets are constructed to fit round processing lines or hoppers.

Standard Features:

All stainless steel construction ensuring durability and sanitary conditions.
Ladder style design with 25mm diameter tubes on 50mm centers.
Sanitary construction with a glass bead surface finish.

Product Specifications:

Part numbers and corresponding diameters: 135686P (152mm), 135689P (203mm), 135691P (254mm), 135697P (305mm).
Thickness of the magnets is 38mm.

Installation: The grate magnets are installed by placing them in the hopper, with the ends of the magnetic tubes or tie bars resting against the sides.

Catalog excerpts

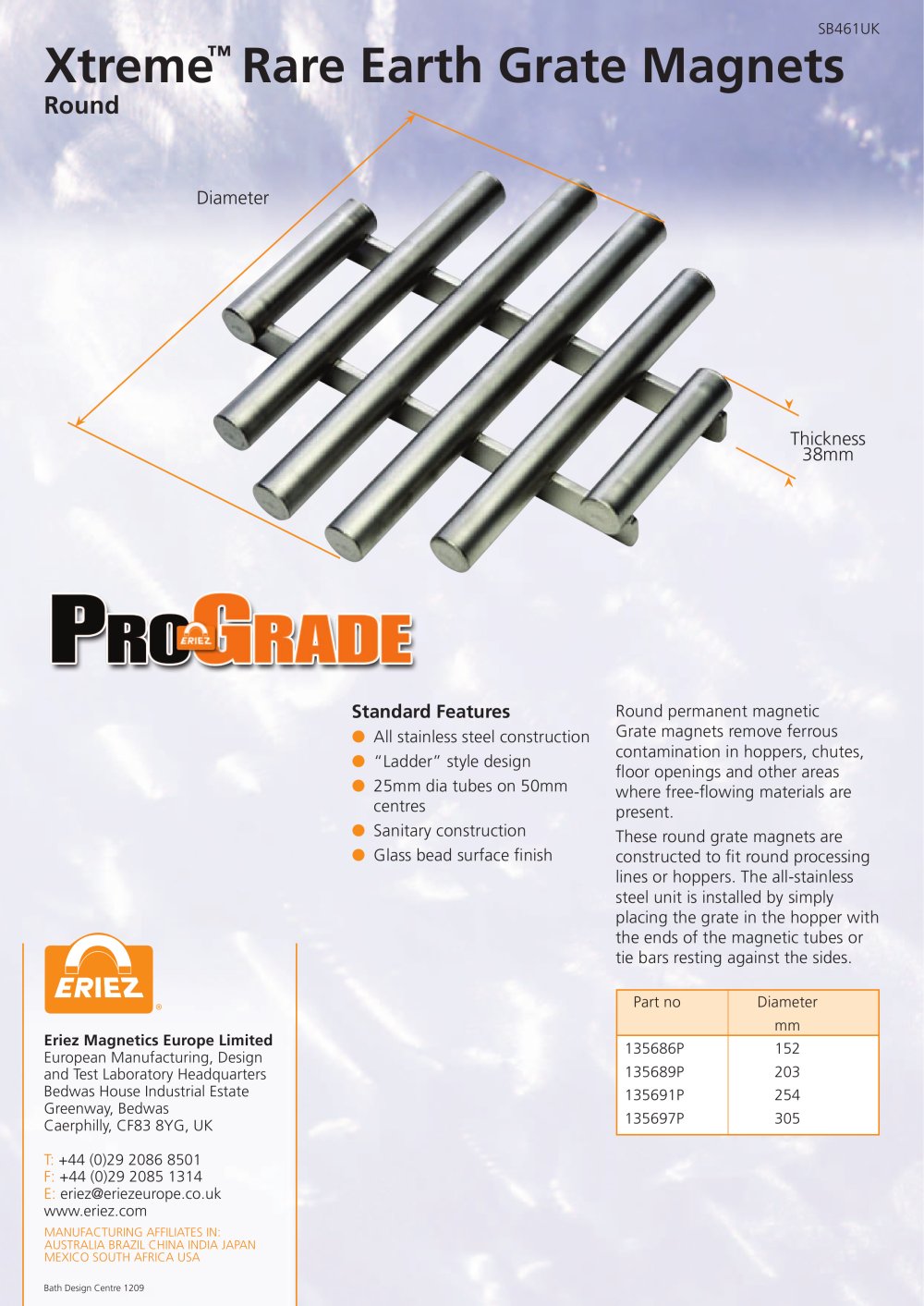

SB461UK Xtreme Rare Earth Grate Magnets Round Thickness 38mm Standard Features ٕ All stainless steel construction "Ladder" style design Օ 25mm dia tubes on 50mm centres Sanitary construction > Glass bead surface finish Round permanent magnetic Grate magnets remove ferrous contamination in hoppers, chutes, floor openings and other areas where free-flowing materials are present. These round grate magnets are constructed to fit round processing lines or hoppers. The all-stainless steel unit is installed by simply placing the grate in the hopper with the ends of the magnetic tubes or tie bars resting against the sides. Part no Diameter mm 135686P 152 135689P 203 135691P 254 135697P 305 Eriez Magnetics Europe Limited European Manufacturing, Design and Test Laboratory Headquarters Bedwas House Industrial Estate Greenway, Bedwas Caerphilly, CF83 8YG, UK T: +44 (0)29 2086 8501 F: +44 (0)29 2085 1314 E: [email protected] www.eriez.com MANUFACTURING AFFILIATES IN: AUSTRALIA BRAZIL CHINA INDIA JAPAN MEXICO SOUTH AFRICA USA Bath Design Centre 1209
