Eriez Magnetics Europe Limited
ProGrade Inhousing Grate

ProGrade Inhousing Grate

Product catalog summary

Company Overview: Eriez Magnetics Europe Limited is headquartered in Bedwas, Caerphilly, UK, with manufacturing affiliates in several countries including Australia, Brazil, China, India, Japan, Mexico, South Africa, and the USA.

Product Specifications: The document details the features of the Xtreme Rare Earth Grate Magnets, which include two rows of staggered magnets, 25mm diameter magnet tubes on 50mm centers, stainless steel tube scrapers, a metal contaminant discharge chute, and an all stainless steel construction with a glass bead surface finish.

Standard Features: The product is designed for easy cleaning, allowing for quick removal of fine iron contamination. The cleaning process involves sliding the door fronts from the housing, which scrapes and discharges the accumulated metal contamination.

Product Variants: The document lists part numbers and dimensions for different product variants: 135675P (216mm width, 152mm length), 134929P (267mm width, 203mm length), and 134940P (317mm width, 254mm length).

Design and Functionality: The product features 38mm flanges and a 286mm width, emphasizing its efficiency in reducing the cleaning cycle to a few seconds through a push-pull operation.

Catalog excerpts

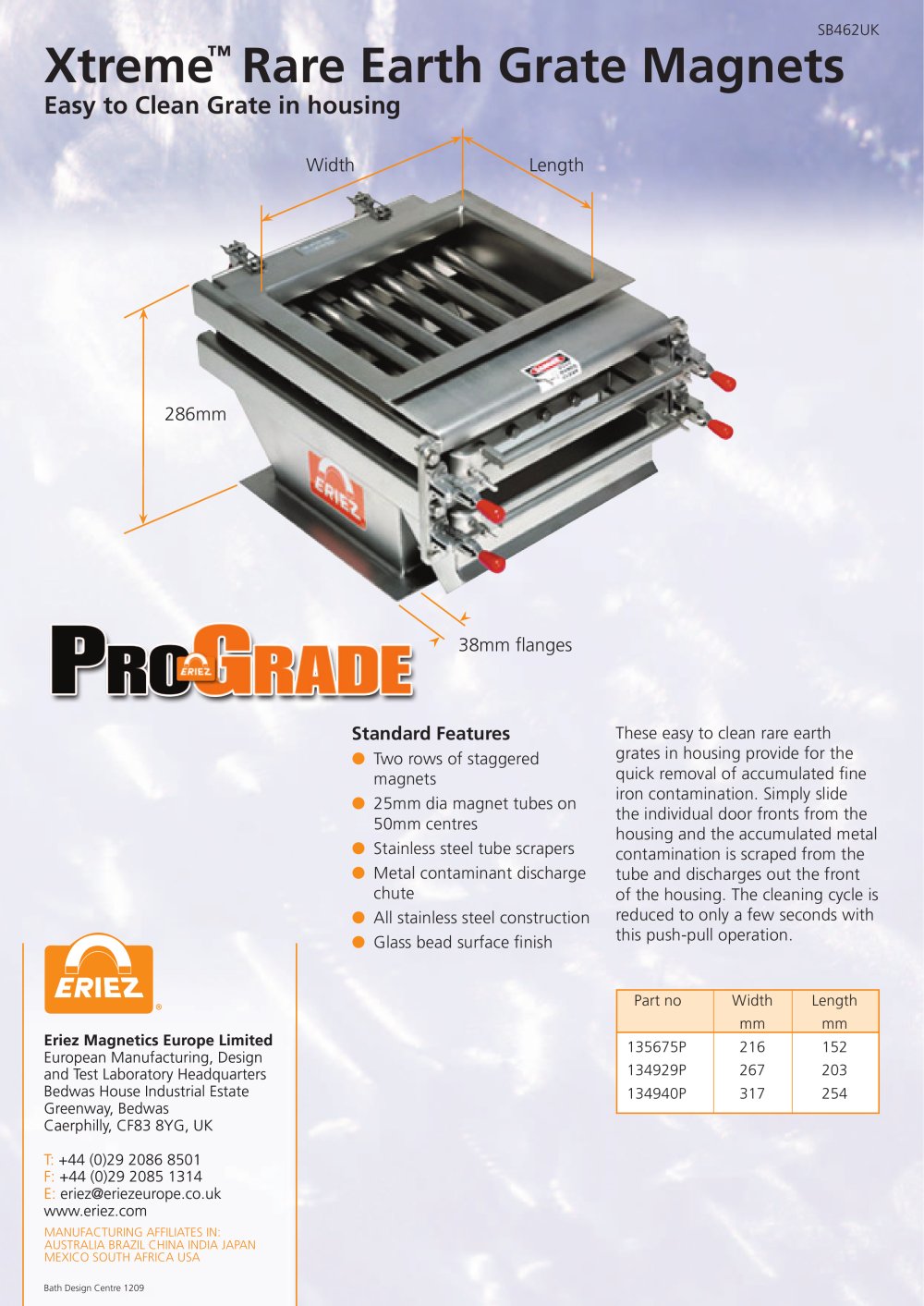

SB462UK Xtreme Rare Earth Grate Magnets Easy to Clean Grate in housing 38mm flanges Standard Features ٕ Two rows of staggered magnets 25mm dia magnet tubes on 50mm centres Օ Stainless steel tube scrapers Metal contaminant discharge chute Օ All stainless steel construction > Glass bead surface finish These easy to clean rare earth grates in housing provide for the quick removal of accumulated fine iron contamination. Simply slide the individual door fronts from the housing and the accumulated metal contamination is scraped from the tube and discharges out the front of the housing. The cleaning cycle is reduced to only a few seconds with this push-pull operation. Part no Width mm Length mm Eriez Magnetics Europe Limited European Manufacturing, Design and Test Laboratory Headquarters Bedwas House Industrial Estate Greenway, Bedwas Caerphilly, CF83 8YG, UK T: +44 (0)29 2086 8501 F: +44 (0)29 2085 1314 E: [email protected] www.eriez.com 135675P 134929P 134940P 216 267 317 152 203 254 MANUFACTURING AFFILIATES IN: AUSTRALIA BRAZIL CHINA INDIA JAPAN MEXICO SOUTH AFRICA USA Bath Design Centre 1209
