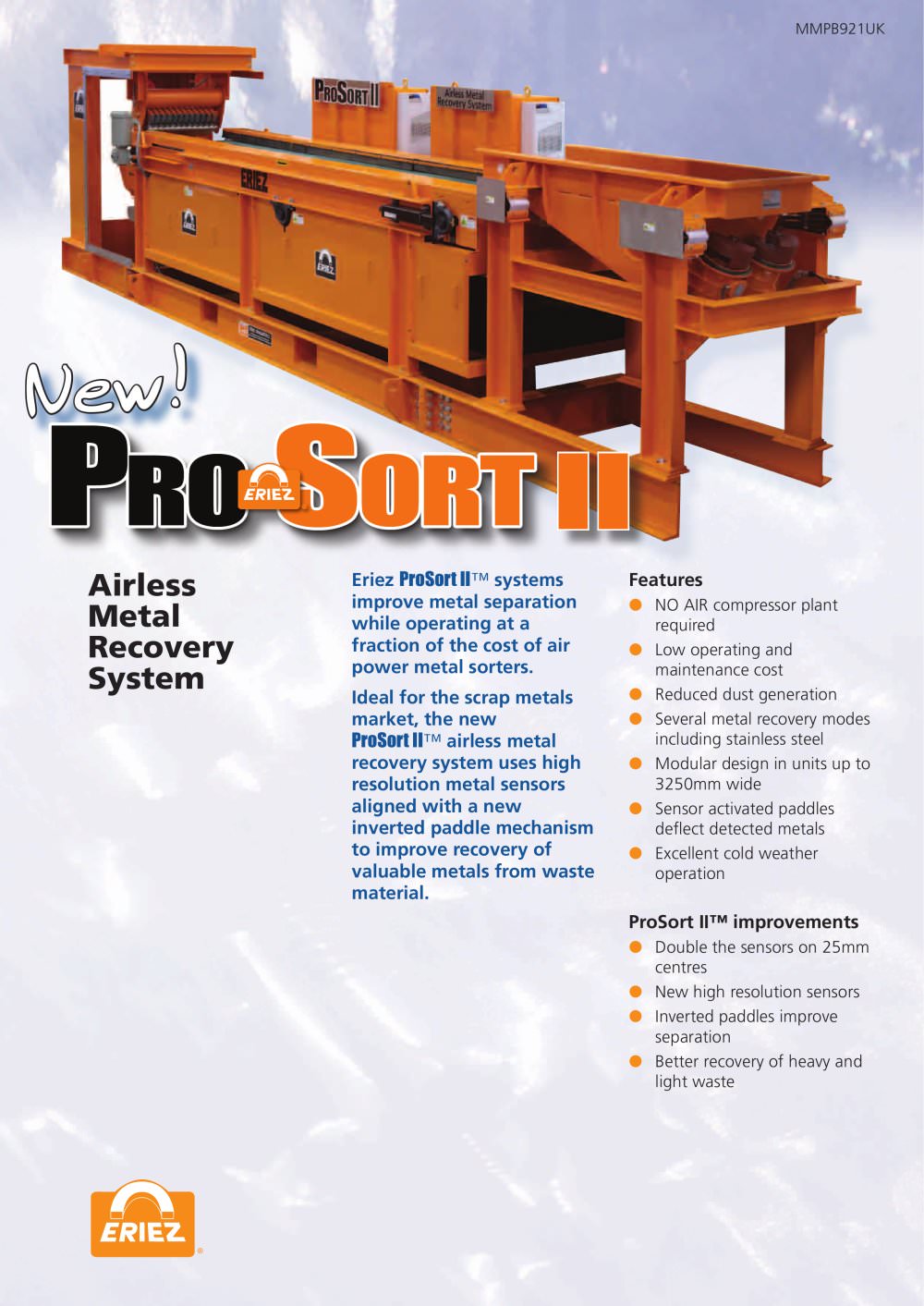

Pro Sort II - 1

MMPB921UK Airless Metal Recovery System Eriez ProSort II Systems improve metal s٩paration while operating at a fraction of the cost of air power metal sorters. Ideal for the scrap metals market, the new ProSort II airless metal recovery system uses high resolution metal sensors aligned with a new inverted paddle mechanism to improve recovery of valuable metals from waste material. Features ٕ NO AIR compressor plant required Low operating and maintenance cost Օ Reduced dust generation Several metal recovery modes including stainless steel Օ Modular design in units up to 3250mm wide Sensor activated paddles deflect detected metals Excellent cold weather operation ProSort IIՙ improvements Double the sensors on 25mm centres Օ New high resolution sensors Inverted paddles improve separation Օ Better recovery of heavy and light waste

Open the catalog to page 1
Pro Sort II - 2

Easy Access to Modular Components The ProSort II airless metal recovery system features a simple elegant, easy to operate design. The system's modular construction allows easy access to replaceable sensors and paddle drive units called "six packs." Each unit of six paddles and six sensors operate from independent power supplies for simple troubleshooting and diagnostics. Six packs are set in a series to create up to 3250mm recovery system. ProSort IIٙ components include: Six pack paddle modules Օ Easy glide replaceable sensor modules Multi-position adjustable head for accurate deflection...

Open the catalog to page 2
Pro Sort II - 3

Inverted paddle arrangement Low Cost of Opration By replacing expensive air compressor plants, valves and airlines with energy efficient electro-magnetic drives, the ProSort II airless metal recovery system requires less than 25% of the electricity needed to operate an air powered sorter. The chart left shows the average annual electricity requirement for a 125HP compressor. Not only is the ProSort II陙 system less expensive to operate and maintain, it's actually less expensive to buy as well! Average Yearly Electrical Cost to operate a 125HP Air Compressor Plant Based on 2000 hours per year...

Open the catalog to page 3
Pro Sort II - 4

Air versus Airless Air sorters are expensive to buy, operate and maintain. Eriez' Airless sorters improve separation and require NO air! That means: NO expensive compressors Օ NO valves stuck open NO nozzles blocked or clogged Օ NO dryers NO filters Օ NO drain valves NO more downtime! Advantage Օ ProSort IIٙ Airless Metal Recovery Air Driven Metal Sorters Finds and sorts a variety of metals 4 4 Recovery modes include 4 4 Stainless Steel Modular "Six Pack" design 4 Air compressor operation 4 Mechanical projection of 4 metal scrap Twin band inline 4 4 secondary separation Dust reduction 4...

Open the catalog to page 4
