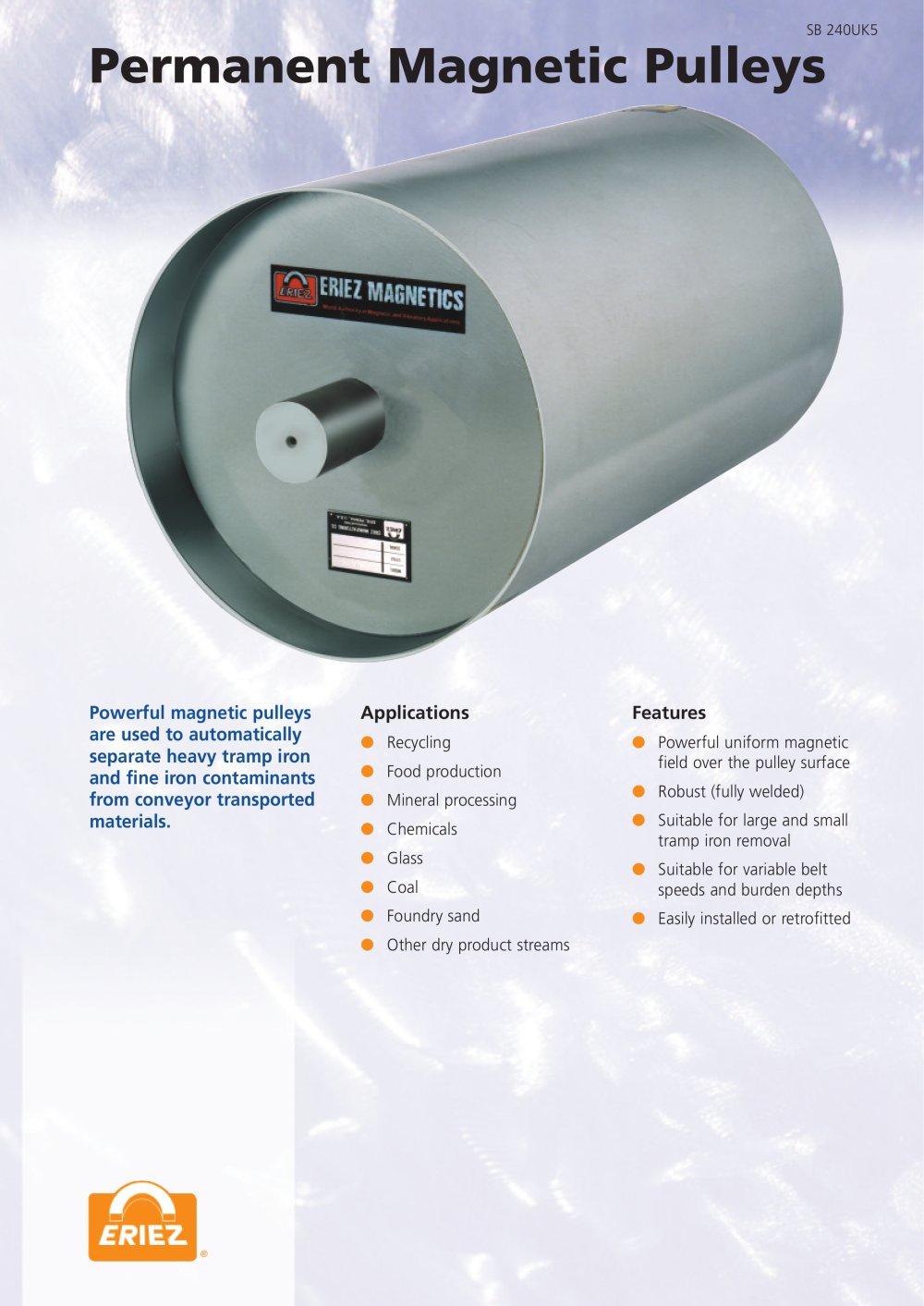

SB 240UK5 Permanent Magnetic Pulleys Powerful magnetic pulleys are used to automatically separate heavy tramp iron and fine iron contaminants from conveyor transported materials. Applications Recycling Օ Food production Minerai processing Օ Chemicals Glass Օ Coal Foundry sand Օ Other dry product streams Features Powerful uniform magnetic field over the pulley surface Օ Robust (fully welded) Suitable for large and small tramp iron removal Օ Suitable for variable belt speeds and burden depths Easily installթe! or retrofitted
Open the catalog to page 1Principle of opration When material contaminated with tramp iron is presented to the magnetic pulley, the iron is attracted to the belt surface. The cleaned, nonmagnetic material is discharged over the pulley as normal, whilst the iron is held by the pulley and discharged below the normal trajectory. A divider arrangement is usually installe! as indicated in the illustration. An adjustable divider will permit optimum positioning for sp驩cifie conditions of material and tramp iron discharge. Tramp-iron contaminated material Tramp-iron Operating principle of a magnetic pulley Cleaned material...
