Metalarm 6600 Metal Detector

Metalarm 6600 Metal Detector
2Pages

Catalog excerpts

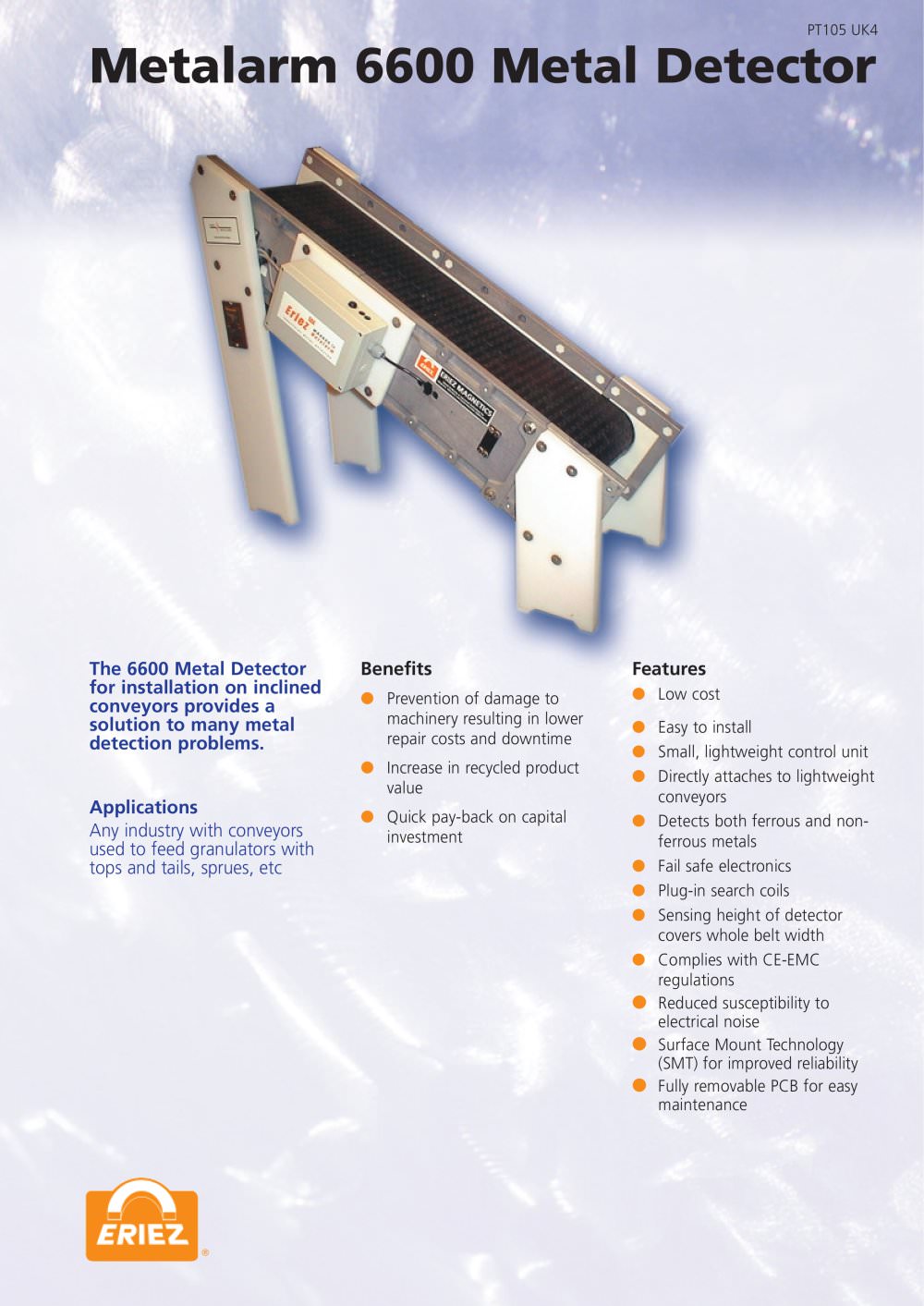

PT105 UK4 Metalarm 6600 Metal Detector The 6600 Metal Detector for installation on inclined conveyors provides a solution to many metal detection problems. Benefits Prevention of damage to machinery resulting in lower repair costs and downtime Օ Increase in recycled product value Quick pay-back on capital investment Low cost Easy to install Small, lightweight control unit Directly attaches to lightweight conveyors Detects both ferrous and non-ferrous metals Fail safe electronics Plug-in search coils Sensing height of detector covers whole belt width Complies with CE-EMC regulations Reduced susceptibility to electrical noise Surface Mount Technology (SMT) for improved reliability Fully removable PCB for easy maintenance Applications Any industry with conveyors used to feed granulators with tops and tails, sprues, etc

Open the catalog to page 1

Search coils The Metalarm 6600 Control Unit can be operated with any of the Metalarm 6000 Range of Search Coils. There are two groups of plate type search coils, the 'S' series for the standard sensitivity and the 'SW' series for high sensitivity. The 'S' series is manufactured in high density polyethylene and the 'SW' in polypropylene. Both types of coil can be supplied with grooves down their centres for conveyor belts that have underbelt tracking ribs. These are designated by the letter 'C'. In addition to the standard plate coils, the 'SW' circular aperture type search coil (shown...

Open the catalog to page 2
