Metal Detector Accessories

Metal Detector Accessories
1 / 2Pages

Catalog excerpts

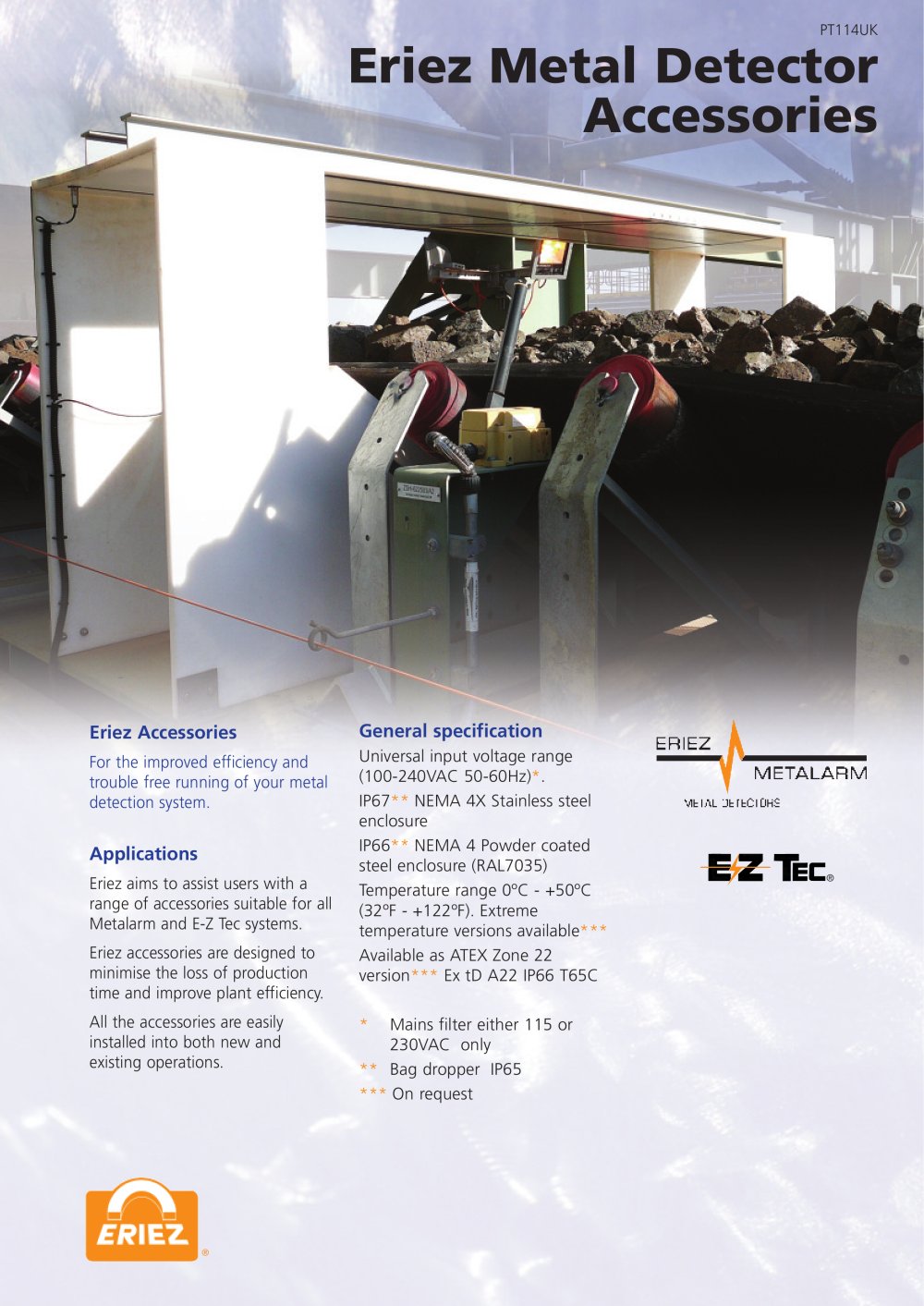

PT114UK Eriez Metal Detector Accessories Eriez Accessories General spcification Universal input voltage range (100-240VAC 50-60Hz)*. IP67** NEMA 4X Stainless steel enclosure IP66** NEMA 4 Powder coated steel enclosure (RAL7035) Temperature range 0°C - +50°C (32°F - +122°F). Extreme temperature versions available*** Available as ATEX Zone 22 version*** Ex tD A22 IP66 T65C * Mains filter either 115 or 230VAC only ** Bag dropper IP65 *** On request ERIEZ For the improved efficiency and trouble free running of your metal detection system. Applications Eriez aims to assist users with a range of accessories suitable for all Metalarm and E-Z Tec systems. Eriez accessories are designed to minimise the loss of production time and improve plant efficiency. All the accessories are easily installed into both new and existing operations. METALARM VlblAL JbfbClOiS Tec ®

Open the catalog to page 1

Hi-Pile Detector The Hi-Pile Detector has a height adjustable frame design and uses an infra-red beam to stop the conveyor belt before any product overburden can cause damage to the metal detector sensor coil assembly. It can be used to signal the metal detector or customer plant control system directly. Bag Dropper When metal contamination is detected, the bag is released after a user-adjustable delay period and marks the position of the first piece of detected metal contamination within the product stream. InkJet marker Use to mark the location of multiple pieces (when used with SpyMet)...

Open the catalog to page 2
