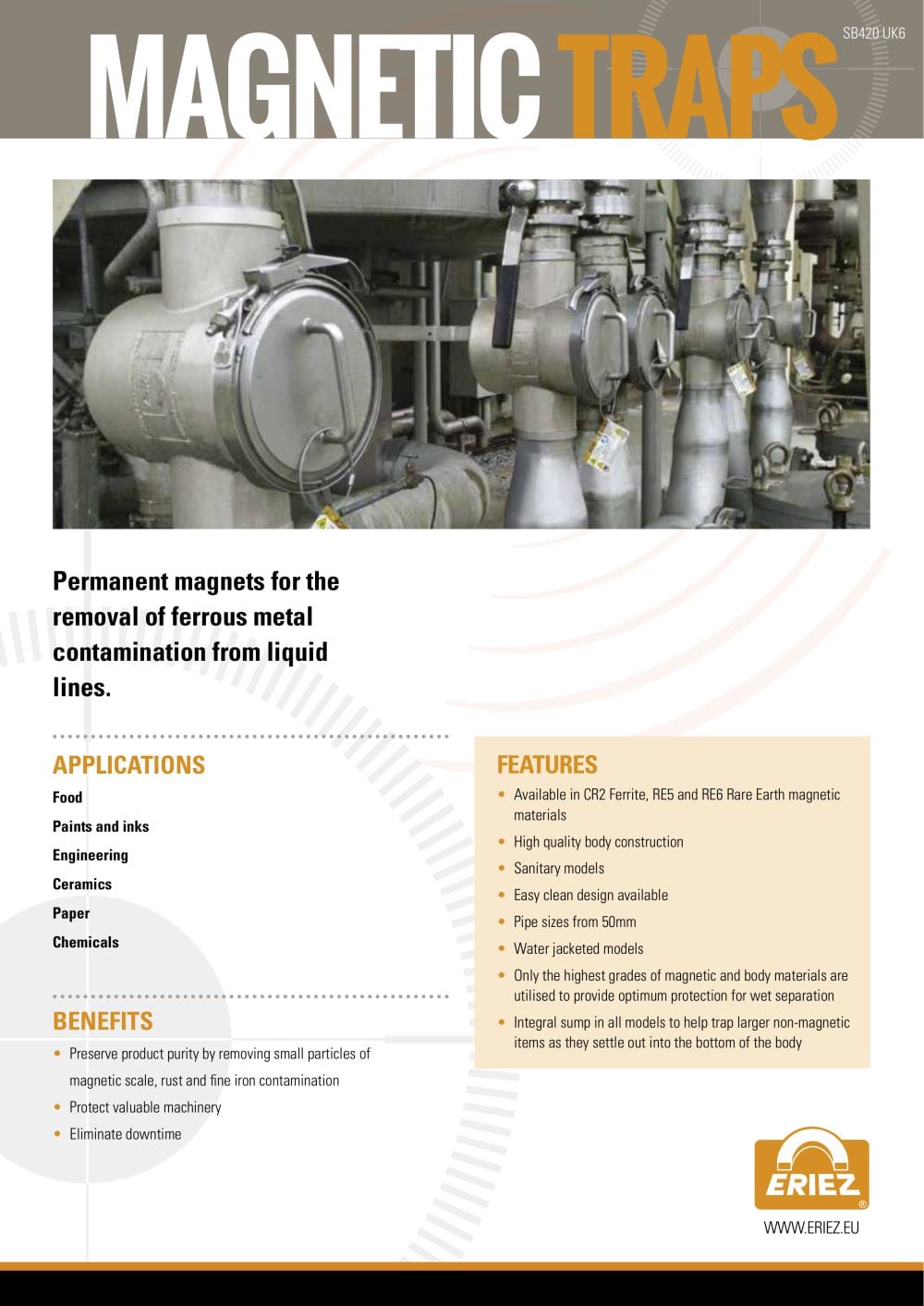

MAGNETIC TRAPS Permanent magnets for the removal of ferrous metal contamination from liquid lines. APPLICATIONS • Available in CR2 Ferrite, RE5 and RE6 Rare Earth magnetic materials Paints and inks Engineering Ceramics Paper Chemicals • High quality body construction • Sanitary models • Easy clean design available • Pipe sizes from 50mm • Water jacketed models • Only the highest grades of magnetic and body materials are utilised to provide optimum protection for wet separation BENEFITS • Preserve product purity by removing small particles of • Integral sump in all models to help trap larger non-magnetic items as they settle out into the bottom of the body magnetic scale, rust and fine iron contamination • Protect valuable machinery • Eliminate dow
Open the catalog to page 1Model ‘B’ Range Standard Design Easy Clean Design For 50mm through 100mm pipelines. Available in CR2 Ferrite, RE5 and RE6 Rare Earth, the magnetic element fits into the Grade 316 stainless steel body casting in such a way as to ensure that all of the product passing through the trap enters the strongest part of the magnetic field. Eriez ‘B’ Traps are also available with Easy Clean magnetic elements for complete removal of fine iron particles from an outer sleeve, thus speeding up the cleaning process and reducing downtime. The element stud can be locked to eliminate accidental cleaning. The...
Open the catalog to page 2Model ‘T’ Range For 150mm through 450mm pipelines. These high capacity units reduce damage and maintenance to filters, pumps and other process machinery handling liquid materials. Rugged, welded pipe and reinforced plate construction withstand operational pressures of up to 5.3 bar (75 p.s.i.). The standard body is constructed from mild steel and has flanged ends and a drain plug for removal of entrapped non-magnetic particles. Guide lugs on the element locate with rods in the body for correct positioning, whilst a non-magnetic area at the base of each tube makes cleaning easier. Unlike the...
Open the catalog to page 3Models ‘L-2’ and ‘L-2-F’ 50mm pipelines only. This model of Trap is again available with both Ferrite and Rare Earth magnetic elements. The unit was designed to serve as a low-cost, pipeline trap where operating conditions are not too severe. The housing is of non-sanitary cast stainless steel construction capable of withstanding pressures of up to 10.5 bar (150 p.s.i.). NPT or BSP threaded internal connectors are available. Although the inlet and outlet are designed for 50mm pipelines, standard reducers can be used to adapt it to lines as small as 13mm. The powerful magnetic circuit is...
