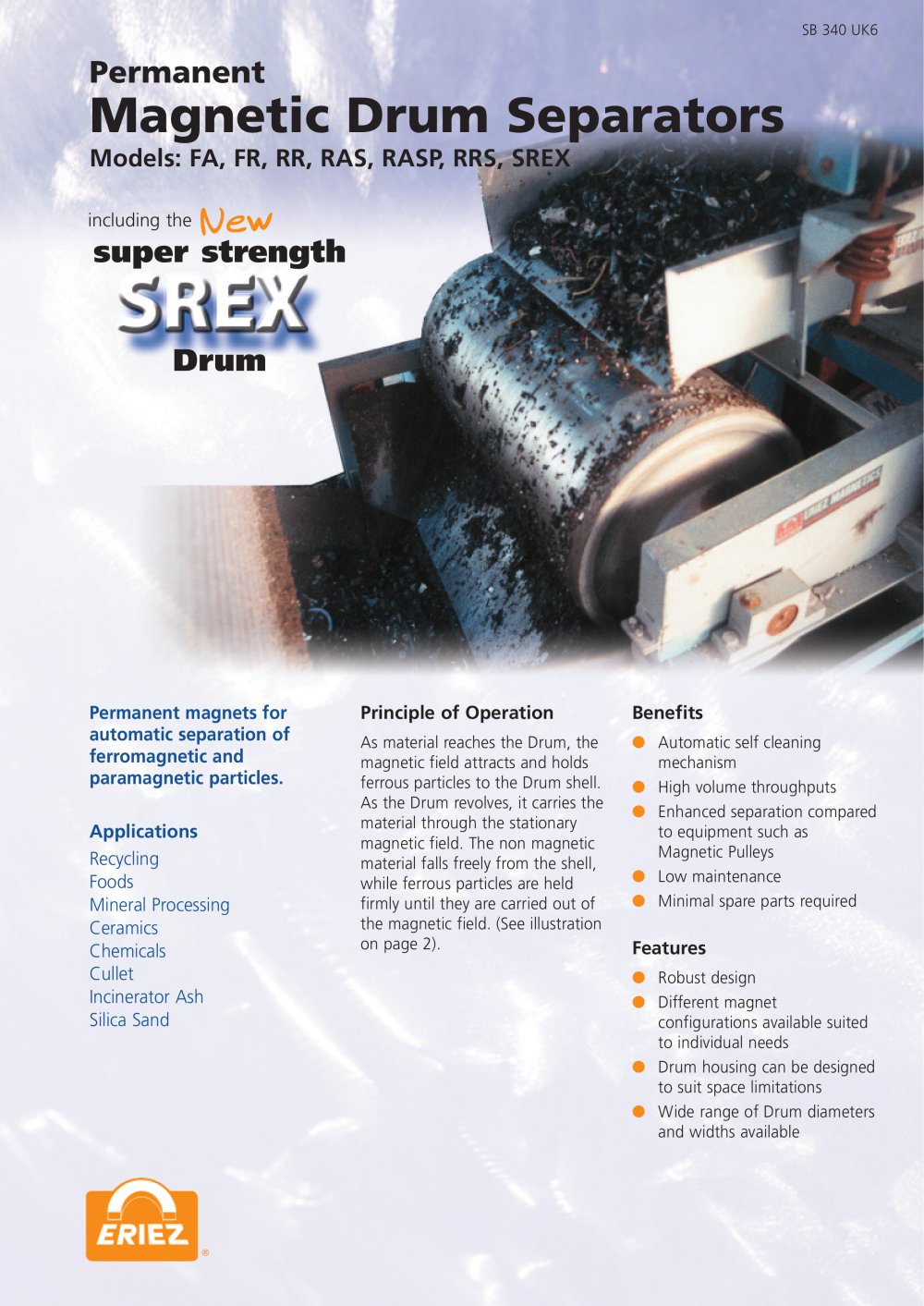

SB 340 UK6 Permanent Magnetic Drum Separators including the super strength Drum Permanent magnets for automatic sparation of ferromagnetic and paramagnetic particles. Applications Recycling Foods Minerai Processing Ceramics Chemicals Cullet Incinerator Ash Silica Sand Principle of Operation As material reaches the Drum, the magnetic field attracts and holds ferrous particles to the Drum shell. As the Drum revolves, it carries the material through the stationary magnetic field. The non magnetic material falls freely from the shell, while ferrous particles are held firmly until they are carried out of the magnetic field. (See illustration on page 2). Benefits Automatic self cleaning mechanism 镕 High volume throughputs Enhanced separation compared to equipment such as Magnetic Pulleys Օ Low maintenance Minimal spare parts required Features Օ Robust design Different magnet configurations available suited to individual needs Օ Drum housing can be designed to suit space limitations Wide range of Drum diameters and widths available ®
Open the catalog to page 1Standard Drum Separators Designed with Ferrite magnets to provide a good sparation of tramp and fine iron from dry bulk materials. Rare Earth Drum Separators Rare Earth Drum Separators are made with a high quality rare earth permanent magnetic power source. The rare earth magnets produce magnetic fields up to 25 times stronger than conventional Ferrite, with no increase in size. The additional strength helps in removing weakly magnetic or very fine iron contaminants from a wide variety of powdery, dry bulk materials as well as slurries. Metal Sparation Modules Magnetic Drums are commonly...
