SUSPENDED ELECTRO MAGNETIC FILTERS

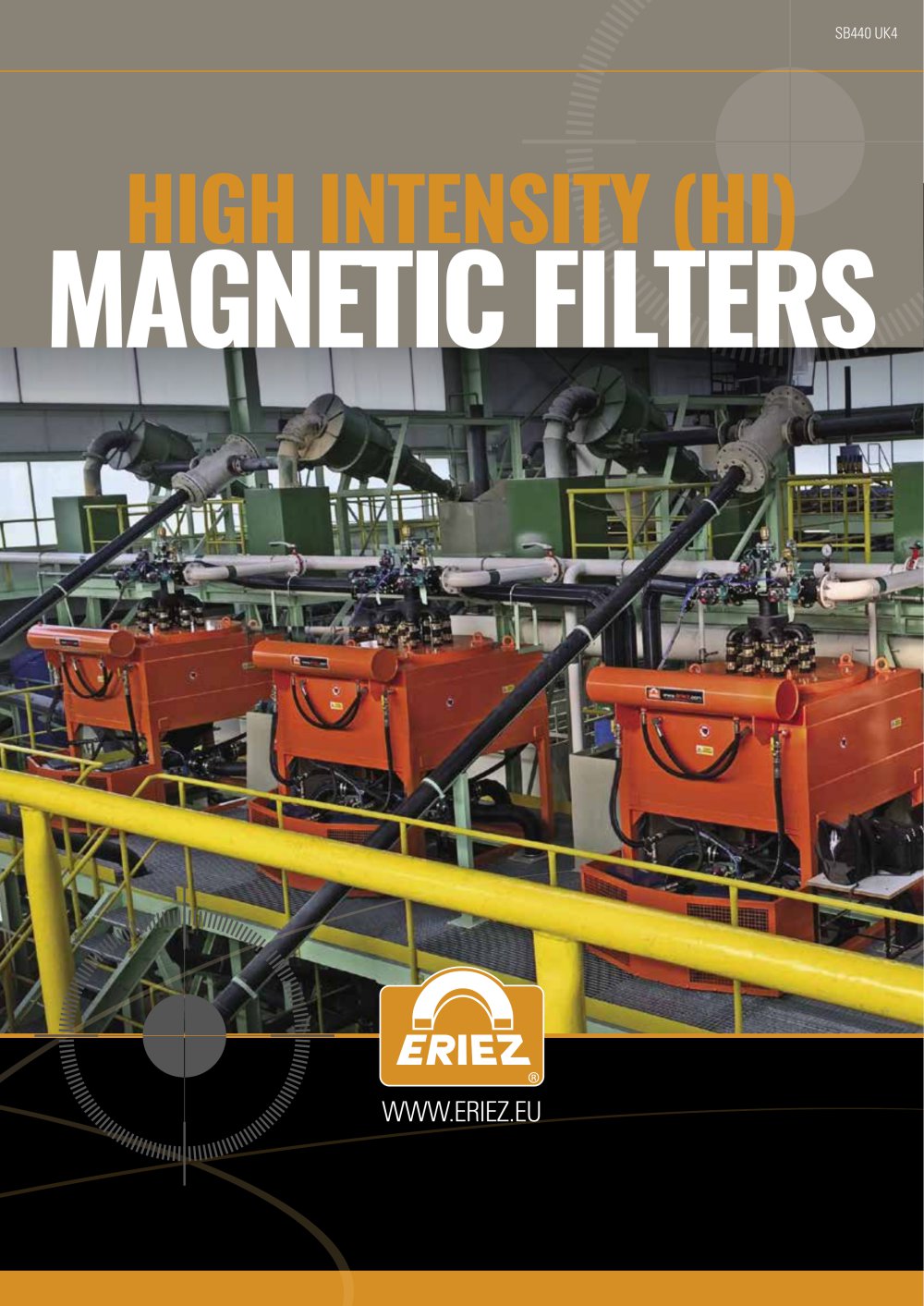

Open the catalog to page 1HIGH INTENSITY (HI) MAGNETIC FILTERS A high intensity, high gradient magnetic separator to capture fine ferrous and paramagnetic particles in liquids and slurries. • CERAMICS - High Intensity (HI) Filters are proven to offer higher separation performances in ceramics plants than traditional magnetic separators, such as electromagnetic bowl filters • A unique, technologically advanced electromagnetic coil design • MINERAL PROCESSING - results have shown the HI Filter provides better magnetic separation on mineral slurries, such as silica and feldspathic sands, than traditional carousel wet...
Open the catalog to page 2MANUAL CLEANING SYSTEMS All models can be supplied without associated valve assemblies and automatic controls for manual operation. Alternatively, customers can retro-fit their own cleaning system in consultation with Eriez. AUTOMATED CLEANING SYSTEMS Fully automated HI Filters ensure maximum efficiency of operation. Continuous processing can be achieved by operating multiple filters in the “flip-flop” configuration. The automated system includes: • Fully sequenced valve operation • Customised control panel which can be adjusted to optimise process and cleaning times and maximise separation...
Open the catalog to page 3MODELS AND FIELD STRENGTHS Model For the separation of fine ferromagnetic iron of abrasion or scale. Suited to low viscosity materials. For very fine ferromagnetic iron of abrasion or scale, or paramagnetic contaminants such as iron bearing minerals, stainless steel or nickel and cobalt compounds. Ceramic glaze and other materials with higher viscosities also require the use of this model. For ultra fine paramagnetic contaminants. Used to increase product brightness or where product specifications call for extremely high purity. Note: Gauss figures relate to background field only.
Open the catalog to page 4MAGNETIC FILTERS HI FILTER DIMENSIONS AND WEIGHTS Model Background Field (Tesla) Height with Valves (M) Note: Dimensions given are for general guidance only. They can vary considerably depending upon application. Larger units than those quoted above are available - further information provided on request. ERIEZ LABORATORY FACILITIES The Eriez laboratory in the UK is equipped with the latest magnetic separation technology. The range of laboratory magnetic separators for the testing of customer samples is the most extensive available anywhere in the world. Eriez recommends sample testing to...
Open the catalog to page 5Manufacturing Affiliates in: Australia, Brazil, Canada, China, India, Japan, Mexico, South Africa, United Kingdom, USA ERIEZ MAGNETICS EUROPE LIMITED European Manufacturing, Design and Test Laboratory Headquarters Greenway, Bedwas House Industrial Estate, Bedwas, Caerphilly, CF83 8YG, UK T: +44 (0)29 2086 8501 | F: +44 (0)29 2085 1314 | E: info-europe@eriez.com
