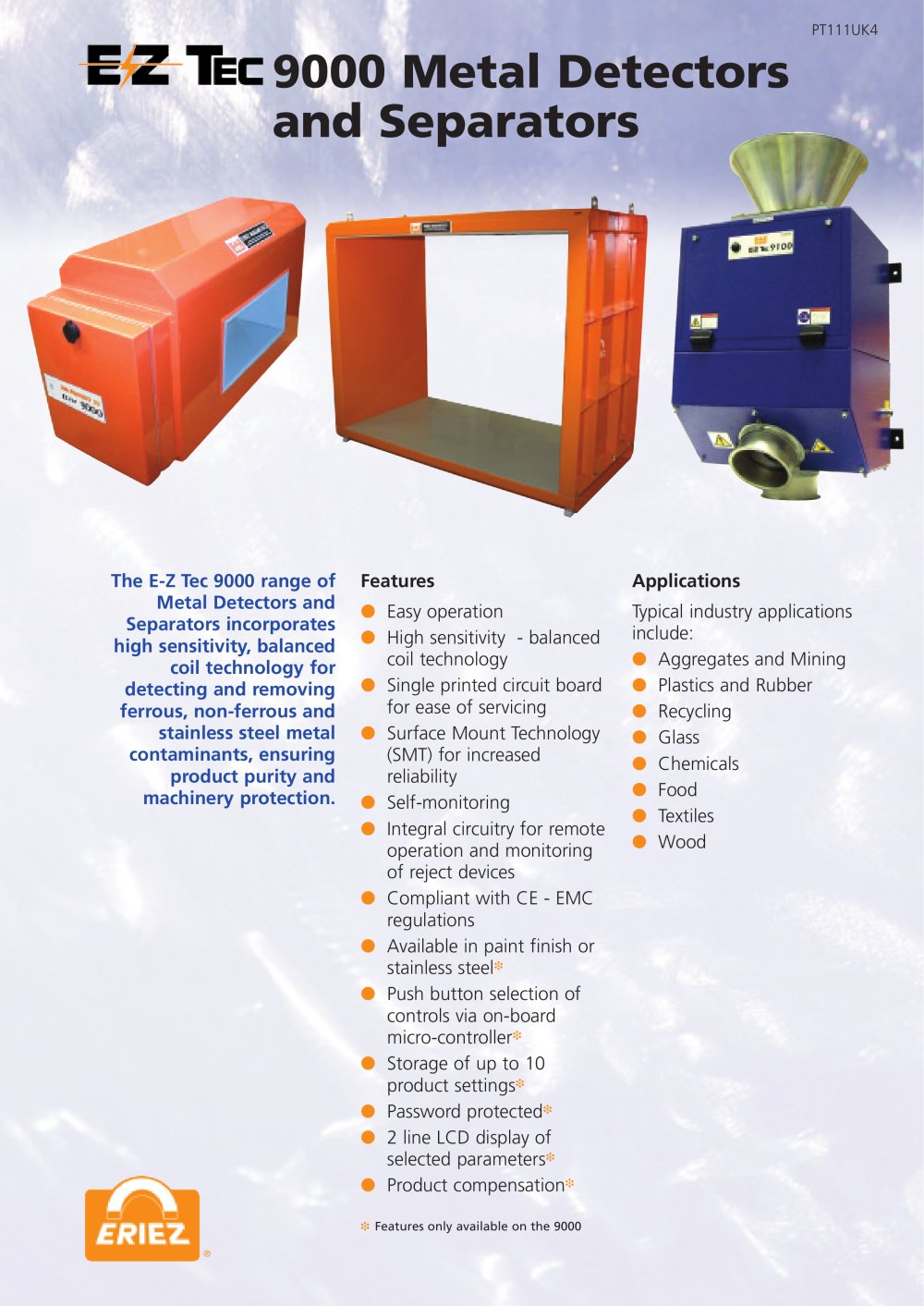

PT111UK4 TEC9000 Mtal Detectors and Separators h? mil The E-Z Tec 9000 range of Mtal Detectors and Separators incorpor驢tes high sensitivity, balance! coil technology for detecting and removing ferrous, non-ferrous and stainless steel mtal contaminants, ensuring product purity and machinery protection. Features 驕 Easy opration High sensitivity - balanced coil technology 镕 Single printed circuit board for ease of servicing Surface Mount Technology (SMT) for increased reliability Օ Self-monitoring Intթgral circuitry for remote opration and monitoring of reject devices Compilant with CE - EMC r镩gulations Available in paint finish or stainless steet Օ Push button slection of controls via on-board micro-controller Storage of up to 10 product settings 镕 Password protected 2 line LCD display of selected parameters Օ Product compensation Fealures only available on the 90O0 Applications Typical industry applications include: Aggregates and Mining Օ Plastics and Rubber Recycling c Glass Օ Chemicals Food Textiles Օ Wood
Open the catalog to page 1EZTec 9000 R E Z Tec 9000 RD The E-Z Tec 9000 R Mtal Detector incorportes a fully enclosed aperture and offers a high level of sensitivity for a range of applications. Each System is manufactured in accordance with individual requirements and is either manufactured from mild steel or aluminium (with a paint finish) or stainless steel (natural finish). The detector can be supplied as a single unit, combined with a declined chute or fitted on a purpose built conveyor System. Fully automated reject Systems can also be incorporated. The E-Z Tec 9000 RD Divisible M颩tal Detector has an innovative...
Open the catalog to page 2E Z Tec 9000 C The Model 'C has a spcial circular aperture search head allowing it to be used in pipeline Systems, whether for free falling product or pressure Systems. Each unit is custom built and it is therefore available in a range of diffrent sizes, making it an id驩al solution to both standard and non standard applications. EZTec 9100 The E-Z Tec 9100 combines balanced coil technology with a pneumatic reject System, ensuring the dtection and rejection of sub-millimetre mtal contaminants from free falling material. Specifically designed for simple installation, the unit can be supplied...
Open the catalog to page 3Spcifications Mechanical The standard mtal d驩tecter search heads are manufactured from mild steel or aluminium and then painted, however stainless steel models are available. Full dimensional drawmgs of the equipment are available upon request Protection: IP65 (Nema 4 painted) IP65 (Nema 4X stainless steel) E-Z Tec 9000 Models IP40 - E-Z Tec 9100 Models - IP54- E-Z Tec 9100 Electronic Endosure Operating Temprature: 0°C to +50°C Electronics Controls The controls for the mtal detector are very simple and incorporate push buttons operated via a micro-controtler CB25 - available on ail models....
