3600 Metal Detectors

3600 Metal Detectors
1 / 2Pages

Catalog excerpts

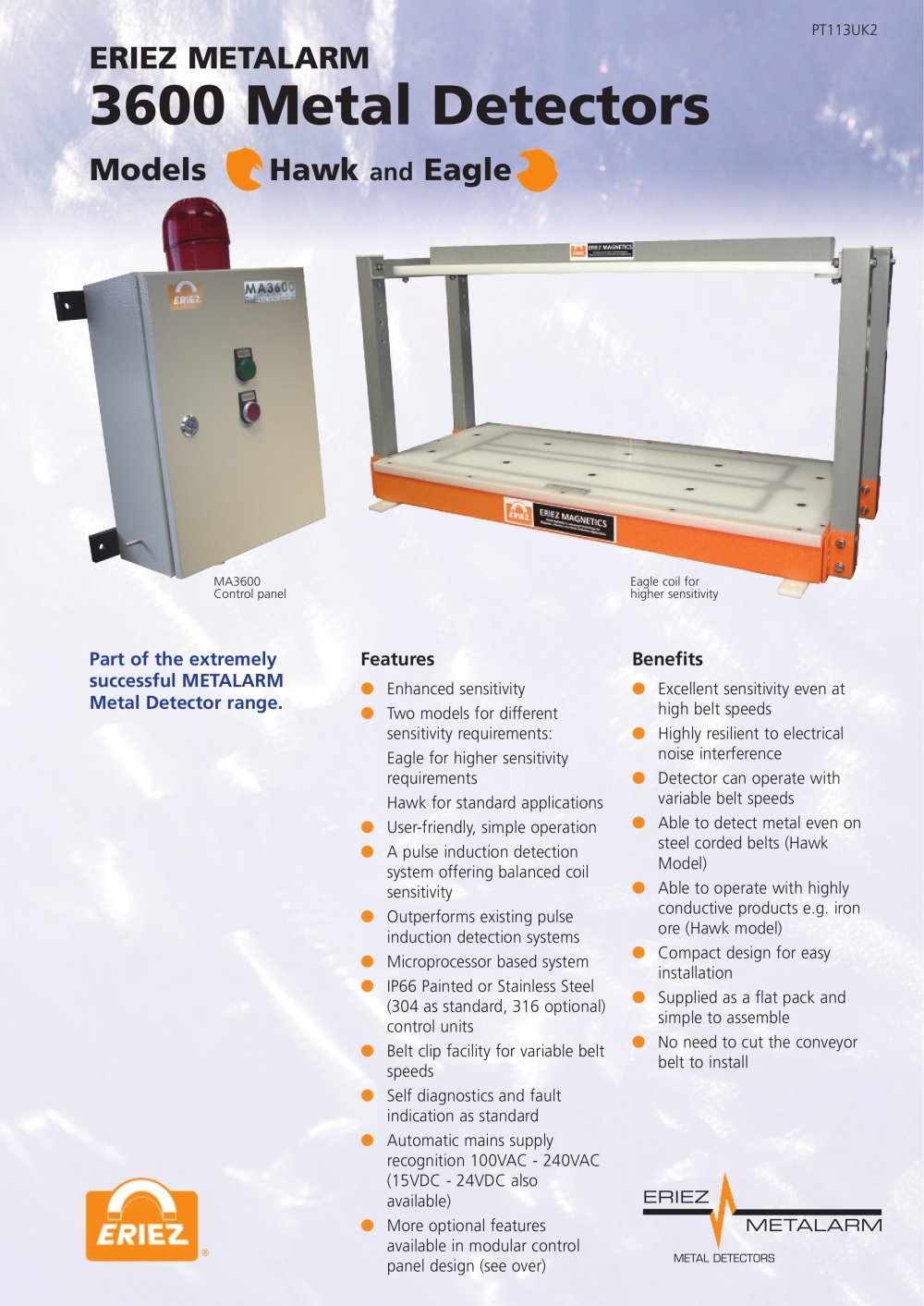

ERIEZ METALARM PT113UK2 3600 Mtal Detectors Models Hawk and Eagle MA3600 Control panel Eagle coil for higher sensitivity Part of the extremely successful METALARM Metal Detector range. Features 飕 Enhanced sensitivity Two models for different sensitivity requirements: Eagle for higher sensitivity requirements Hawk for standard applications Օ User-friendly, simple operation A pulse induction detection system offering balanced coil sensitivity Օ Outperforms existing pulse induction detection systems Microprocessor based system Օ IP66 Painted or Stainless Steel (304 as standard, 316 optional) control units Belt clip facility for variable belt speeds Օ Self diagnostics and fault indication as standard Automatic mains supply recognition 100VAC - 240VAC (15VDC - 24VDC also available) Օ More optional features available in modular control panel design (see over) Benefits Excellent sensitivity even at high belt speeds Օ Highly resilient to electrical noise interference Detector can operate with variable belt speeds Օ Able to detect metal even on steel corded belts (Hawk Model) Able to operate with highly conductive products e.g. iron ore (Hawk model) Օ Compact design for easy installation Supplied as a flat pack and simple to assemble Օ No need to cut the conveyor belt to install ® ERIEZ METALARM METAL DETECTORS

Open the catalog to page 1

Hawk Standard Coil Search coils Eriez manufactures a range of search coils for use with the 3600 control unit. All coils are manufactured in High Density Polyethylene and are fully screened to comply with with EU 'EMC' regulations. Coils can be supplied to fit any belt width and accommodate any aperture height requirement. Standard coil construction is good for 65°C. Special coils are available for applications up to 200°C. Please consult Eriez for further details. Sensitivity Hawk Coil Typically 5%+ of aperture height Eagle Coil Typically 2%+ of aperture height Eriez can advise further on...
