3000-3500 Series Metal Detectors

3000-3500 Series Metal Detectors
4Pages

Catalog excerpts

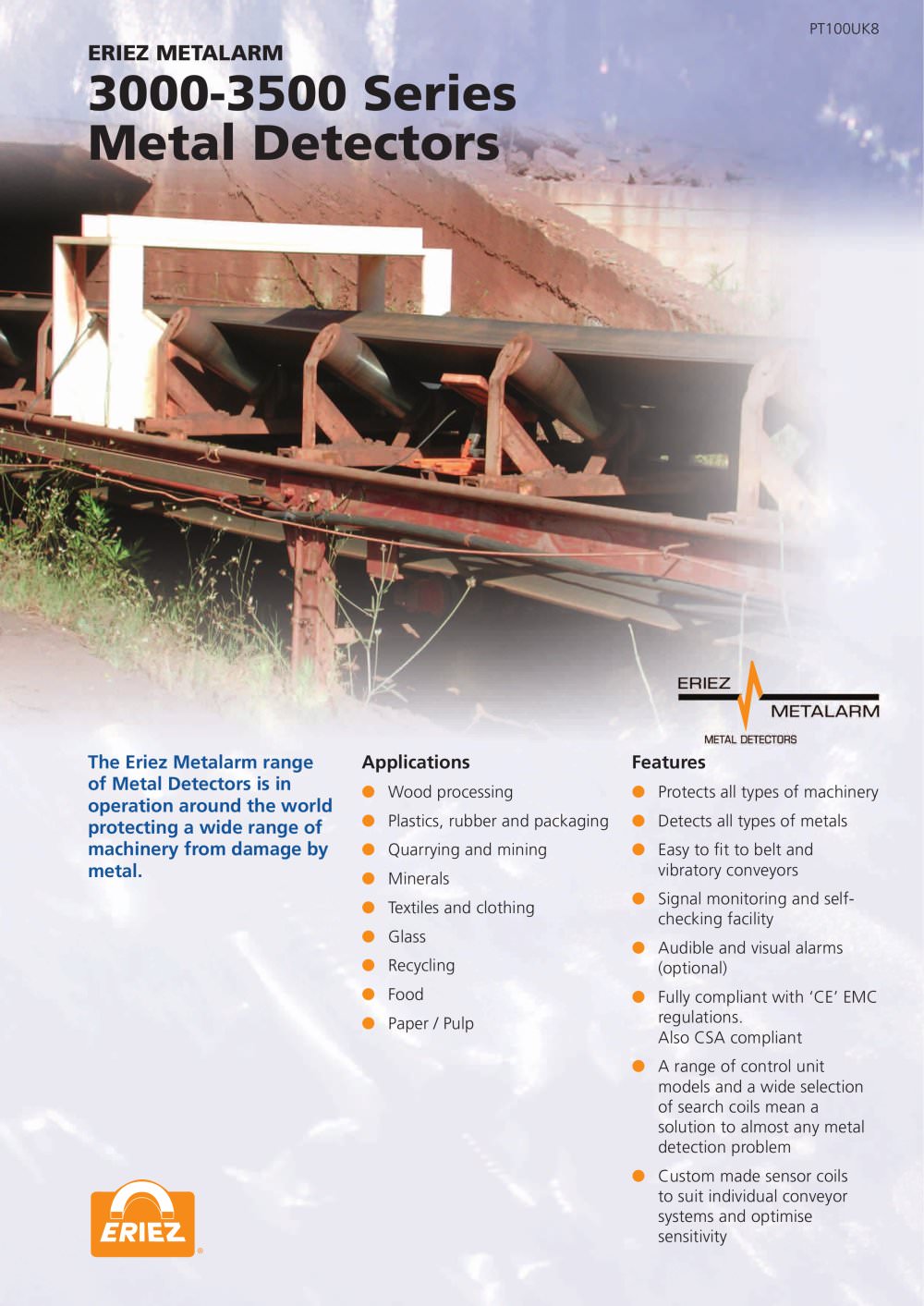

ERIEZ METALARM PT100UK8 3000-3500 Sries Mtal Detectors METALARM The Eriez Metalarm range of Metal Detectors is in operation around the world protecting a wide range of machinery from damage by metal. Applications 驕 Wood processing Plastics, rubber and packaging Օ Quarrying and mining Minerals Textiles and clothing Glass METAL DETECTORS Features Protects all types of machinery Օ Detects all types of metals Easy to fit to belt and vibratory conveyors Օ Signal monitoring and self-checking facility Audible and visual alarms (optional) Օ Fully compliant with 'CE' EMC regulations. Also CSA compliant A range of control unit models and a wide selection of search coils mean a solution to almost any metal detection problem Օ Custom made sensor coils to suit individual conveyor systems and optimise sensitivity Recycling Food Օ Paper / Pulp

Open the catalog to page 1

Underbelt Search Coil -Model TR The sensor is designed to match the conveyor belt profile determined by idler sets. Burden heights up to 300mm when locating typical tramp metal, such as bucket teeth, large nuts, bolts, etc. A specialised series of coils is available for where idler spacing is unusually close. PL Plate Coil For flat conveyor belts and/or mobile crusher applications. SF Plate Coil For applications where there is a large amount of surrounding metal and/or a high level of electrical interference. The unit replaces a section of the base conveyor over a length equal to the width...

Open the catalog to page 2

Bridge Coil Model BR Transmitter/ Receiver Mode Can be adjusted to ignore smaller pieces of metal. Suitable for detecting metal contamination in heavily mineralised materials. Bridge Coil Model BR-10 For applications with aperture heights up to 1000mm or more requiring high sensitivity.

Open the catalog to page 3

Eriez manufactures a wide range of search coils for use with the 3000/3500 Series control units which can be fitted to virtually any type of conveyor Օ in ducts, slides, etc All coils are manufactured in High Density Polyethyene and are fully screened to comply with EU 'EMC' regulations. Control Unit Specifications All the Metalarm Control Units employ Eriez's proven 'Pulse Induction' technology circuitry and are mounted on a single printed circuit board to give high reliability and enable easy access for servicing. All controls other than the front door detect/ reset button and power...
