ERICO
Distribuqtion Blocks

Distribuqtion Blocks

Product catalog summary

Overview: The document provides detailed specifications and features of ERICO's distribution blocks, including single, two, and four pole options. It highlights the design, safety features, and certifications of these products.

Single Pole Distribution Blocks:

Features a hinged or removable transparent blue cover for visual inspection and confirmation of wire connections.
Constructed with tinned copper blocks and self-extinguishing plastic (V0 rating).
Designed for easy installation on DIN rails or panels with screws, achieving a compact form factor with a >95% fill ratio.
Certified to IEC 60947-7-1 and UL 1059 standards, ensuring safety and reliability.

Multi Pole Distribution Blocks:

Available in two and four pole configurations, allowing for versatile power block assembly.
Features include reinforced plastic parts, easy clip-in fixing, and direct connection with ERIFLEX FLEXIBAR.
Tested and certified according to IEC 60947-7-1 standards.

Safety and Installation Warnings:

ERICO products must be installed according to the provided instruction sheets and training materials to prevent malfunction or injury.
Improper installation or misuse can lead to serious consequences, including property damage and bodily harm.

Warranty and Liability:

ERICO warrants its products to be free from defects at the time of shipment, with specific terms for claims and returns.
Liability is limited to the purchase price, excluding consequential damages such as loss of business or profits.

Technical Specifications:

Various models are detailed with their respective current ratings (e.g., UD 80 A, UDJ 125 A, UDJ 160 A) and dimensions.
Specifications include current ratings, torque requirements, and center-to-center drilling measurements.

Contact Information:

ERICO provides contact details for various international offices, including locations in the UK, North America, and other countries.

Catalog excerpts

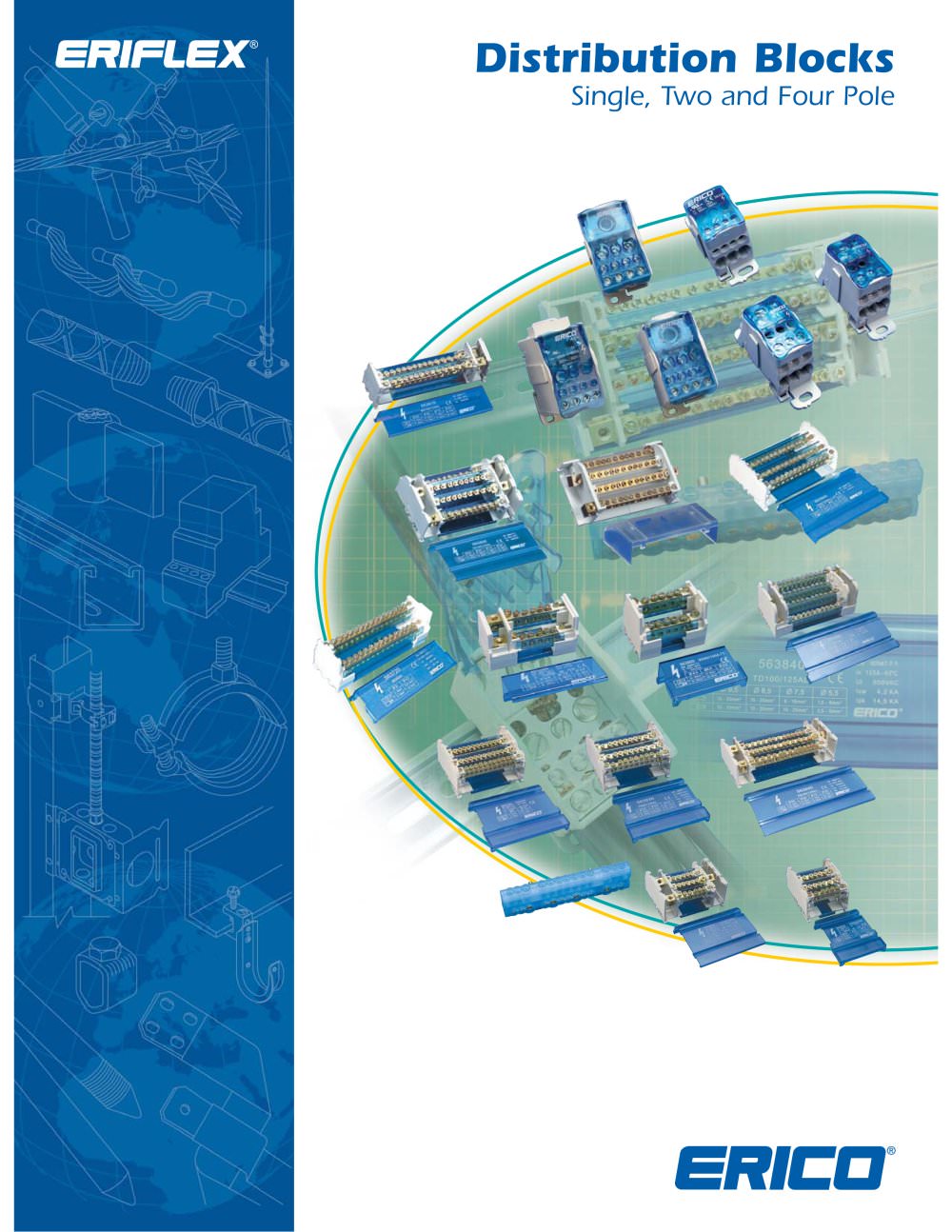

Single, Two and Four Pole >

Open the catalog to page 1

Screw retaining, transparent blue cover Hinged or removable cover IP 20 UL finger safe > 95% fill ratio Tinned copper block Visual inspection of wire and confirmation of connection > Easy fixing: clip on DIN Rail or mount to panel with screws > recognized for US and Canada (single pole only) Ζ UL 1059 - VO CSA Tested and certified according to IEC 60947-7-1UL > ֮ C22.2 NO. 158 > UNITED KINGDOM52 Milford Road SINGLE POLE DISTRIBUTION BLOCKS Reading, Berkshire RG1 8LJ United Kingdom Phone 00 800 5000 1090 Fax 00 800 6000 1090OTHER COUNTRIESB.P. 31 - 42161 Andrzieux Cedex Phone 00 33 477 36 56 56...

Open the catalog to page 2

End large terminal = true capacity > Reinforced plastic parts Easy clip-in fixing Tested and certified according to IEC 60947-7-1 Insulating screen between each row Insulated Neutral Bar giving numerous connections Cover = safe connections Mechanical fixing & electrical connection > WARNING ERICO products shall be installed and used only as indicated in ERICOs product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from your ERICO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow...

Open the catalog to page 3

UD 250 A FLG 250 UD 400 AUDF 500 A > 6 x 24 x 1 QUICK & EASYLOCKING բּ UDF 500 A > PROTECTED ENTRANCE ERIFLEX FLEXIBAR TYPE : 4 x 15.5 x 0.8 EASY CLIP-IN FIXING FLG 400 > DIRECT CONNECTION WITHERIFLEX FLEXIBAR. > Pending Օ Modular: allows versatile building ofpower blocks single pole, two pole, three pole or four pole. Modular: allows versatile building ofpower blocks single pole, two pole, three pole or four pole. Օ Modular: allows versatile building of powerblocks single pole, two pole, three pole or four pole. > DIRECT FLG 250:WITH ERIFLEX FLEXIBAR 5 mm0.973 5 mm1.37Ԕ 10.8 mm0.42ؔ30 mm1.1840...

Open the catalog to page 5

6 Chilvers Road P.O. Box 148 Thornleigh (Sydney) NSW 2120 Australia Phone 61-2-9479-8500 Fax 61-2-9484-9188 66851 Schwanenmhle Germany Phone 49-6307-918-10 Fax 49-6307-918-150 ul. Krzemieniecka 17 54-613 Wroclaw Poland Phone 48-71-374-40-22 Fax 48-71-374-40-43 > Postbus 33 3110 Rotselaar Belgium Phone 32-14-69-96-88 Fax 32-14-69-96-90 Unit 1, 2nd Floor, Block A Po Yip Building 62-70 Texaco Road Tsuen Wan, New Territories Hong Kong Phone 852-2764-8808 Fax 852-2764-4486 Jurong Industrial Estate 16 Wan Lee Road Singapore 627 946 Phone 65-6-268-3433 Fax 65-6-268-1389 > R. Dom Pedro Henrique de Orleans...

Open the catalog to page 8
