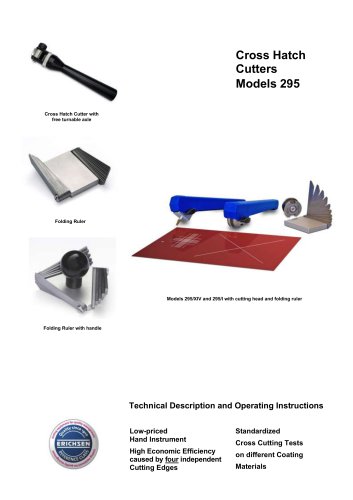

Cross Hatch Cutters Models 295 h Cross Hatch Cutter with free turnable axle Folding Ruler Models 295/XIV and 295/I with cutting head and folding ruler Folding Ruler with handle Technical Description and Operating Instructions Low-priced Hand Instrument High Economic Efficiency caused by four independent Cutting Edges Cross Cutting Tests Materials

SAFTY INSTRUCTIONS Proper use The Model 295 is intended only for adhesion tests by carrying out the cross-cut test in accordance with the international standards. The Cross Hatch Cutter is a purely mechanical instrument. The blades of the cross cutters are very sharp edged and therefore may cause injuries, if the instrument is not handled correctly and carefully! To the versions I, II and VII of Models 295 the cutting head used in each case is mounted in a hand grip in a fixed manner. Because they are, during the test procedure, moved manually over the surface to be tested, the pressure exerted...

In the case of the single cut instruments, Models 295/III, XII and XIII a folding ruler is also included. There are three versions of folding rulers available: • for Mod. 295/III: with 10 swivel-mounted folding • for Mod. 295/XII: with 10 swivel-mounted folding rulers of 1 mm and 1.5 mm thickness each (1.5 mm = acc. to Daimler-Benz) • for Mod. 295/XIII: with 5 swivel-mounted folding rulers of 1 mm/2 mm/3 mm thickness each. These folding rulers provide the ruler thicknesses of 1 mm, 1.5 mm, 2 mm or 3 mm for the required cutting distances “all of a piece” i.e. it is no longer necessary to build...

Order Informations Figure Multi-Cross Cutter 295/I with 6 edges, cutting distance 1 mm, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross Cutter 295/II with 6 edges, cutting distance 2 mm, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross Cutter 295/VII with 6 edges, cutting distance 3 mm, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross Cutter 295/IX with free turnable axle between hand grip and cutting head, 6 edges, cutting distance 1 mm, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross...

Order Information Figure Single Edge Cutting Device 295/XII with Folding Ruler with 10 swivel-mounted folding rulers of 1 mm and 1,5 mm thickness each, incl. magnifying glass, polyamide bristle brush and plastic case Single Edge Cutting Device 295/XIII with Folding Ruler egonomically optimized, triangular version with handle and 5 swivel-mounted folding rulers of 1 mm, 2 mm and 3 mm thickness each, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross Cutter 295/V, with 11 edges, cutting distance 1 mm, incl. magnifying glass, polyamide bristle brush and plastic case Multi-Cross...

Order Information Figure Cutter 295/I and holder, with 6 edges, cutting distance 1 mm, incl. tubular plastic case, without Manufacturer’s Test Certificate M Cutter 295/II and holder, with 6 edges, cutting distance 2 mm, incl. tubular plastic case, without Manufacturer’s Test Certificate M Cutter 295/V and holder, with 11 edges, cutting distance 1 mm, incl. tubular plastic case, without Manufacturer’s Test Certificate M Folding Ruler with 10 swivel-mounted folding rulers of 1 mm each as supplied with model 295/III, without Manufacturer’s Test Certificate M Folding Ruler with 10 swivel-mounted...

Order Information Figure Cutter (Spare Part) for models 295/III, 295/XII and 295/XIII Cutter (Spare Part) for model 295/IV Cutter (Spare Part) for model 295/V Cutter (Spare Part) for model 295/VI Cutter (Spare Part) for models 295/VII and 295/XI Test Tip (Spare Part) for model 295/XIV Reference Class: Most versions of Model 295 (without 295/XIV, 295/XV) are supplied with a Manufacturer’s Certificate M in accordance with DIN 55 350-18 that includes among others the following information: Spacing between the outer cutting edges (at Multi-Cross Cutter), angle of cutting edge, cutting edge, deviation...

11 Since 1994, the European standard EN ISO 2409 replaces the national standards DIN 53151, BS 3900:E6, NF T 30-38, NEN 5337 and SIS 184172. 4) The cross hatch test is intensified by a subsequent deep drawing test acc. to EN ISO 1520, which can be performed using the ERIChSeN Cupping Test Machines, Models 200 and 202 EM. Cuts’ appearance Completely smooth blades of the cuts, without any loss of coating material. Loss of small coating material's particles, detached from the cuts' intersections; chipped surface not more than 5 % of the cross hatch cut's area. Loss of small coating material's flakes...
