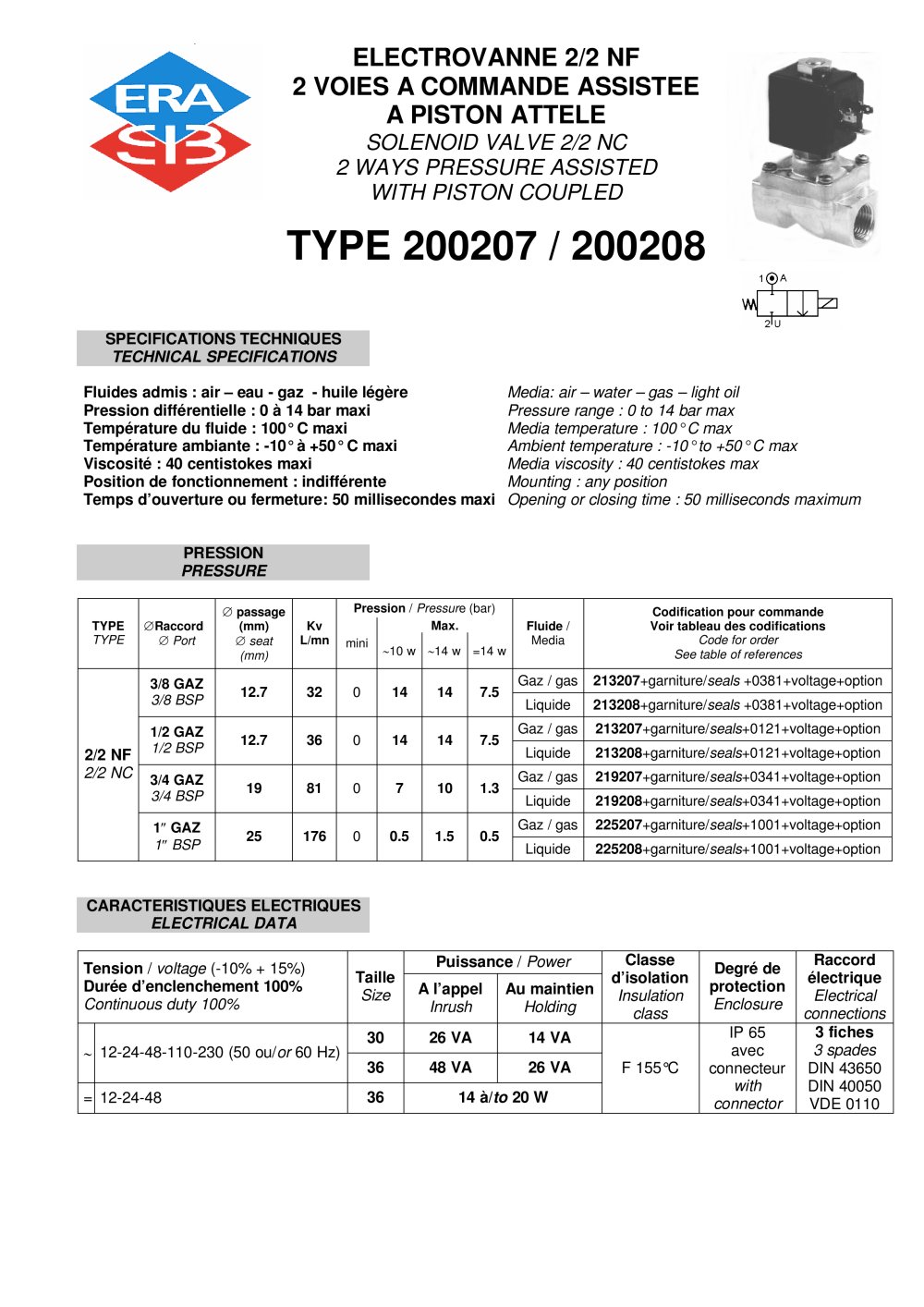

Piston coupled 2/2 NC solenoid valve-brass- SSteel
1 / 2 PagesView full catalog
Piston coupled 2/2 NC solenoid valve-brass- SSteel
Product catalog summary
Technical Specifications
The solenoid valve is designed for use with air, water, gas, and light oil. It operates within a pressure range of 0 to 14 bar and can handle media temperatures up to 100°C. The ambient temperature range is -10°C to +50°C, and the maximum media viscosity is 40 centistokes. The valve can be mounted in any position and has an opening or closing time of 50 milliseconds maximum.
The solenoid valve is designed for use with air, water, gas, and light oil. It operates within a pressure range of 0 to 14 bar and can handle media temperatures up to 100°C. The ambient temperature range is -10°C to +50°C, and the maximum media viscosity is 40 centistokes. The valve can be mounted in any position and has an opening or closing time of 50 milliseconds maximum.
Pressure and Media
The valve is available in different port sizes (3/8, 1/2, 3/4, and 1 inch BSP) with varying flow coefficients (Kv) and pressure ratings. The codification for ordering includes specific codes for gas and liquid applications, along with seal and voltage options.
The valve is available in different port sizes (3/8, 1/2, 3/4, and 1 inch BSP) with varying flow coefficients (Kv) and pressure ratings. The codification for ordering includes specific codes for gas and liquid applications, along with seal and voltage options.
Electrical Data
The valve operates on various voltages (12-230V, 50 or 60 Hz) with power ratings of 14 to 48 VA for AC and 14 to 20 W for DC. It has a continuous duty cycle of 100%, insulation class F (155°C), and an enclosure rating of IP 65 with a connector.
The valve operates on various voltages (12-230V, 50 or 60 Hz) with power ratings of 14 to 48 VA for AC and 14 to 20 W for DC. It has a continuous duty cycle of 100%, insulation class F (155°C), and an enclosure rating of IP 65 with a connector.
Construction
The valve body is made of brass, with stainless steel used for the tube and internal parts. Seals and gaskets are available in NBR, EPDM, or FKM, and the coil is moulded in polyamide.
The valve body is made of brass, with stainless steel used for the tube and internal parts. Seals and gaskets are available in NBR, EPDM, or FKM, and the coil is moulded in polyamide.
Options
Available options include a PG9 connector (DIN 43650 A) and an explosion-proof enclosure with protection mode II 2 G/D EEx d IIC T6 according to ATEX standards.
Available options include a PG9 connector (DIN 43650 A) and an explosion-proof enclosure with protection mode II 2 G/D EEx d IIC T6 according to ATEX standards.
Repair Kits
Repair kits are available for the coil and complete plunger with O-rings, with specific codification for ordering based on the seal material.
Repair kits are available for the coil and complete plunger with O-rings, with specific codification for ordering based on the seal material.
