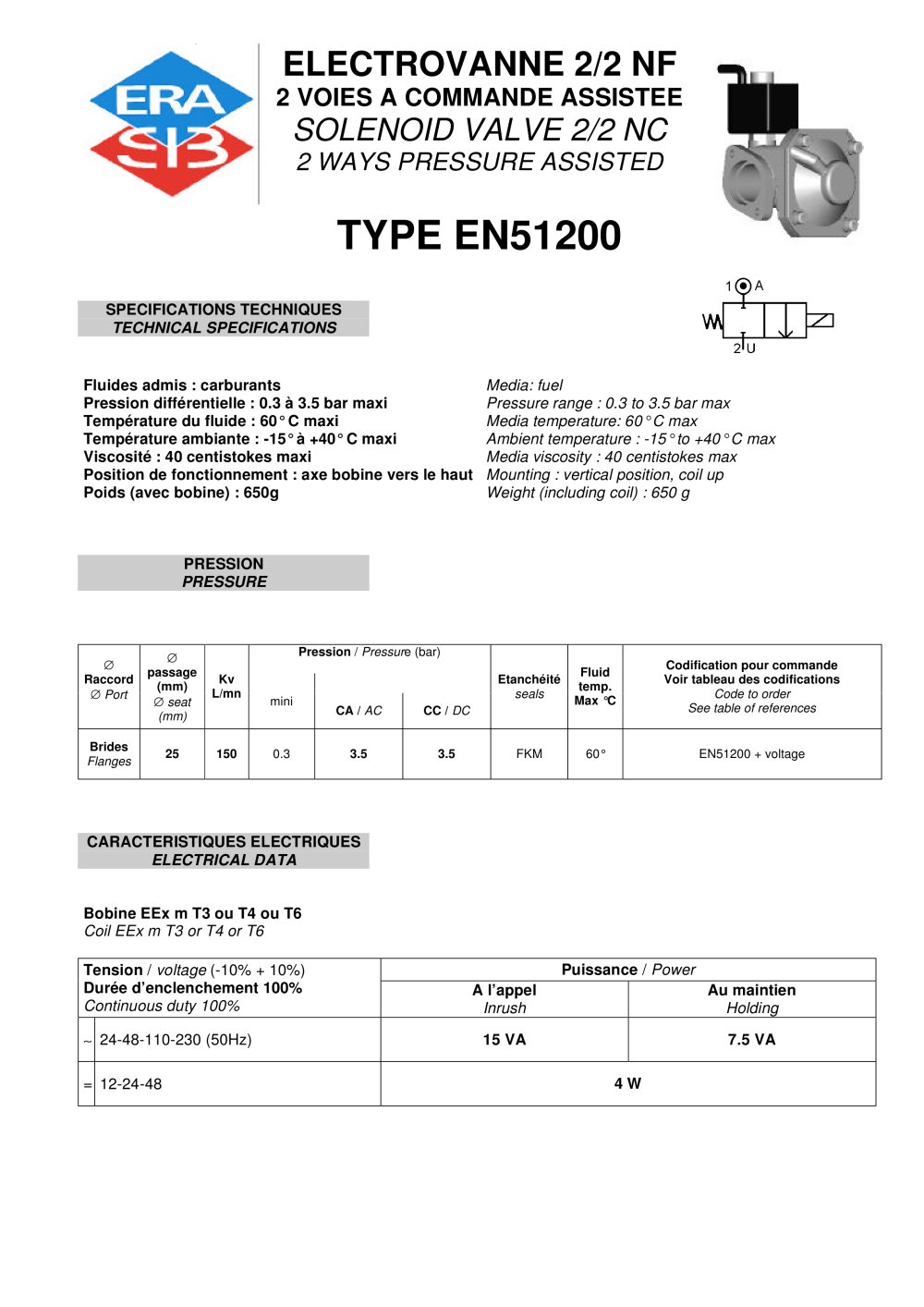

Media: fuelPressure range : 0.3 to 3.5 bar max Media temperature: 60 C max Ambient temperature : -15а to +40 C max Media viscosity : 40 centistokes max Mounting : vertical position, coil upWeight (including coil) : 650 g SPECIFICATIONS TECHNIQUES TECHNICAL SPECIFICATIONS Fluides admis : carburantsPression diffЩrentielle : 0.3 3.5 bar maxi Temprature du fluide : 60ੰ C maxi Temprature ambiante : -15 鰠 +40 C maxi ViscositЩ : 40 centistokes maxi Position de fonctionnement : axe bobine vers le hautPoids (avec bobine) : 650g PRESSION PRESSURE > ∅ Pression / Pressur e (bar) ∅ Raccord passage(mm) KvL/mn Etanchit Fluidtemp.Max 驰CCodification pour commandeVoir tableau des codifications ∅ Port ∅ seat(mm) mini seals Code to orderSee table of references CA / AC CC / DC Brides Flanges 25150 0.3 3.53.5 FKM60EN51200 + voltage CARACTERISTIQUES ELECTRIQUES ELECTRICAL DATA Bobine EEx m T3 ou T4 ou T6 Coil EEx m T3 or T4 or T6 A lВappel Au maintien Continuous duty 100% Tension / voltage (-10% + 10%) Inrush Puissance / Power Holding Dure denclenchement 100% 钢ȼ 24-48-110-230 (50Hz) 15 VA7.5 VA =12-24-48 4 W >

Open the catalog to page 1

ENCOMBREMENT OVERALL DIMENSIONS CONSTRUCTION CONSTRUCTION Body : light alloyTube and internal parts : stainless steelSeals and gaskets : FKM Moulded coil : resin Corps : alliage lgerTube et pices internes : acier inoxydableJoints et clapets : FKM Bobine surmoul騩e : rsine OPTIONS OPTIONS Version 1 颀 GAZ 1 Ӣ3 BSP Version KITS DE MAINTENANCE REPAIR KIT Dsignation Codification pour commande designation Code to order Bobine Voir tableau des codifications bobines Coil See table of coils references Noyau quip驩 + joints + membrane KITEN51200 Complete plunger + Orings + membrane KITEN51200 >

Open the catalog to page 2
