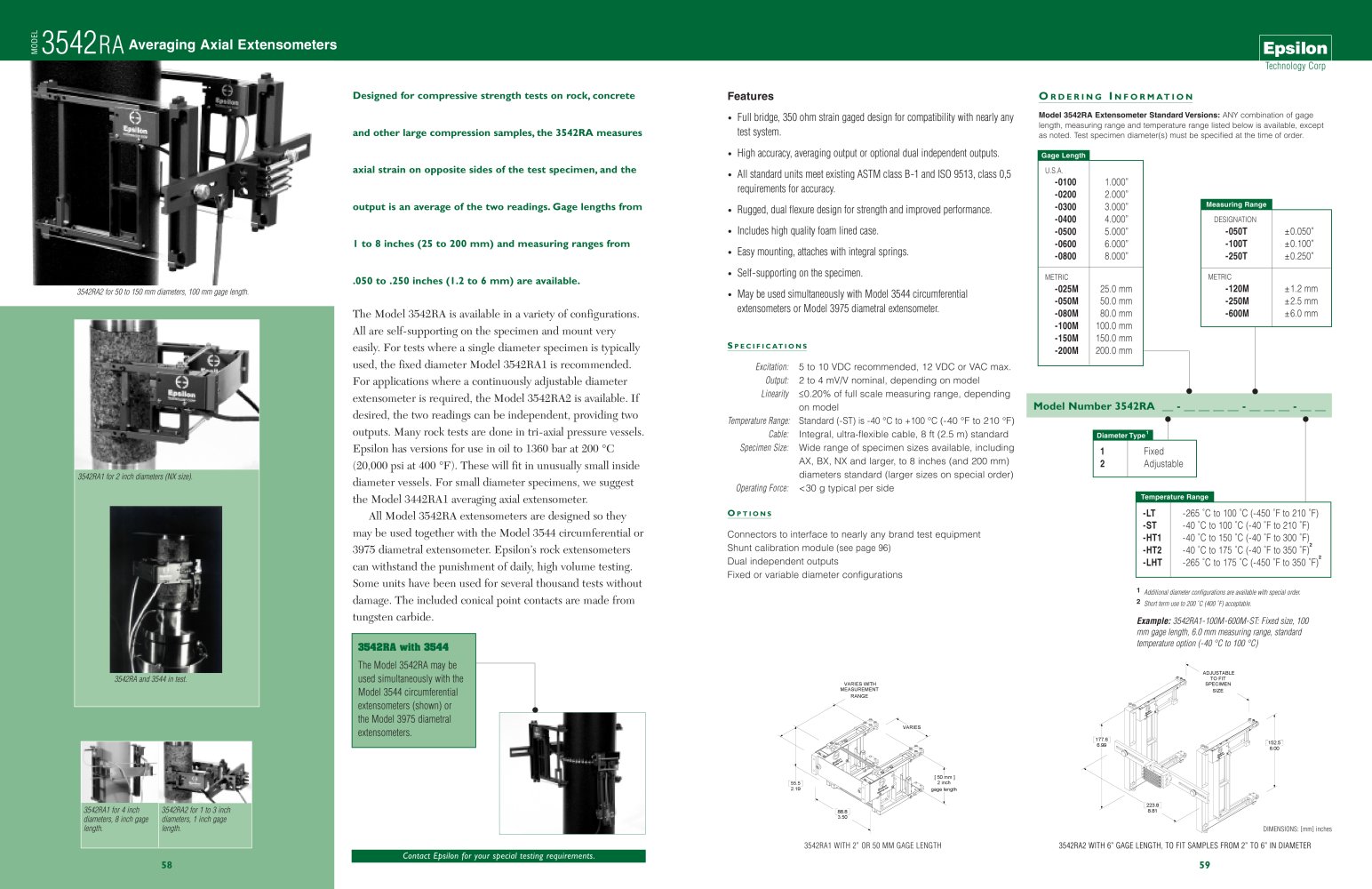

Model 3542RA Averaging Axial Extensometers

Product catalog summary
Features:
  • Full bridge, 350 ohm strain gaged design compatible with most test systems.
  • High accuracy with averaging output or optional dual independent outputs.
  • Meets ASTM class B-1 and ISO 9513, class 0.5 accuracy requirements.
  • Rugged dual flexure design for enhanced strength and performance.
  • Includes a high-quality foam-lined case for protection.
  • Easy mounting with integral springs, self-supporting on specimens.
  • Compatible with Model 3544 circumferential and Model 3975 diametral extensometers.
Specifications:
  • Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.
  • Output: 2 to 4 mV/V nominal, model-dependent.
  • Linearity: ≤0.20% of full scale measuring range, model-dependent.
  • Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F).
  • Cable: Integral, ultra-flexible, 8 ft (2.5 m) standard.
  • Specimen Size: Available for a wide range of sizes, up to 8 inches (200 mm) diameters.
  • Operating Force: <30 g typical per side.
Options:
  • Connectors for various test equipment brands.
  • Shunt calibration module.
  • Dual independent outputs.
  • Fixed or variable diameter configurations.
Model Variants:
  • 3542RA1: Fixed size, suitable for single diameter specimens.
  • 3542RA2: Adjustable diameter, suitable for varying specimen sizes.
Ordering Information:
  • Specify gage length, measuring range, and temperature range.
  • Test specimen diameter(s) must be specified at order time.
  • Additional diameter configurations available on special order.
Applications:
  • Designed for compressive strength tests on rock, concrete, and large compression samples.
  • Measures axial strain on opposite sides of the specimen, averaging the readings.
  • Suitable for use in tri-axial pressure vessels, with versions for oil use up to 1360 bar at 200 °C.
  • Compatible with Model 3544 circumferential and 3975 diametral extensometers.
Durability:
  • Designed to withstand high volume testing, with some units enduring thousands of tests without damage.
  • Conical point contacts made from tungsten carbide for durability.
