ENSTO

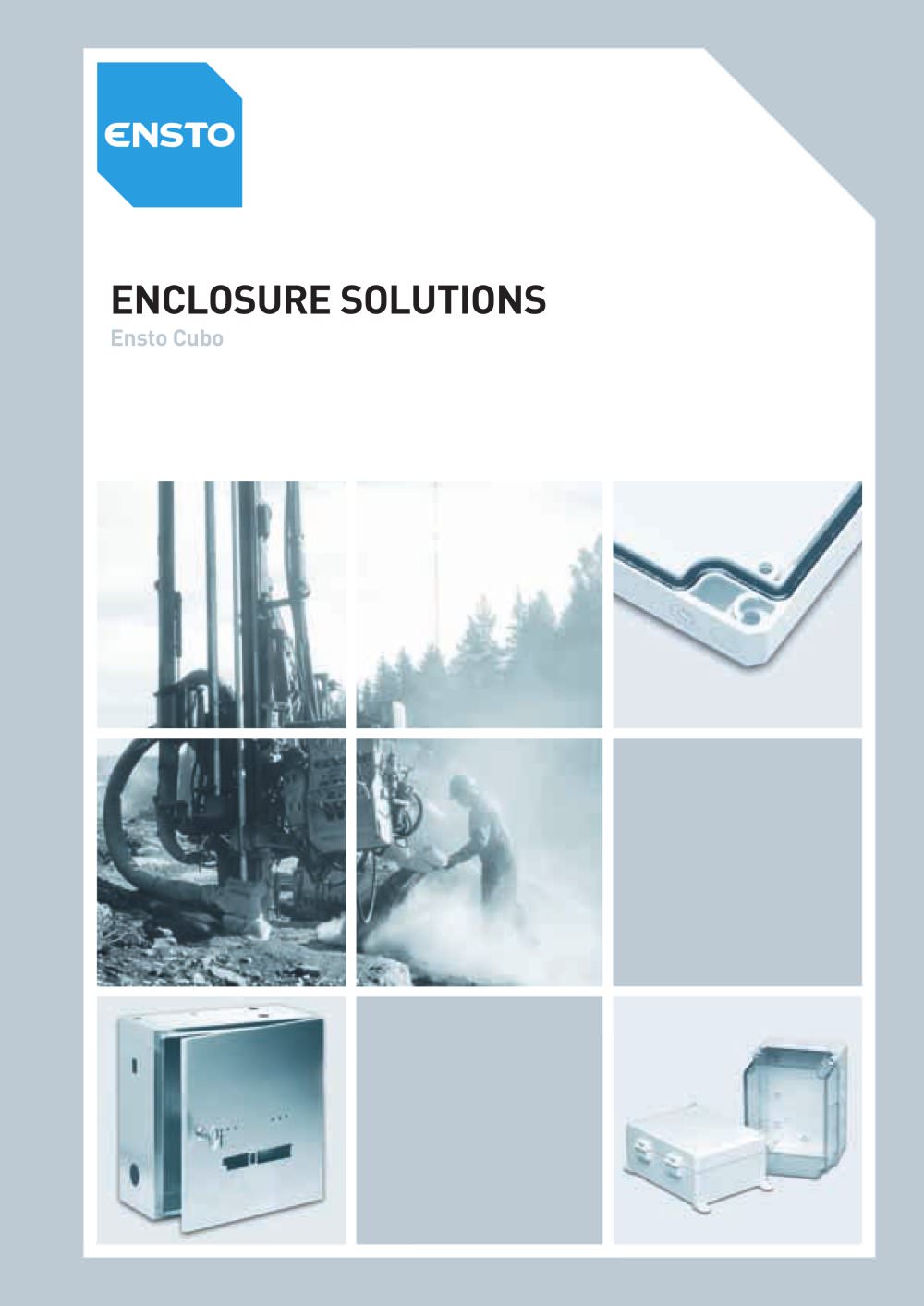

Enclosure Solutions

Enclosure Solutions

Product catalog summary

Overview
Ensto Cubo specializes in enclosure technology, offering a wide range of products for various applications, including extreme conditions. They provide standard and customized solutions primarily for OEM industries, electrical and electronics sectors, and panel builders, as well as contractors and maintenance providers.

General Specifications
Enclosures are available in thermoplastic (polycarbonate and ABS) and metal (steel, stainless steel, and acid-proof steel), designed to meet high protection standards with IP ratings from IP 55 to IP 66/67, suitable for demanding environments.

Thermoplastic Enclosures
Made from high-quality polycarbonate or ABS, these enclosures offer high impact resistance and are lightweight. Polycarbonate is suitable for outdoor use with a temperature range of -50°C to +120°C, while ABS is more cost-effective but limited to indoor use due to lower UV resistance.

Steel Enclosures
Available in polyester-painted mild steel, stainless steel (AISI 304), and acid-proof steel (AISI 316), these enclosures provide high impact resistance and excellent corrosion resistance. Stainless steel is ideal for outdoor and industrial environments, while acid-proof steel is suited for highly corrosive settings.

Customization Options
Ensto offers customization services, including additional cut-outs, openings, and tailored dimensions. Enclosures can be equipped with specific components like DIN-rails and cable glands, and can be painted in custom colors or treated for specific aesthetic effects.

Certifications and Standards
Ensto Cubo enclosures comply with EN 62208 and have various certifications, including UL, cUL, and GOST. They also meet NEMA safety classifications, ensuring protection against various environmental factors.

Maintenance Recommendations
Regular maintenance is advised, with annual servicing for indoor enclosures and more frequent checks for outdoor installations. Maintenance includes checking for dust, moisture, and the condition of the paintwork.

Introduction to Product Groups
Ensto Cubo offers a range of OEM enclosures made from high-quality materials such as polycarbonate, ABS plastic, aluminium, and glass-reinforced polyester. These enclosures are designed to meet various protection classes, with IP 66/67 for thermoplastic enclosures and IP 65 for aluminium and polyester enclosures.

Enclosure Types and Specifications

Ensto Cubo D: Small OEM enclosures made from polycarbonate or ABS, available in grey or transparent covers, designed for demanding OEM use, protecting sensitive components.
Ensto Cubo S: General-purpose enclosures with plain sides or pre-pressed knock-outs.
Ensto Cubo O and C: Medium to large general-purpose enclosures with plain sides or flange knock-outs.
Ensto Cubo W: Wall-mounted polycarbonate enclosures with hinged doors and quick-release latches.
Ensto Cubo E: Steel cabinets available in polyester-painted mild steel, stainless steel, or acid-proof steel.
Ensto Cubo F: Sheet steel terminal enclosures with support for DIN-rails or mounting plates.

Product Number Coding
The product numbers provide detailed information about the enclosures, including family, material, dimensions, and additional characteristics.

Technical Features
Ensto Cubo D enclosures are designed for a wide range of temperatures and have specific impact resistance and flammability ratings. They are certified by various standards, including FI, GL, UL, and GOST.

Accessories
Ensto Cubo D enclosures can be customized with various accessories such as hinges, fastening lugs, cover plugs, and special cover screws.

Applications
Ensto Cubo D enclosures are suitable for protecting sensitive components in various systems, such as water heating systems for swimming pools and gas distribution systems.

Overview of Ensto Cubo Enclosures

1. Ensto Cubo H (Aluminium Enclosures)
Ensto Cubo H enclosures are made from aluminium, offering high impact resistance and excellent temperature resistance. They meet machine industry standards for resistance against solvents, petrol, and oil.

2. Ensto Cubo M (Polyester Enclosures)
Manufactured from glass-reinforced polyester, Ensto Cubo M enclosures are designed for demanding environments, such as oil refineries and chemical industries.

3. Ensto Cubo S (Thermoplastic Enclosures)
Ensto Cubo S enclosures are small to medium-sized general-purpose enclosures made of thermoplastic, with polycarbonate or ABS options.

Technical Specifications

Ensto Cubo H: IP 65, Impact Resistance 7 Nm, Operating Temperature -40 °C to +80 °C
Ensto Cubo M: IP 65, Impact Resistance 7 Nm, Operating Temperature -50 °C to +150 °C
Ensto Cubo S: IP 66/67, Impact Resistance IK 08/IK 07, Operating Temperature -50 °C to +100 °C

Recommendations
For serial production, it is recommended to order customized enclosures to address machining challenges.

Overview: The document provides detailed specifications and features of Ensto Cubo W and Ensto Cubo E wall-mounted cabinets.

Ensto Cubo W Cabinets:

These cabinets come with flanges and include all necessary items for installation and cable entries in one package.

Ensto Cubo E Cabinets:

Made from polyester painted mild steel or stainless steel, available in 31 standard sizes.

Technical Features:

Degree of protection: IP 66, with two doors IP 55.
Impact resistance: IK 09.

Additional Features:

Rain shelters and mounting plates are included in the package.

Specifications:
The document provides detailed specifications for Ensto Cubo E and EO series wall-mounted cabinets.

Procedures:
Installation of Ensto Cubo E cabinets involves using fastening lugs that can be mounted from outside the cabinet.

Standards and Certifications:
The Ensto Cubo EO cabinets comply with EN 60529 for IP 66 protection and EN 62262 for impact resistance (IK 09).

Accessories:
The document lists various accessories available for the cabinets, including locks, handles, ventilation flanges, and door stoppers.

Recommendations:
It is recommended to use ventilation flanges for cabinets housing heat-generating equipment.

Key Data from Tables:
The tables in the document provide dimensions, product codes, and EAN 13 codes for various cabinet models and accessories.

Critical Information:
The Ensto Cubo EO series is particularly suited for demanding industrial environments, offering robust protection and flexibility in assembly.

Overview: The document provides detailed specifications and options for Ensto Cubo series enclosures, including general-purpose cabinets, terminal enclosures, EMC enclosures, and modular enclosures.

General Purpose Cabinets: The Ensto Cubo EO series includes various fasteners and adapters for securing doors.

Terminal Enclosures - Ensto Cubo F: These enclosures are available in painted steel or stainless steel, with options for acid-proof steel upon request.

EMC Enclosures - Ensto Cubo EMC: Designed for electromagnetic compatibility, these polycarbonate enclosures protect against external and internal electromagnetic disturbances.

Technical Features: The document lists technical specifications for each enclosure type, including protection ratings, impact resistance, operating temperatures, and material details.

Accessories: Various accessories are available, including cover plates, hinges, and fastening lugs.

Overview of Ensto Cubo R Modular Enclosures:
Ensto Cubo R series modular enclosures are designed with a stylish appearance and are highly suitable for humid conditions due to their IP 65 protection rating.

Specifications:
- Materials: Polycarbonate or ABS
- Protection Degree: IP 65
- Impact Resistance: IK 08 for polycarbonate, IK 07 for ABS
- Operating Temperature: Polycarbonate: -50 °C to +100 °C, ABS: -40 °C to +60 °C
- Flammability: UL 94 V-2 to 5VA for polycarbonate, HB for ABS
- Certificates: FI, GOST

Features:
Large enclosures come with pre-mounted DIN-rails, DIN-rail profiles, and N/PE busbars.

StepBox Enclosures:
StepBox enclosures are designed for control, steering, and measuring devices containing electronics.

Accessories:
Various accessories are available, including quick release screws, wall fastening lugs, inspection windows, ventilation devices, and a range of connection muffles and wiring plugs.

Applications:
Ensto Cubo R enclosures are suitable for various applications, including humid environments, and are lockable for added security.

Overview: This document provides a detailed list of technical components and accessories related to RJ-45 patch panels, LSA+ mounting panels, and various accessories for network and cabinet installations.

Patch Panels:

ODP16 Series: RJ-45 patch panels with 16 openings, compatible with different connector brands.
ODP32 Series: RJ-45 patch panels with 32 openings, also compatible with various connector brands.

LSA+ Mounting Panels:

ODLSA.2: Supports 10 to 60 connectors.
ODLSA.4: Supports 50 to 150 connectors.

Accessories:

ODWP.4: Castors for floor-standing cabinets.
ODAFP.4: Levelling feet set for floor-standing cabinets.
ODVP Series: Fan sets for cooling.
ODSS.1: Shelf with a telescopic slide.
ODES Series: Static shelves available in different depths and sizes.
ODSP6.2: Power sockets with Schuko plugs.
ODBP Series: Blanking panels available in various sizes.

Accessories for 10" Wall Mounting Cabinets:

ODP12.3: Patch panel with RJ-45 and D17, 12 openings.
ODPSC.1: Optical fibre panel for patch panel.
ODLSAMB.1: Mounting panel for patch panel, LSA+.
OD46A: Insert frame for flush mounting.

Additional Information: The document also includes contact information for Ensto Control Oy, a company based in Porvoo, Finland, which provides these components and accessories.
