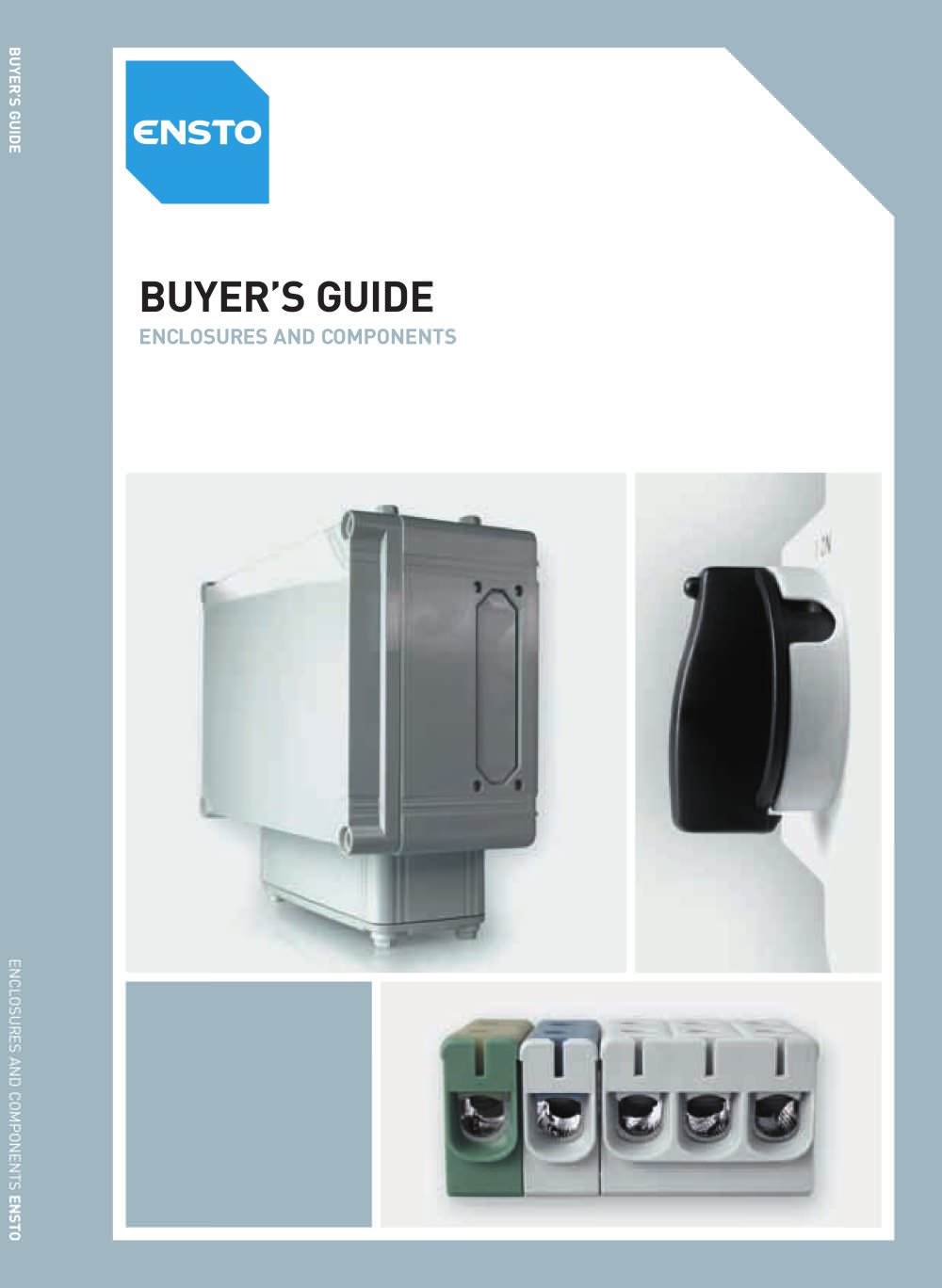

Buyer's Guide
98Pages

ENCLOSURES AND COMPONENTS ENSTO >

2 Ensto Control OyP.O. Box 77 (Ensio Miettisen katu 2) 06101 Porvoo FinlandTel. +358 (0)204 76 21, Fax +358 (0)204 76 2516www.ensto.com, ensto@ensto.com >

Page: Key to the Codes 4 Ensto Cubo OEM Enclosures Ensto Cubo D, Thermoplastic Small to Medium Size Enclosures 5 Ensto Cubo H, Aluminium Enclosures 8 Ensto Cubo M, Polyester Enclosures 10 Ensto Cubo General Purpose Thermoplastic Enclosures Ensto Cubo S, Small to Medium Size General Purpose Enclosures 12 Ensto Cubo O, Medium Size to Large General Purpose Enclosures 16 Ensto Cubo C, Medium Size to Large Enclosures with Flange Knock-outs 19 Ensto Cubo P Panel Building System 26 Ensto Cubo Wall Mounted Cabinets Ensto Cubo W, Thermoplastic Wall Cabinets 33 Ensto Cubo E, Steel Wall Cabinets 35...

The product numbers containing ten or eleven symbols give much information on the enclosure. Below instructions how to read the product numbers: Symbol 1 2 3 4 5 6 7 8 9 10 11 Enclosure S P C M 0 8 1 3 0 8 T E F E F 3 0 2 0 1 5 F S U P 3 0 1 5 0 81 > st symbol informs about the family of the enclosure. The enclosures in the examples above are a small general purpose enclosure of the S series, a wall mounted cabinet of the E series and a terminal enclosure of the F series.2 > p oly c arbonateFE = painted steel ( > nd and 3 > rd symbol inform about the material. The first enclosure is a...

The Ensto Cubo D enclosures are dimensioned according to the so called European Norm enclosures. The enclosures always have plain sides and captive cover screws of stainless steel. The Ensto Cubo D range is designed for demanding OEM use: e.g. for protecting of sensitive electronic, electric and pneumatic components and as terminal box.Special features are fastening pods inside the cover and slots for printed circuit boards in the base.Material polycarbonate or ABS, standard colour grey RAL 7035.Cover grey or transparent the transparent cover always comes in polycarbonate. 120 mm 80 mm >

6 Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

The Ensto Cubo H enclosures are dimensioned according to the so called European Norm enclosures. The enclosures always have plain sides and captive cover screws of stainless steel. The Ensto Cubo H range meets the requirements of the machine and military industry as regards resistance against solvents, petrol and oil. Excellent temperature, impact and RFI/EMI (additional gasket required) resistance. Standard colour grey RAL 7001. 130 mm 80 mm >

The Ensto Cubo M enclosures are dimensioned according to the so called European Norm enclosures. The enclosures always have plain sides and captive cover screws of stainless steel. Thanks to their sturdy construction, their strength, corrosion and weather resistance and high tightness, they meet the demands of durability in severe chemical environments.The Ensto Cubo M enclosures are made of glass reinforced polyester; standard colour grey RAL 7000. 360 mm 160 mm >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

The Ensto Cubo S enclosures are made of polycarbonate, with pre-pressed knock-outs (Pg or metric) or with plain sides for individual machining of holes. Enclosures with plain sides are available both in ABS and polycarbonate. Standard colour grey RAL 7035; cover grey or transparent. The transparent cover always comes in polycarbonate. 125 mm 75 mm >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

14 Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

The Ensto Cubo O general purpose enclosures are made of polycarbonate. The sides are plain. Three sizes are also available with pre-pressed metric knock-outs. Material alternative for enclosures with plain sides is ABS. Standard colour grey RAL 7035, cover grey or transparent. The transparent cover always comes in polycarbonate. All dimensions follow 100 mm modules; the smallest 200 x 200 mm and the largest 400 x 600 mm, depth 130 or 185 mm. All sizes have a 55 mm deep extension frame for alternative depths.Special features of the series are the possibility to mount the cover onto the back...

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

The Ensto Cubo C general purpose enclosures are made of polycarbonate.The bases have flange knock-outs according to SFS standard for flanges. Standard colour grey RAL 7035, cover grey or transparent.All dimensions follow 100 mm modules; the smallest 200 x 200 mm and the largest 400 x 600 mm, depth 130 or 185 mm. All sizes have a 55 mm deep extension frame for alternative depths.Special features are adjustable elevators for the base corner slots allowing mounting of plates and panels at any height. The bases can easily be assembled to larger units. See also the Ensto Cubo P panel building...

20 Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code > OPCG36KWH Incl. cover screws and inspection window 113 x 153 mm 300 600 35 0.9200 12 6418677174186 >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

22 Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code > A = DIN rail spacing: 125 mm B = DIN rail spacing: 150 mm >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

24 Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code >

Ordering numberDescriptionDimensions mm W H DWeighteach kgInner depth mmStandard package pcsEAN 13 code > F2C50E 50 mm extension frame for F2 flange, PC 216 x 86 x 50 0.493 1 6418677173448 F1G Self-adhesive flange gasket, F1 size 137 x 48 0.002 1 6418677171925 F2G Self-adhesive flange gasket, F2 size 216 x 84 0.004 1 6418677172076 F1SS20 Flange bolt set, F1 size. Steel bolt with plastic head M6 x 20 0.071 1 6418677173066 F2SS20 Flange bolt set, F2 size. Steel bolt with plastic head + M8 nut M8 x 20 0.068 1 6418677181689 F2SS20L Flange bolt set, F2 size. Steel bolt with plastic head + steel...
