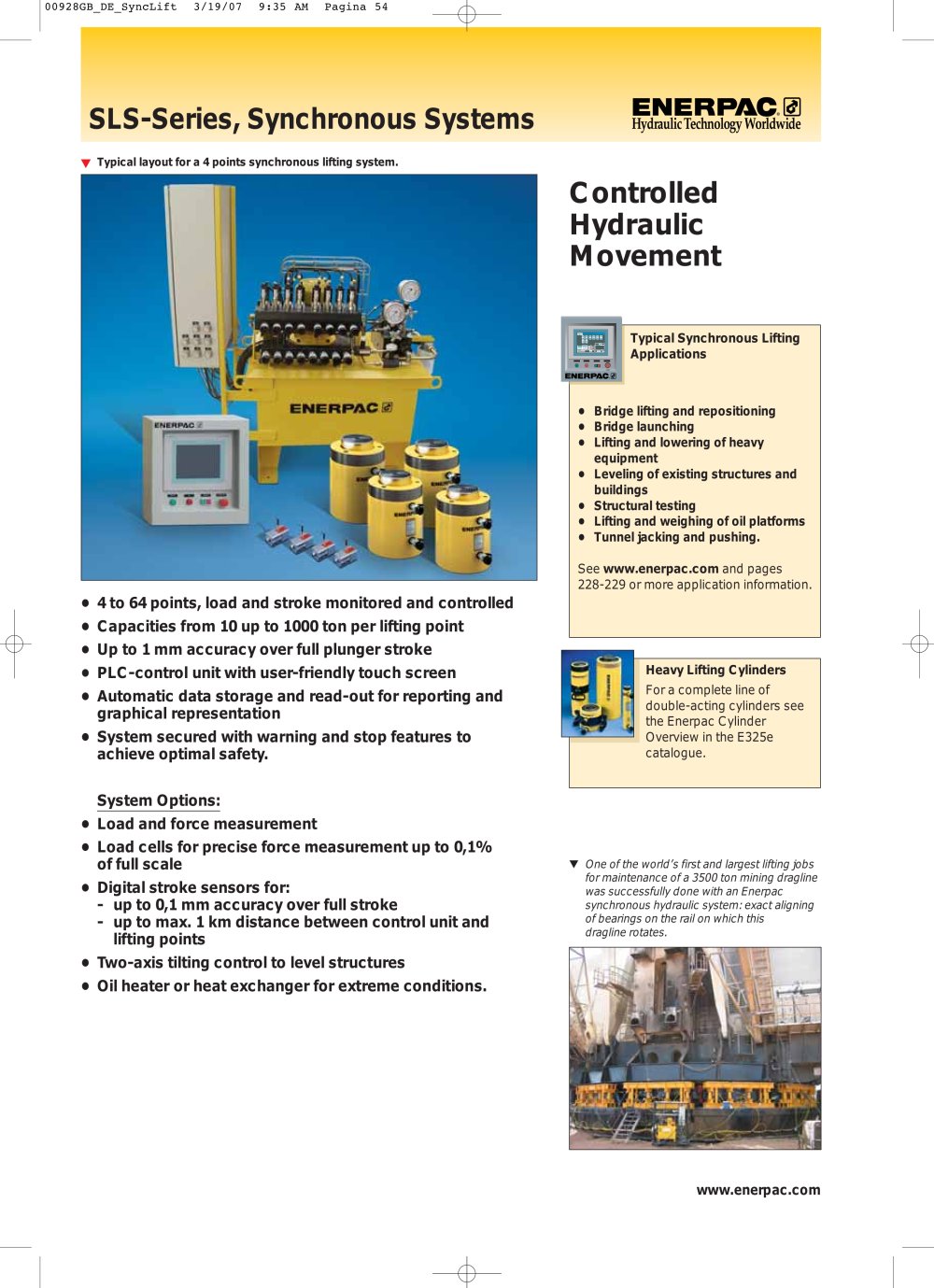

Typical layout for a 4 points synchronous lifting system. Typical Synchronous LiftingApplications ?Bridge lifting and repositioning?Bridge launching?Lifting and lowering of heavyequipment?Leveling of existing structures andbuildings?Structural testing ?Lifting and weighing of oil platforms?Tunnel jacking and pushing. See www.enerpac.com and pages228-229 or more application information. > Heavy Lifting Cylinders For a complete line ofdouble-acting cylinders seethe Enerpac CylinderOverview in the E325e catalogue. > One of the worlds first and largest lifting jobsfor maintenance of a 3500 ton mining dragline was successfully done with an Enerpac synchronous hydraulic system: exact aligning of bearings on the rail on which this dragline rotates.
Open the catalog to page 1Typical layout for a 4 points synchronous lifting system. 8 7 Capacity Per Lifting Point: > Hydraulic pump Hydraulic hoses Accuracy Over Full Stroke: PLC-control with touch screen Sensor cables > Hydraulic cylinders Solenoid control valves Maximum Operating Pressure: Stroke sensors Pressure transducer > Bridge lifting andlaunching system. The load is balanced on groups of CLL-Series lock nut cylinders. The hydraulic lifting, launching and balancing movements are synchronized with PLC-control. Contact Enerpac! Contact your distributor or theEnerpac office nearest to you foradvice and...
