RS402 / RS403 Outdoor 2 Way Motion Detector

RS402 / RS403 Outdoor 2 Way Motion Detector
1 / 1 PageView full catalog

RS402 / RS403 Outdoor 2 Way Motion Detector

Product catalog summary
Overview: The RS402 and RS403 are outdoor 2-way motion detectors designed for energy-saving and automatic lighting control. They are suitable for both indoor and outdoor applications, providing intelligent lighting solutions by activating lights only when necessary.
Specifications:
  • Model Names: RS402i2 / RS403i2
  • Rated Voltage: 220-240VAC, 50Hz
  • Operating Temperature: -20°C to +45°C
  • Rated Load:
    • Incandescent: 2000W
    • High Voltage Halogen: 1000W
    • Low Voltage Halogen: 400VA/300W
    • Fluorescent: 300VA/250W
    • Energy Saving or LED Lamp: 250VA/150W
  • Rated Protection: IP55
  • Detection Range: Front 16m at 2.4m height, 20°C
  • Detection Angle: 240° (RS402i2) / 360° (RS403i2)
  • Time Setting: 3 seconds to 15 minutes
  • Lux Setting: 5 - 1000 lux
  • Sensitivity Setting: 5 - 16m
  • Operation Modes: Auto, Short Pulse, Test, Push-button, Manual Override
  • Accessory: IRCB24 Remote Control
Dimensions: 147mm x 88mm x 50mm
Additional Notes: Specifications are subject to change without notice.
See more

Catalog excerpts

RS402 / RS403 Outdoor 2 Way Motion Detector-1

RS402 / RS403 Outdoor 2 Way Motion Detector 2 way motion detectors bring energy saving and automatic lighting control intelligently with ease and comfort. Lights are switched on only when needed and automatically, for all kinds of indoor and outdoor applications. Product Name Rated Voltage Operating Temperature Rated Load Incandescent: 2000W High Voltage Halogen: 1000W Low Voltage Halogen: 400VA/300W Fluorescent: 300VA/250W Energy Saving or LED Lamp: 250VA/150W Rated Protection Detection Range Detection Angle Time Setting Sens Setting Operation Mode / Function Auto / Short Pulse / Test / Push-button / Manual Override Model Name Specification is subject to change without notice. EmCom Technology Inc. 7F, No. 219, Sec. 3, Nanjing E. Rd., Taipei 10488, Taiwan Tel: +886-2-27177766 ｜ Fax: +886-2-27171800 ｜ [email protected]

 Open the catalog to page 1

All EmCom Technology Inc. catalogs and technical brochures

  1. Network Isolator for the Industrial Environment
    Network Isolator for the Industrial Environment

    2  Pages

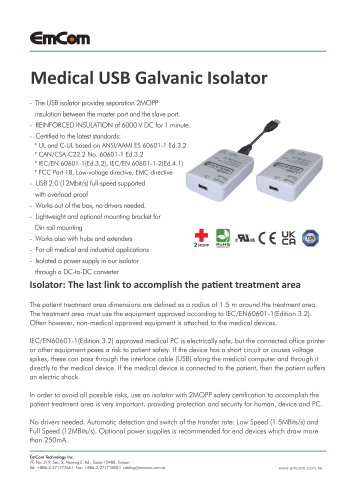

  2. USB Galvanic Isolator
