Explo 750T

Product catalog summary

Specifications:
The document describes a 75HP shot hole drilling rig mounted on a 4WD tractor. Key specifications include a 75HP diesel engine, a 35-liter fuel tank, and a 90-liter hydraulic tank. The hydraulic system features a fixed flow pump and a DANFOSS PVG 32 hydraulic valve. The chassis is made of welded steel with two hydraulic stabilizers and a pipe rack.

Procedures:
The rig is designed for fast displacement between holes and offers autonomy with components like a stroke rack and injection pump. The rotary head is powered by a hydraulic motor with a torque of 0-2000 Nm and a speed of 0-300 rpm. The mast has two length options (3200-4200mm) and supports a pull-up and pull-down force of 3000kg.

Standards and Recommendations:
The document notes that specifications are indicative and subject to change without prior notice. It emphasizes the rig's robustness and ease of use.

Options and Configurations:
Various configurations for the rotary head and mast are available, including options for a winch and different pump types. The mud pump options include a screw pump (200l/mn - 20 bars) and a piston pump (100l/mn - 35 bars).

Weight and Dimensions:
The rig's width is 1500mm, and its weight varies between 3500-4000kg depending on options.

Catalog excerpts

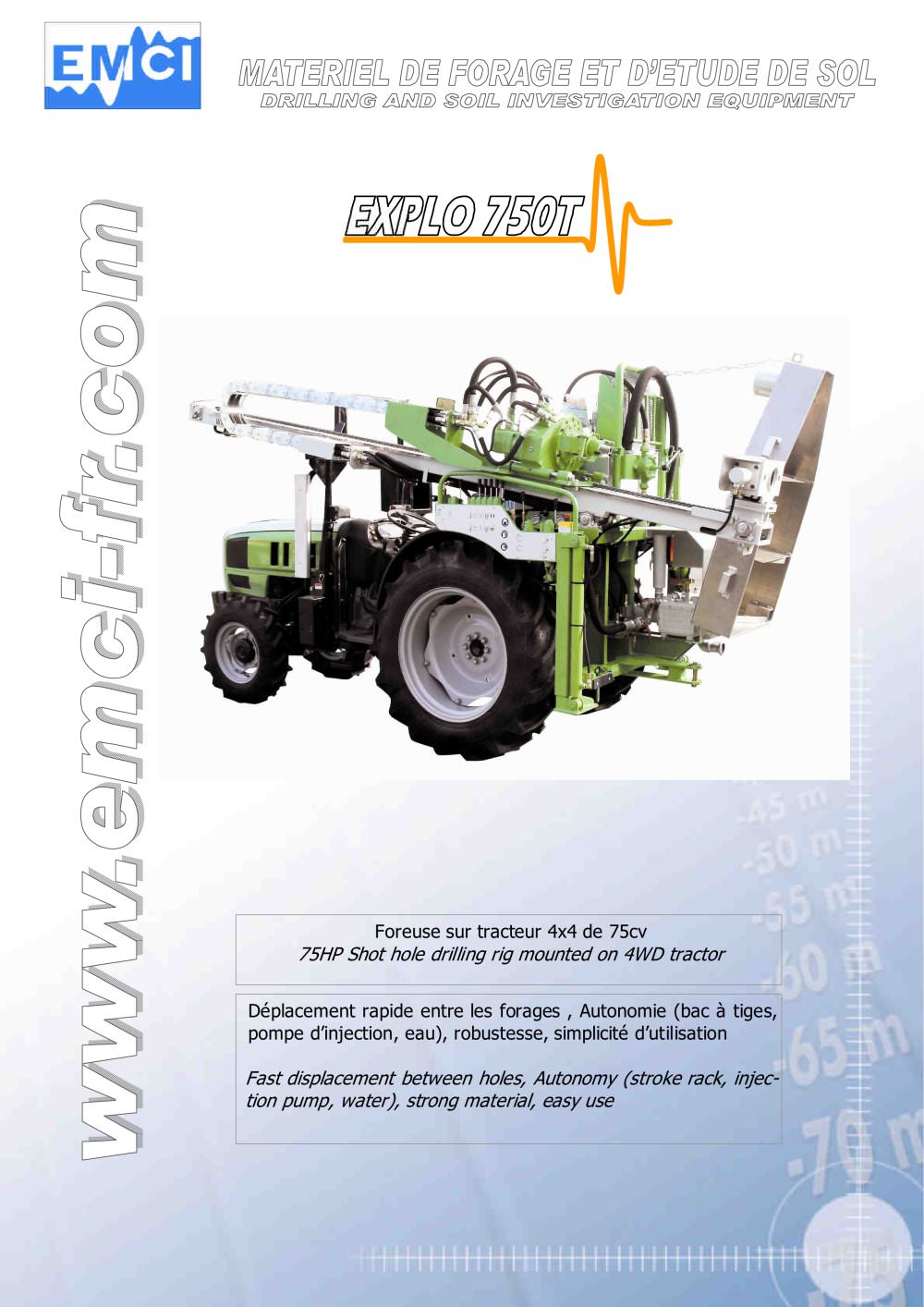

Déplacement rapide entre les forages , Autonomie (bac à tiges, pompe d’injection, eau), robustesse, simplicité d’utilisation Fast displacement between holes, Autonomy (stroke rack, injection pump, water), strong material, easy use Foreuse sur tracteur 4x4 de 75cv 75HP Shot hole drilling rig mounted on 4WD tractor

Open the catalog to page 1

Tableau de commande / control pannel Frein de tige / hyd clamp Pompe d’injection 200l/mn—20 bars / Inject ion pump 200l/mn—20 bars PORTEUR Tracteur 4 roues motrices 75cv Largeur : 1500mm CARRIER 4 wheel drive tractor 75HP Width : 1500mm GROUPE DE PUISSANCE Moteur 75cv diesel Réservoir carburant 35 litres Réservoir huile 90 litres Pompe à débit fixe Distributeur DANFOSS PVG 32 POWER PACK Diesel engine 75HP Fuel tank : 35 liters Hydraulic tank 90 litres Hydraulic pump Hydraulic valve DANFOSS PVG 32 CHASSIS Châssis mécano soudé acier 2 stabilisateurs hydrauliques Bac à tiges FRAME Welded steel frame...

Open the catalog to page 2

Fly-KV-SV-IG-A4-4c-1008:Fly-KV-SV-IG-A4-4c-0308 tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 3

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:18.00pt "Arial", sans-serif; } .font6 { font:30.00pt "Arial", sans-serif; } .font7 { font:21.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:13.00pt "Trebuchet MS", sans-serif; } ex o > * c $ il 3 ■ f SI Poids suivant options /Weight according to options : 3500×4000kg Tel ZI du Chemin Vert - 8,...
