Specifications:

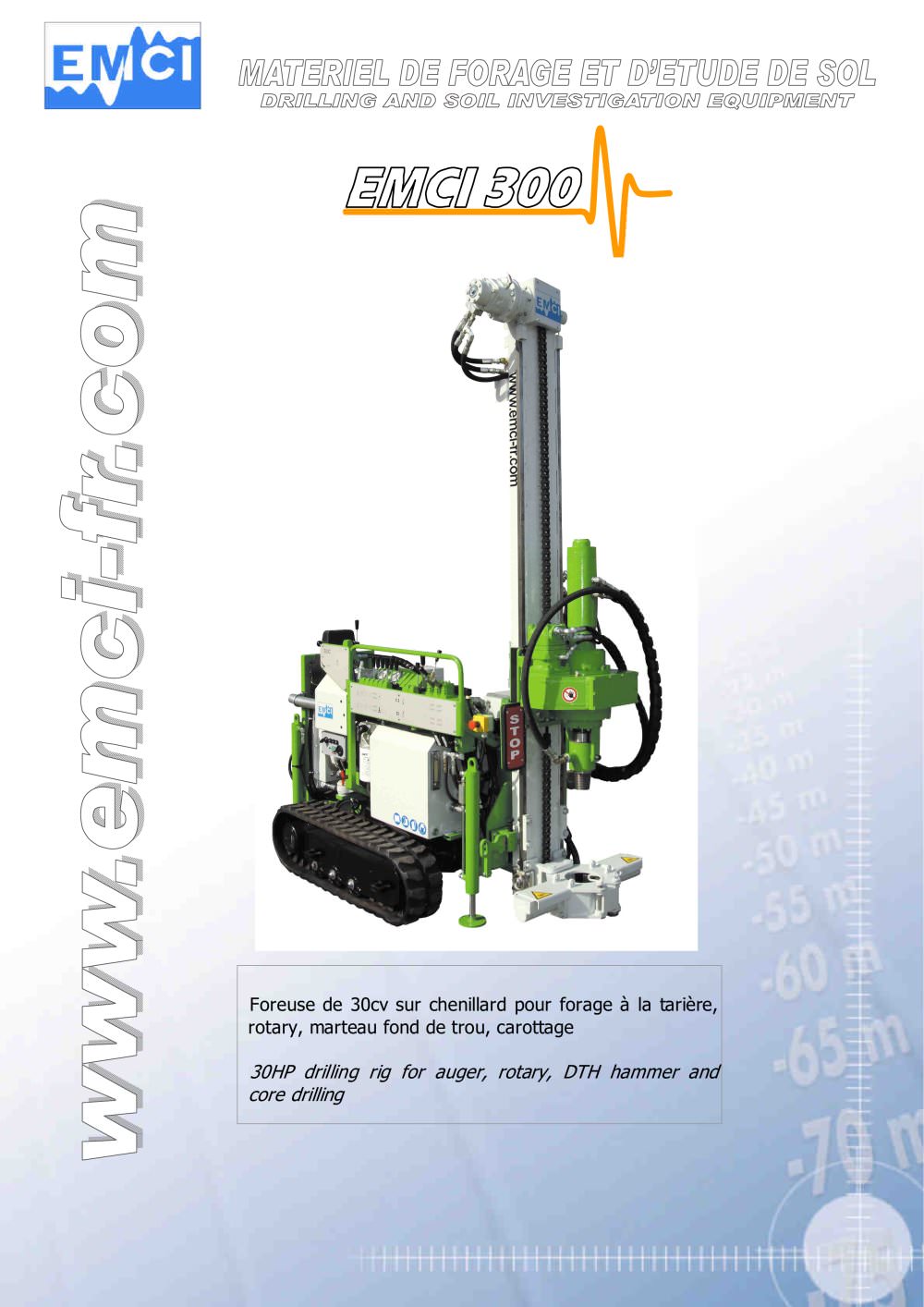

The document describes a 30HP drilling rig suitable for auger, rotary, DTH hammer, and core drilling. It features a hydraulic clamp with a 160mm opening and a hydraulic drifter for rotopercussion. The rig is mounted on a variable width rubber track crawler, with a minimum width of 750mm, and offers an option for steel tracks.

Power Pack:
The rig is powered by a 30HP air-cooled Deutz diesel engine, with a 35-liter fuel tank and a 60-liter hydraulic tank.

Chassis:
The chassis is made of welded steel and includes four hydraulic stabilizers. An optional pipe rack is available.

Rotary Head:
The rotary head features rotary injection, a hydraulic drifter, and an air-water swivel, with transmission through heavy-duty gears. Various configurations are available.

Mast:
The mast has a stroke of 1.5m, with translation through a hydraulic motor, sprocket, and chain. It offers a pull-up capacity of 2000kg and a push-down capacity of 1000kg. The mast can be locked in the drilling position, and the rotary head can be manually moved sideways. An optional 500kg winch and SPT are available.

Clamp:
The clamp is single with a maximum opening of 160mm.

Mud Pump:
The rig includes a piston pump with a capacity of 80 liters per minute at 30 bars, with other pumps available on request.

Rotary Head Configurations:
Two configurations are detailed: HT3.5 and HT07, with varying torque and speed specifications.

Additional Information:
The specifications are indicative and subject to change without prior notice. The weight of the rig varies between 1350kg and 1600kg depending on options.
