Crawler drill SILEA

Product catalog summary

Overview: The Silea is a versatile hydraulic drilling rig designed for geotechnical investigations, environmental studies, and water well drilling. Its compact size allows it to operate in areas with difficult access.

Carrier: The rig is equipped with a variable width rubber track crawler, with a width ranging from 790 to 1050mm. There is an option for a fixed track with steel tracks.

Power Pack: It features a 50HP silent diesel engine by Hatz, with a 35-liter fuel tank and a 90-liter hydraulic tank. It includes a triple hydraulic pump and a DANFOSS PVG 32 hydraulic valve.

Frame: The frame is made of welded steel and includes four hydraulic stabilizers, two of which are articulated. An optional pipe rack is available.

Rotary Head: The rotary head supports rotary injection and hydraulic drifter functions, with air and water swivel capabilities. It uses heavy-duty gear transmission and offers various configuration options.

Mast: The mast features translation by orbit motor and double chain, with a pull-up capacity of 2500kg and a pull-down capacity of 1500kg. It includes a mast locking device for drilling position and offers options such as a 4000kg extraction pull-up jack and a 500kg winch.

Clamp: The rig includes a single hydraulic clamp with a 170mm opening, with options for a breaking clamp and hydraulic fork spanner.

Additional Features: The Silea offers remote control for track movement, a pipe rack, a hydraulic clamp, a control panel, and a fitting for a parameter recorder. The rotary head model HT07 provides various torque and speed settings.

Specifications: The rig's weight varies between 2000 and 2500kg depending on the options selected. Specifications are indicative and subject to change without prior notice.

Catalog excerpts

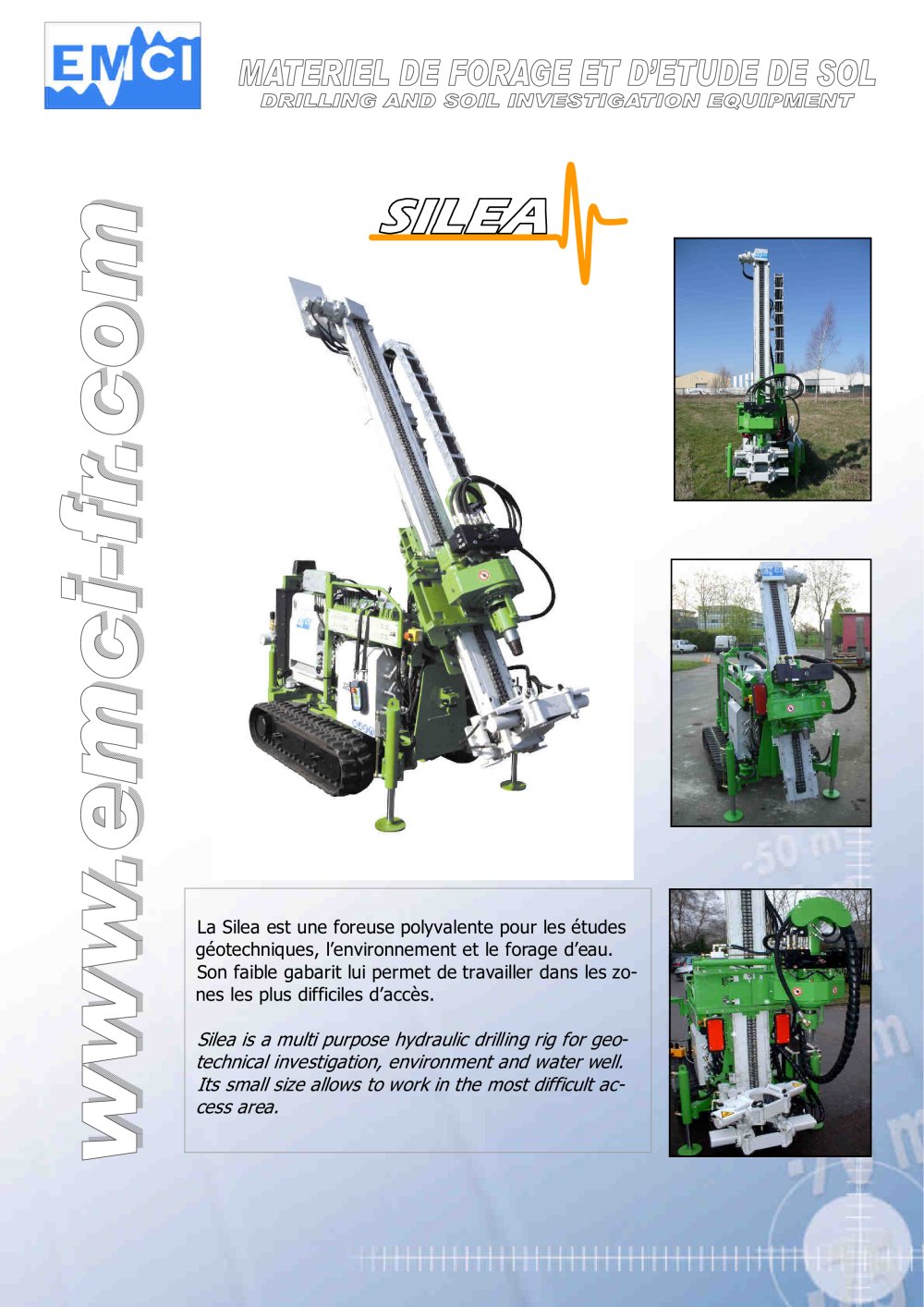

La Silea est une foreuse polyvalente pour les études géotechniques, l’environnement et le forage d’eau. Son faible gabarit lui permet de travailler dans les zones les plus difficiles d’accès. Silea is a multi purpose hydraulic drilling rig for geotechnical investigation, environment and water well. Its small size allows to work in the most difficult access area.

Open the catalog to page 1

Radiocommande de deplacement / track remote control Rack a tiges/pipe rack Frein de tige / hydraulic clamp Tableau /control panel Verrouillage mat / mast locking devis Predisposition enregistreur / fitting for parameter recorder

Open the catalog to page 2

Remorque 3500kg / Trailer 3500kg Silea avec mât court / Silea with short mast TETE ROTATION : HT07 ROTARY HEAD : HT07 COUPLE / TORQUE MAX VITESSE / SPEED MAX V. 100 120 da.Nm 400 tr/mn – rpm V. 160 180 da.Nm 280 tr/mn – rpm V. 250 330 da.Nm 160 tr/mn – rpm V. 315 430 da.Nm 110 tr/mn – rpm SORTIE - SHAFT : 2’’3/8API mâle - 2’’3/8API pin (autre sur demande - other on request) OPTION ROTOPERCUSSION - HYDRAULIC DRIFTER

Open the catalog to page 3

ZI du Chemin Vert - 8, route de Saint Hubert - LE PERRAY EN YVELINES Tel. +33 (0)1 34 57 86 90 - Fax. +33 (0)1 34 57 86 95 - Email : [email protected] www.emci-fr.com Les informations sont données à titre indicatif. Emci se réserve le dro it de les modifier sans avis préalable. Specifications are indicative. Emci reserves the right to modify them without prior notice Poids suivant options /Weight according to options : 2000—2500kg
