Crawler Drill Inova

Product catalog summary

Specifications:
The document describes a high-capacity crawler-mounted drill suitable for core drilling, water well drilling, and geothermal applications. It features a 110HP Deutz diesel engine with water cooling, a fuel tank capacity of 50 liters, and a hydraulic tank of 270 liters. The drill is equipped with a load-sensing pump for rotary operations and a DANFOSS PVG 32 hydraulic valve.

Undercarriage:
The drill is mounted on a rubber track crawler with remote control, having a width of 1800mm. An option for a steel track is available.

Frame and Stabilization:
The frame is made of welded steel with four hydraulic stabilizers. An optional pipe rack can be included.

Rotary Head:
The rotary head supports injection and rotopercussion with air/water swivel and heavy-duty gear transmission. Various configurations are available.

Mast:
The mast has a stroke of 3.40m, with translation through a hydraulic jack and chain. It offers a pull-up capacity of 3800kg and a pull-down capacity of 2500kg. The mast can be locked in the drilling position and features an extraction pull-up jack of 8000kg. A winch with a capacity of 1000kg is included, with an option for a wireline winch.

Clamp:
The drill includes a single or double hydraulic clamp with a maximum opening of 315mm.

Mud Pump:
The mud pump options include a screw pump with a capacity of 200l/mn at 25 bars and a piston pump with a capacity of 160l/mn at 25 bars. Other pumps are available on request.

Rotary Head Specifications:
HD model offers a maximum torque of 580 da.Nm and a speed of 740 rpm. HT07 model provides a maximum torque of 790 da.Nm and a speed of 150 rpm. The shaft is 2''3/8API pin, with other configurations available on request.

Additional Information:
The document notes that specifications are indicative and subject to change without prior notice. The weight of the drill varies between 7000 and 8500kg depending on options.

Catalog excerpts

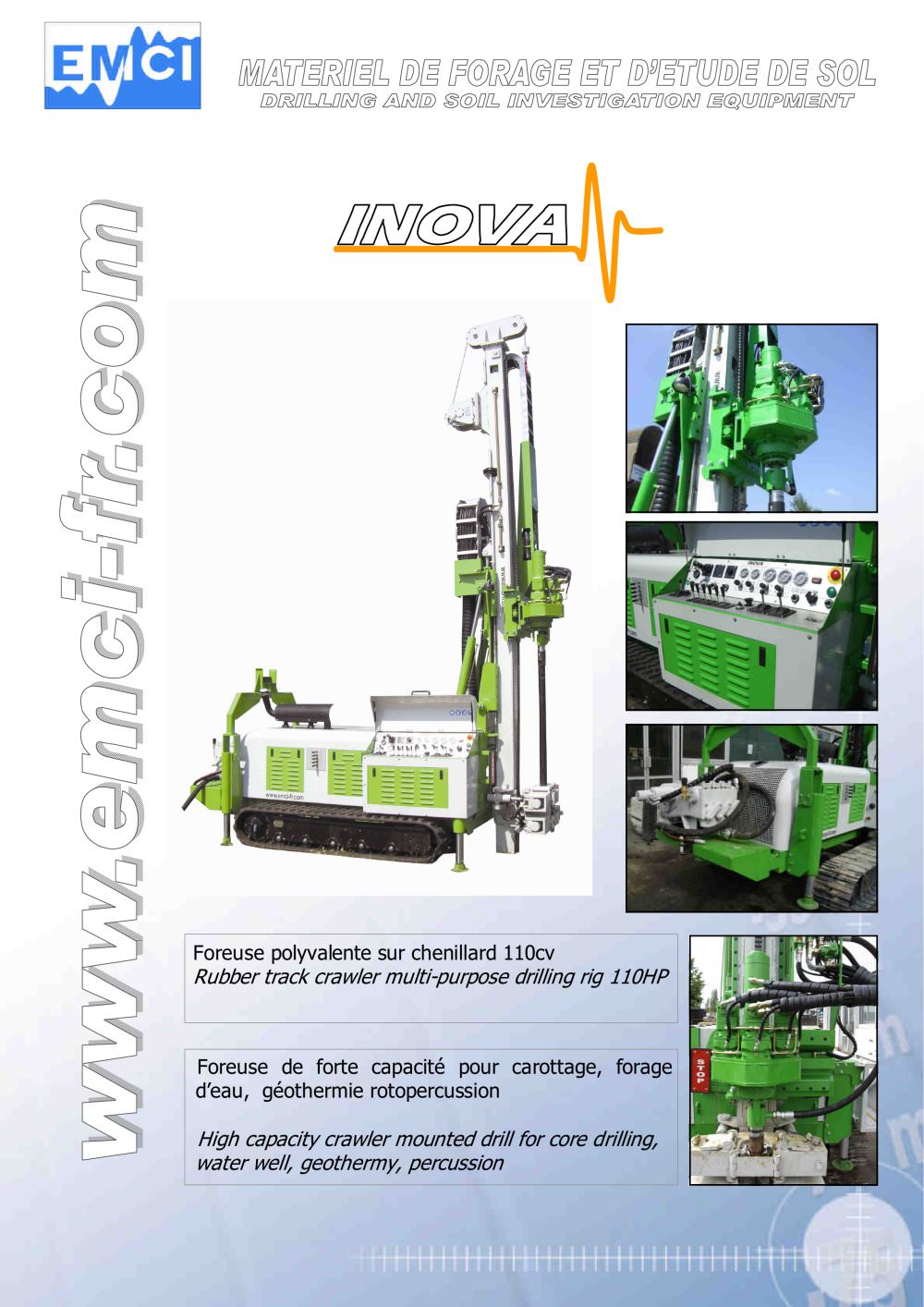

Foreuse de forte capacité pour carottage, forage d’eau, géothermie rotopercussion High capacity crawler mounted drill for core drilling, water well, geothermy, percussion Foreuse polyvalente sur chenillard 110cv Rubber track crawler multi-purpose drilling rig 110HP

Open the catalog to page 1

Version chenillard métallique / Steel crawler version Rack à tiges / pipe rack Pompe d’injection 200l/mn—45 bars / Inject ion pump 200l/mn—45 bars PORTEUR Chenillard radiocommandé à voie fixe Largeur : 1800mm Option : chenille métallique UNDERCARRIAGE Rubber track crawler with remote control Width : 1800mm Option : steel track GROUPE DE PUISSANCE Moteur 110cv Deutz refroidissement eau Réservoir carburant 50 litres Réservoir huile 270 litres Pompe LS sur rotation Distributeur DANFOSS PVG 32 POWER PACK Diesel Deutz engine 110HP water cooled Fuel tank : 50 liters Hydraulic tank 270 litres Load sensing...

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:14.00pt "Arial", sans-serif; } .font1 { font:15.00pt "Arial", sans-serif; } TETE ROTATION : HD ROTARYHEAD:HD COUPLE /TORQUEMAX VITESSE / SPEED MAX HD 580 da.Nm 740 tr/mn - rpm TETE ROTATION : HT07 ROTARYHEAD : HT07 COUPLE / TORQUE MAX VITESSE / SPEED MAX V. 315 790 da.Nm 150 tr/mn - rpm SORTIE - SHAFT : 2"3/8API mle - 2"3/8API pin (autre sur demande - other on request) OPTION ROTOPERCUSSION - HYDRAULIC DRIFTER Autres configurations possibles / other configuration available

Open the catalog to page 3

Les informat ions sont données à t itre indicat if. Emci se réserve le droit de les modifier sans avis préalable. Specificat ions are indicat ive. Emci reserves the right to modify them without prior notice ZI du Chemin Vert - 8, route de Saint Hubert - LE PERRAY EN YVELINES Tel. +33 (0)1 34 57 86 90 - Fax. +33 (0)1 34 57 86 95 - Email : [email protected] www.emci-fr.com Poids suivant options /Weight according to options : 7000—8500kg

Open the catalog to page 4
