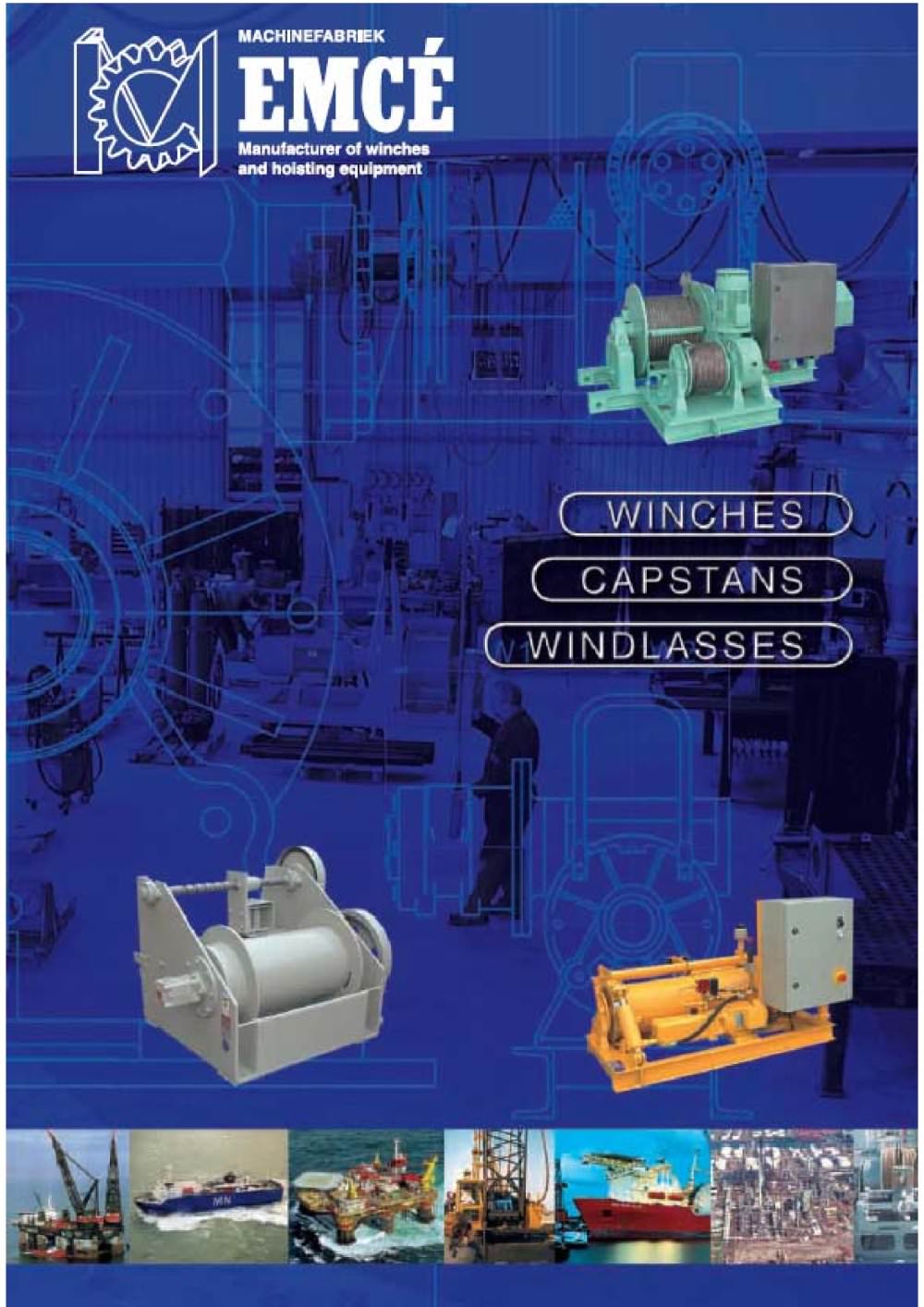

Full Brochure
Full Brochure
EMCÉ, established in 1933, initially focused on concrete mills and material lifts before specializing in winches in the 1960s. As part of the Stokvis Holding Group, EMCÉ is renowned for its winches, capstans, and windlasses, serving industries such as shipbuilding, offshore, and construction. The company prioritizes quality, performance, and safety, with a mission to design and manufacture custom-built winches.
EMCÉ offers a diverse range of winches, including electric, hydraulic, and pneumatic options, with capacities up to 120 tons. The product line includes worm gear and planetary gear winches, tailored to customer specifications, and used globally in various environments.
EMCÉ winches are utilized in sectors like theatres, construction, shipyards, power plants, and marine applications. Notable clients include Airbus, Shell, and the Swedish Coast Guard.
Winches are designed for a minimum lifespan of 10,000 hours, focusing on simplicity and efficiency. They comply with machinery directives and standards like EN 292-1 and EN 414. EMCÉ offers custom solutions considering factors like working load limit, cable choice, speed, power source, and environmental conditions.
EMCÉ winches feature self-braking worm gears, fail-safe braking systems, and various control options. Clutches and band brakes are available for specific applications, emphasizing safety and reliability.
EMCÉ employs advanced 3-D design software and maintains high-quality standards, including ISO 9001 certification. All winches undergo performance testing before shipment to ensure reliability and safety.
- Electric Wormgear Winches (MC Series): Designed for heavy-duty pulling and traversing up to 2800 kg, featuring self-braking worm gear transmission.
- Manual Wormgear Winches (M Series): For heavy-duty lifting and pulling up to 2800 kg using human power, with safety cranks and various drum configurations.
- Hydraulic Wormgear Winches (H Series): Suitable for lifting and pulling up to 3150 kg, offering modular construction for customization.
- Pneumatic Wormgear Winches (LV Series): Lightweight, explosion-proof winches ideal for compact hoisting gear environments.
- Planetary Compact Build Winches (MC Series): Utilizes a heavy-duty planetary gearbox within the drum core for space efficiency.
- Planetary Standard Build Winches (SB Series): Conventional construction suitable for various applications, featuring a heavy-duty planetary gearbox.
- Planetary Crane Winches (FD Series): Compact and lightweight, designed for cranes, davits, and derricks.
- Windlasses W/P/PW Series: Designed for intensive use, featuring robust construction with a self-braking gearbox.
- Diver Deployment A-frame with Winches DAW-1500: Designed for diving operations, capable of reaching depths of 70 meters.
- Mobile Winches MLV/ME/MDC Series: For rigging and temporary installations, featuring lightweight and compact designs.
EMCÉ offers a one-year warranty on its winches, ensuring they are free from defects in material and workmanship. Liability is limited to the purchase price of the product, excluding consequential damages.
EMCÉ offers a wide range of products and services, including various types of motors, gearboxes, controls, and maintenance services. For local dealer contact details, customers are advised to reach out to EMCÉ's export sales department.
Catalog excerpts
COMPANY PROFILE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 PRODUCT RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ABOUT WINCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....
Open the catalog to page 2
ENGINEERING Designing and building winches takes knowledge, innovation, a sense of quality and most important experience in the field. In her more than 40 years winch experience EMC has made these qualities her own. A well considered design and robust construction make for a long-lived and trouble free product. All winches are designed to have a lifetime of at least 10,000 (n COMPANY MISSION The primary mission of Machinefabriek EMCɉ b.v, is to design, manufacture and market winches & hoisting equipment based upon customer requirements (custom built), which have definite advantages in quality,...
Open the catalog to page 4
Compact WinchMC 311 H Hydraulic ManriderH 2000 MR >
Open the catalog to page 5
Clutches In general we use two types. Claw types: these cant be operated under load, so that the driveline must first be freed of the load, (for example using a band brake on the winch drum) before the clutch may be oper- Controls Electric: alongside the normal options of pushbuttons, direct reversing switches or remote controls (pendant or radio con- trolled), there are several options which may be useful or even necessary. These are; limit switches (to stop the winch when the drum is full or empty), electronic line pull limiter, variable speed, slack rope detection, constant tensioning, Eexd...
Open the catalog to page 7
Note Depending on local regulations options and requirements may be different. Cable guides For normal cable (6x36) the maximum advis- able fleet angle is 2 for smooth drums and 3ں for helical grooved drums. The following aid to determine the distance between the drum and sheave can be used for smooth drums; 20 x drum length. Or for grooved drums; 15 x drum length. For larger fleet angles a cable spooling device may be neces- sary.The grooving of a drum and a constant loadboth help a cable spool correctly on the winch drum. For pulling winches, when the cable may become slack, a pressure roll...
Open the catalog to page 8
Pressure rollerDrum guardSpindle limit switchGrooved drum Drum divider flangeEncoder + spindle limit switchClaw clutchFriction clutch Slack wire switchPneumatic spindle limit switchManual band brakeHydraulic operated band brake Pendant remote controlPneumatic control valveSpooling gearAdditional rope anchor Slip ringClassification certificates of LR,Manual emergency crank (onControl panel with frequency inBV, ABS, GL, DNV, etcelectric motorinverter 9 >
Open the catalog to page 9
Standard features: Available control options: ɕ Self braking worm gear or planetary geartransmissions IP 54 aluminium non braked motor 400VAC / 3 phase / 50 Hz. (440 / 3 / 60)Օ Steel sheaves Single layer 1 component conservation,colour BS 20 (Medium Blue) Օ Direct pendant remote control IP 65 withemergency stop (up to 1,5 kW 220 VAC / 1 phase or 2,2 kW 400 VAC / 3 phase) Control box IP 55 with pushbuttons andemergency stop built acc. to NEN 1010Օ Control box IP 55 with low voltage IP 65remote control built acc. to NEN 1010 Load limiter Օ Frequency inverter for variable speed con-trol Wireless...
Open the catalog to page 33
Standard features: ԕ Stainless steel slip rings (fibre optic or elec.) Stainless steel swivels Օ Spooling devices EtcՅ.. Self braking worm gear, helical bevel, plan-etary or slew gear transmissionsՕ IP 56 TENV braked motors 400 VAC / 3phase / 50 Hz (or 440/3/60) Radial piston air or hydraulic motors Օ Heavy duty construction Offshore multi layer 2 component conser-vation, colour BS 20 (Medium Blue) Available control options: Օ Control box IP 65 with pushbuttons andemergency stop built acc. to NEN 1010 Control box IP 66 with low voltage IP 65remote control built acc. to NEN 1010Օ Load limiters...
Open the catalog to page 41
SB 317 EBGS 45 T ELECTRIC WINCH FORNUCLEAR PLANT WITH SPOOLING GEAR - WALES UK SB 301 LPR1 1 T AIR WINCH FOR JORDANPETROLEUM REFINERY CO. SB 307/185 EVS 650 KG EEXD ELECTRICMANRIDING WINCHFORPOSCO STEELWORKS GASHOLDER - POHANGKOREA SB 315 HS 32 T HYDRAULIC WINCH WITHSPOOLING GEAR FOR NATIONALIRANIAN OIL TANKER CO.- SAS C 310 E 10 T ELECTRIC CAPSTAN FOR ALLSEAS - TOG MOR (BARGE) SB 315 HS 20 T HYDRAULIC WINCH COMPLEETWITH POWERPACK FOR CSODEEP BLUEђ - HUISMAN ITREC SB > 310 ECT 12.5 TON CONSTAN TEN-SION WINCH FOR CONOCO PHILLIPS MAGNOLIA TLP PROJECT SB 311 EBC 15 T ELECTRIC WINCHFOR PAKISTAN NAVY...
Open the catalog to page 52
SR 60 E 60 TON SLIPWAY WINCH FOR BLRT GROUP ESTONIA MC 313 HBCS 20 T HYDRAULIC TOWING WINCHFOR SWEDISH COASTGUARD SB 309 LPR5 7 T AIR WINCH WITH BANDBRAKE AND LOAD LIMITER FOR FRENCH NUCLEAR PLANT P 1000 H 1 T HYDRAULIC STAINLESSSTEEL WINDLASS FORSTEALTH SHIP SB 311 LPR6 13 T AIR WINCH WITH HAULING DRUM AND CLAW CLUTCH - HYUNDAI KOREA FD 305 EEXD 1500 KG EEXD ELECTRICWINCH FOR PHILLIPS EKOFISK PLATFORM SB310 HDG 10T HYDRAULIC WINCH FOR CASPIAN SEA DRILLING RIG - OKIOC DEUTAG SB 309 HBGPS > Note: This is only a comprehensive summary of winches delivered out ofthe more than 30,000 supplied over...
Open the catalog to page 53
Three-phase motors / Single-phase motors / DC-motorsBrake motors / Flameproof- / increased safety motors / Multiple speed motors / Customizing of motorsWorm gearboxes / In-line gearboxes / Bevel gearboxesParallel gearboxes / Planetary gearboxes Design and manufacturing of controls / DC-controls /Frequency inverters / Soft starters / Belt variatorsLinear drives / Spindle drives / Screw jacks / Slewingrings / Disc brakes / Shoe brakes / Push-Pull cablesRevision and maintenance on all of the aboveScissor-lifts / Goods-elevators / Pallet-trucks and Stackers / Manual handling devices / Hydraulic high...
