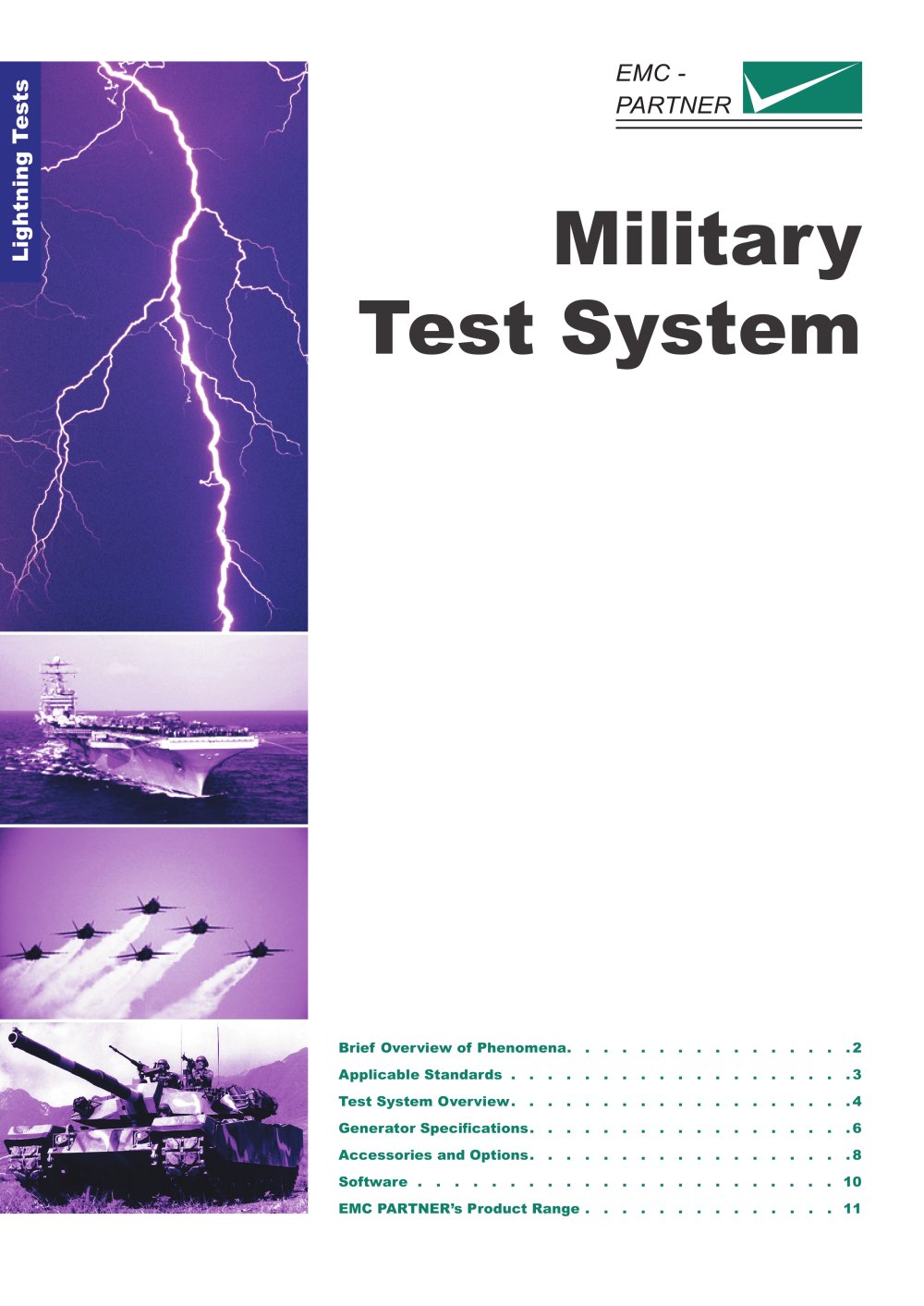

Lightning Tests: Military Test System 1 Military Test System Lightning Tests Brief Overview of Phenomena. . . . . . . . . . . . . . . . 2 Applicable Standards . . . . . . . . . . . . . . . . . . . 3 Test System Overview. . . . . . . . . . . . . . . . . . . 4 Generator Specifi cations. . . . . . . . . . . . . . . . . . 6 Accessories and Options. . . . . . . . . . . . . . . . . . 8 Software . . . . . . . . . . . . . . . . . . . . . . . 10 EMC PARTNER’s Product Range . . . . . . . . . . . . . . 11

2 Lightning Tests: Military Test System Brief Overview of Phenomena - Damped Sinusoidal Transients (CS116) A selection of damped sinusoidal transients are used to simulate oscillations arising from excitation of the platform wiring due to incidence of lightning, EMP or platform switching. Typical frequencies are in the range from 10’s of kHz to 100’s of MHz. - ESD ESD can result from charging of personnel or equipment. Resultant waveforms and test levels are dependant on location. ESD impulses are used to ensure equipment is not damaged during maintenance procedures. Testing of service...

Lightning Tests: Military Test System 3 Applicable Standards - EMP These events result from nuclear detonations. They are characterised by very steep risetime pulses of several hundred kilovolts. Military systems should be hardened to withstand these pulses. Department of Defence MIL-STD-461F (2007): Requirements for the control of Electromagnetic Interference characteristics of subsystems and equipment. MIL-STD-883E (1999): Test method standard Microcircuits. MIL-STD-331B (1989): Fuse and Fuse components. MIL-STD-750D (1995): Test Method Standard Semiconductor devices. MIL-STD-464 (1997):...

4 Lightning Tests: Military Test System Test System Features - Modular construction allows for future expansion - Clean reproducible waveforms - Simple operation - Parameter change during operation (+/-) - Internal program memory - Electronic polarity change - Compact designs - Fulfi lls ALL transient requirements - Remote control and software upgrade through standard interface - Full range of accessories - 2 year warranty User Benefi ts The technical excellence and many unique features of EMC PARTNER military generators translate directly into benefi ts for the user: - Cost effective...

Lightning Tests: Military Test System 5 Remote control of EMC PARTNER military test systems is possible using either the EMC PARTNER TEMA or GENECS-MIG software packages. A wide range of accessories are available to facilitate testing. Coupling transformers for cable serial injection and test probes for parallel injection complete the system. System Flowcharts The following fl owcharts illustrate EMC PARTNER equipment confi gurations necessary to perform transient tests in accordance with military and avionic standards. MIG2000-6 - Serial Coupling The CN-MIG-BT and CN-MIG-BT2 couplers are...

6 Lightning Tests: Military Test System FX-CS106 Voltage range 100V up to 500V Rise time 1.5ìs Fall time 3.5ìs Duration 5ìs Repetition rate 10Hz (max) CS115REC Current range into 100ohm 1A up to 10A Rise time < 2ns Fall time < 2ns Duration 30ns Repetition rate 30Hz (max) Generator Specifi cations MIG2000-6 (MIL-STD-461 Modules) MIG1212EMP MIG1212-EMP EUT TEMA TEST MANAGER customized solution DN-MIG12-16 MIG1212-EMP NW-EUT-V ESD3000 X:\Various\Flowcharts\ESD3000.flo NW July 14. 2004 ESD3000 Immunity DATABASE on EMCP Website easy use, no test programming, just carry out tests EUT TEMA TEST...

Lightning Tests: Military Test System 7 CS116-10K10M - 10kHz Current range into 100ohm 0.02A up to 0.2A Frequency 10kHz Damping 4th peak 40 to 50% Repetition rate 2Hz (max) - 100kHz Current range into 100ohm 0.2A up to 2A Frequency 100kHz Damping 4th peak 40 to 50% Repetition rate 2Hz (max) - 1MHz Current range into 100ohm 1A up to 15A Frequency 1MHz Damping 4th peak 40 to 50% Repetition rate 2Hz (max) - 10MHz Current range into 100ohm 2A up to 12A Frequency 10MHz Damping 4th peak 40 to 50% Repetition rate 2Hz (max) CS116-30M100M - 30MHz Current range into 100ohm 2A up to 12A Frequency...

8 Lightning Tests: Military Test System Accessories and Options MIG2000-6 ESD3000 Please refer to ESD Test System brochure for further information. DO160 section 19 X DO160 section 17 X X X X X Airbus ABD0100.1.8.1 X X X X X Euro Fighter CS-EFA-4 X X X X X X X MIL-STD-1275 X MIL-STD-461 CS116 100MHz X X X X MIL-STD-461 CS116 30MHz X X X X MIL-STD-461 CS116 10MHz X X X X MIL-STD-461 CS116 1MHz X X X X MIL-S TD-461 CS116 100kHz X X X X MIL-STD-461 CS116 10kHz X X X X MIL-STD-461 CS115 X X X X MIL-STD-461 CS106 X X X X Plug-ins FX-CS106 CS115REC CS116-10K10M CS116-30M100M NATO-SLOW-10u...

Lightning Tests: Military Test System 9 VERI5 Coaxial high voltage termination and integrated divider with 5ohm. VERI5 Example of a plug-in Plug-ins Enhance MIG2000-6’s capability by including additional waveforms. New plug-ins are automatically recognised and controlled by the MIG2000-6 fi rmware. DC-S17CL Set of 4 boxes for Voltage Spikes Testing according to DO-160-S17 and MIL-STD-461E CS106, consisting of: - two decoupling boxes “PARALLEL INJECTION”. Can be used separately for 230V, 50/60Hz, 10A or connected in parallel for max. 115V, 400Hz, max. 10A - two decoupling boxes “SERIAL...

10 Lightning Tests: Military Test System For remote control of EMC PARTNER military generators, one of the following software packages is needed: - GENECS-MIG. This is a relatively simple program that reproduces generator front panel functions on a PC. In addition to remote programming and control of the generators, test report information is available to word processing or other evaluation programs such as EXCEL. - TEMA Software. Comfortable control of EMC PARTNER generators from a PC. Enables several generator types to be included in the same test sequence. Generates an enhanced level of...

Lightning Tests: Military Test System 11 Hidden Heading to provoke a TOC entry EMC PARTNER’s Product Range The Largest Range of Impulse Test Equip ment up to 100kA and 100kV. Lightning Tests A range of test equipment and accessories for aircraft, military and telecom applications. Complete solutions including all hardware and software to meet the requirements of RTCA / EUROCAE DO160 / ED14 for indirect lighting on aircraft systems, MIL-STD-461 tests CS106, CS115, CS116, for military vehicles, ITU-T .K44 basic and enhanced tests for impulse, power contact and power induction, FCC part 68 for...
