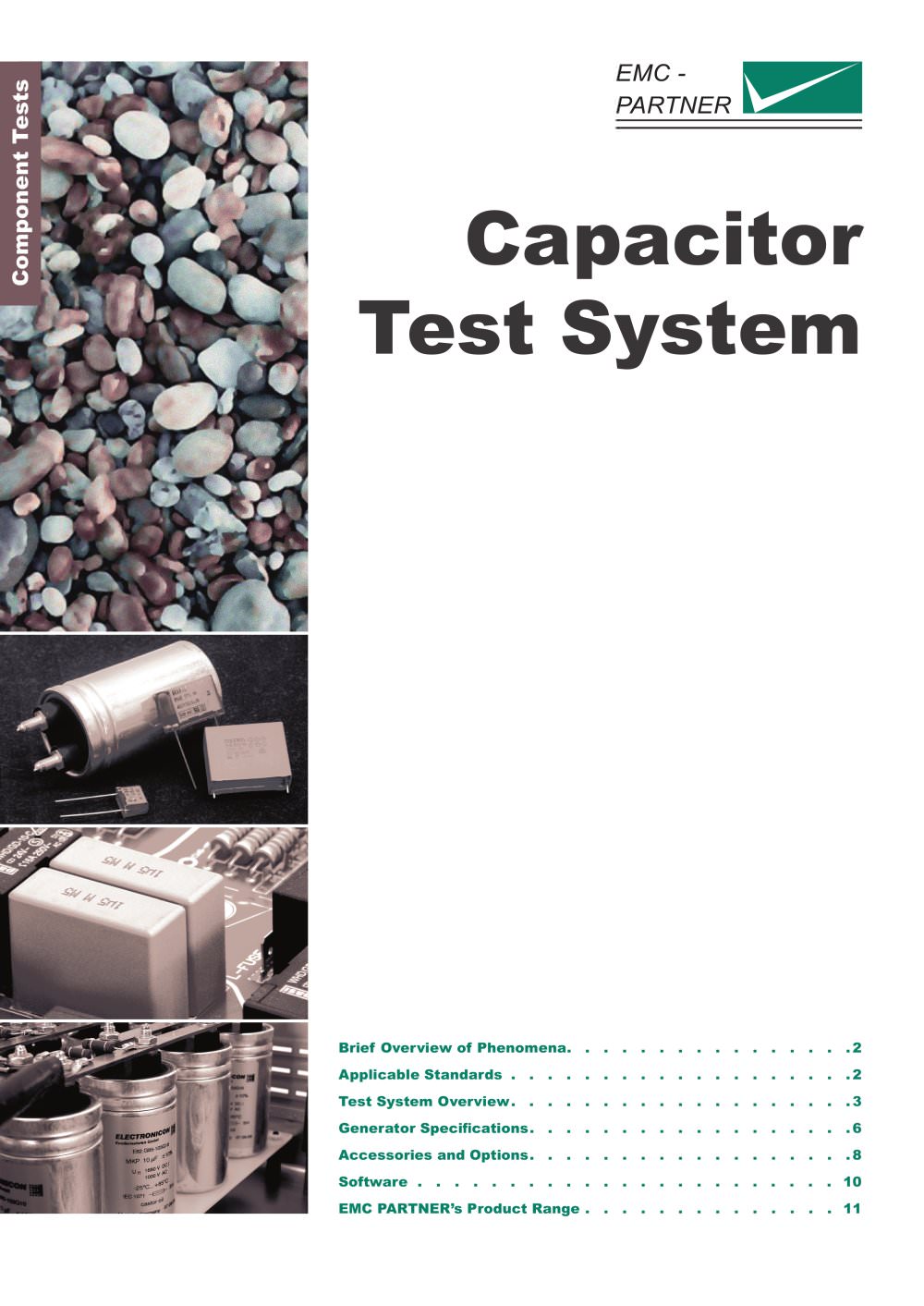

Component Tests: Capacitor Test System 1 Component Tests Capacitor Test System Brief Overview of Phenomena. . . . . . . . . . . . . . . . 2 Applicable Standards . . . . . . . . . . . . . . . . . . . 2 Test System Overview. . . . . . . . . . . . . . . . . . . 3 Generator Specifi cations. . . . . . . . . . . . . . . . . . 6 Accessories and Options. . . . . . . . . . . . . . . . . . 8 Software . . . . . . . . . . . . . . . . . . . . . . . 10 EMC PARTNER’s Product Range . . . . . . . . . . . . . . 11

2 Component Tests: Capacitor Test System Brief Overview of Phenomena International Electrotechnical Committee (IEC) IEC 60060-1 (1989). High-voltage test techniques. Part 1: General defi nitions and test requirements. IEC 60384-1: (1999). Fixed capacitors for use in electronic equipment - Part 1: Generic specifi cation. IEC 60384-14: (2005). Fixed capacitors for use in electronic equipment - Part 14: Sectional specifi cation: Fixed capacitors for electromagnetic interference suppression and connection to the supply mains. Applicable Standards Long wires to sensors or power supplies are very often...

Component Tests: Capacitor Test System 3 Test System Overview Test System Features The Capacitor Test System has many unique and outstanding features: - Up to 8kV impulse voltage levels - Up to 825VRMS for active fl ammability tests - AC voltage adjustment in 1V steps - Impulse circuits changed to match capacitor load - All parameters on one screen - Parameter ramp feature - Internal program memory - Backlit LCD display - Electronic polarity change - Semiconductor switches - Compact design - Fulfi ls ALL standard requirements - Remote control and software upgrade through standard interface -...

4 Component Tests: Capacitor Test System MIG1212CAP — fully automatic test system MIG1803CAP with TC-MIG24F on top - MIG0603CAP Generates the impulse voltage 1.2/50ìs up to 6kV for testing capacitors up to 10ìF. Three categories are defi ned for X capacitors: X1 (2.5 to 4kV), X2 (up to 2.5kV) and X3 (up to 1.2kV). MIG0603CAP is optimized to meet these requirements. The single high voltage output can be extended with a multiplexer to automatically test 8 capacitor samples without the need of operator intervention. - MIG1212CAP Generates a 1.2/50ìs voltage impulse up to 12kV for testing capacitors...

Component Tests: Capacitor Test System 5 Impulse Voltage Tests - Y Class with MIG1212CAP MIG1212CAP TEMA TEST MANAGER customized solution MIG Option IEC60384-14 TEK DSO TC-MIG24 DUT-MUX Impulse Voltage Tests - Y class SMD Capacitor Adaptor Voltage Current Active Flamability Tests with MIG1803CAP X:\Various\Flowcharts\MIG1803CAPasdf.flo NW September 30. 2006 MIG1803CAP TEMA TEST MANAGER customized solution MIG Option IEC60384-14 TEK DSO TC-MIG24F MIG option EUT SET Active Flamability Tests SMD Capacitor Adaptor Voltage Current

6 Component Tests: Capacitor Test System MIG0603CAP CT = 250nF Voltage range 0.5 up to 6kV Voltage increment 1V steps Impulse capacitor 0.25ìF Energy at 6kV 4.5J Series resistance 27 to 62ohm Pulse front time 0 to 27nF 1.2ìs Pulse duration 0 to 27nF 50ìs Overswing < 5% Pulse repetition at Vmax up to 4 per minute Polarity positive, negative, alternating Programmable parameter ramps voltage, synchronisation, polarity CT = 20ìF Voltage range 0.5 up to 6kV Voltage increment 1V steps Impulse capacitor 20ìF Energy at 6kV 360J Series resistance 3 to 25ohm Pulse front time 0 to 120nF 1.2ìs Pulse duration...

Component Tests: Capacitor Test System 7 CT = 20ìF Voltage range 0.5 up to 12kV Voltage increment 1V steps Impulse capacitor 20ìF Energy at 6kV 1440J Pulse front time 0 to 27nF 1.2ìs Pulse duration 0 to 27nF 50ìs Overswing < 10% Pulse repetition up to 6 per minute Polarity positive, negative, alternating Programmable parameter ramps voltage, synchronisation, polarity Combination Wave (Inductance Tests) Voltage range 0.5 up to 12kV Voltage increment 1V steps Impulse capacitor 20ìF Energy at 12kV 1,440J Source impedance 4ohm Pulse front time 1.2ìs Pulse duration 50ìs (variable with load inductance)...

8 Component Tests: Capacitor Test System TC-MIG24F A test cabinet for EUT with maximum dimensions 12 x 15 x 28cm. Can be used together with MIG OPTION EUT SET and MIG1803CAP. The test cabinet includes a glass cover to contain fl ames, should the capacitors start to burn. TC-MIG24F is linked to the MIG1803CAP safety circuit. Opening the test cabinet, disables test voltages. Safety circuit status is indicated by red and green lamps in the test cabinet. TC-MIG24F MIG EUT-SET An eight channel multiplexer that can be used together with the MIG1803CAP. Special construction ensures the MIG OPTION EUT...

Component Tests: Capacitor Test System 9 SOFTW IEC60384-14 This is a complete package to fully automate X and Y capacitor testing. It includes a PC with TEMA and the module “Insulation test on X and Y capacitors” pre-loaded, a two channel Digital Storage Oscilloscope (DSO) and all connections necessary to perform measurement and testing. SOFTW IEC60384-14 CN-MIG-SMD Adapter with PCB panel to fifi t Surface Mount Device (SMD) capacitors of different sizes. Can be used with MIG0603CAP, MIG1212CAP and MIG1803CAP. CN-MIG-SMD

10 Component Tests: Capacitor Test System Predefined Test Routines For remote control of Capacitor Test systems, an OPTICAL LINK and one of the following software packages is needed: - GENECS-MIG: This is a relatively simple program that reproduces generator front panel functions on a PC. In addition to remote programming and control of the generators, test report information is available to word processing or other evaluation programs such as EXCEL. - TEMA Software: Comfortable control of EMC PARTNER generators from a PC. Enables up to four generator types to be included in the same test sequence....

Component Tests: Capacitor Test System 11 Hidden Heading to provoke a TOC entry EMC PARTNER’s Product Range The Largest Range of Impulse Test Equip ment up to 100kA and 100kV. Lightning Tests A range of test equipment and accessories for aircraft, military and telecom applications. Complete solutions including all hardware and software to meet the requirements of RTCA / EUROCAE DO160 / ED14 for indirect lighting on aircraft systems, MIL-STD-461 tests CS106, CS115, CS116, for military vehicles, ITU-T .K44 basic and enhanced tests for impulse, power contact and power induction, FCC part 68 for...
